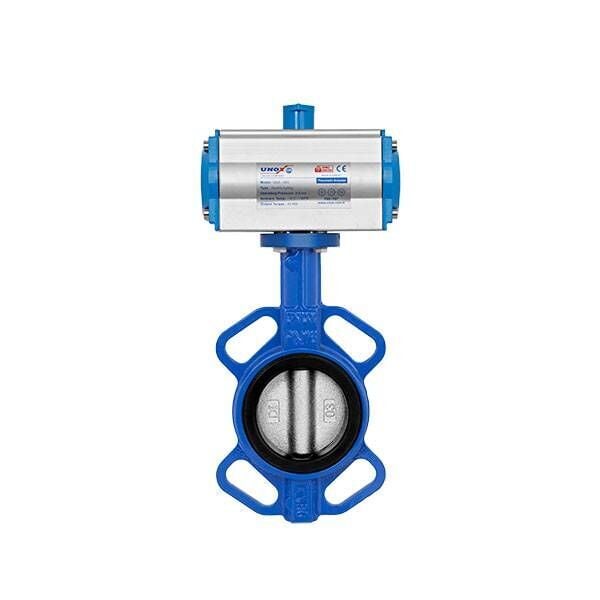

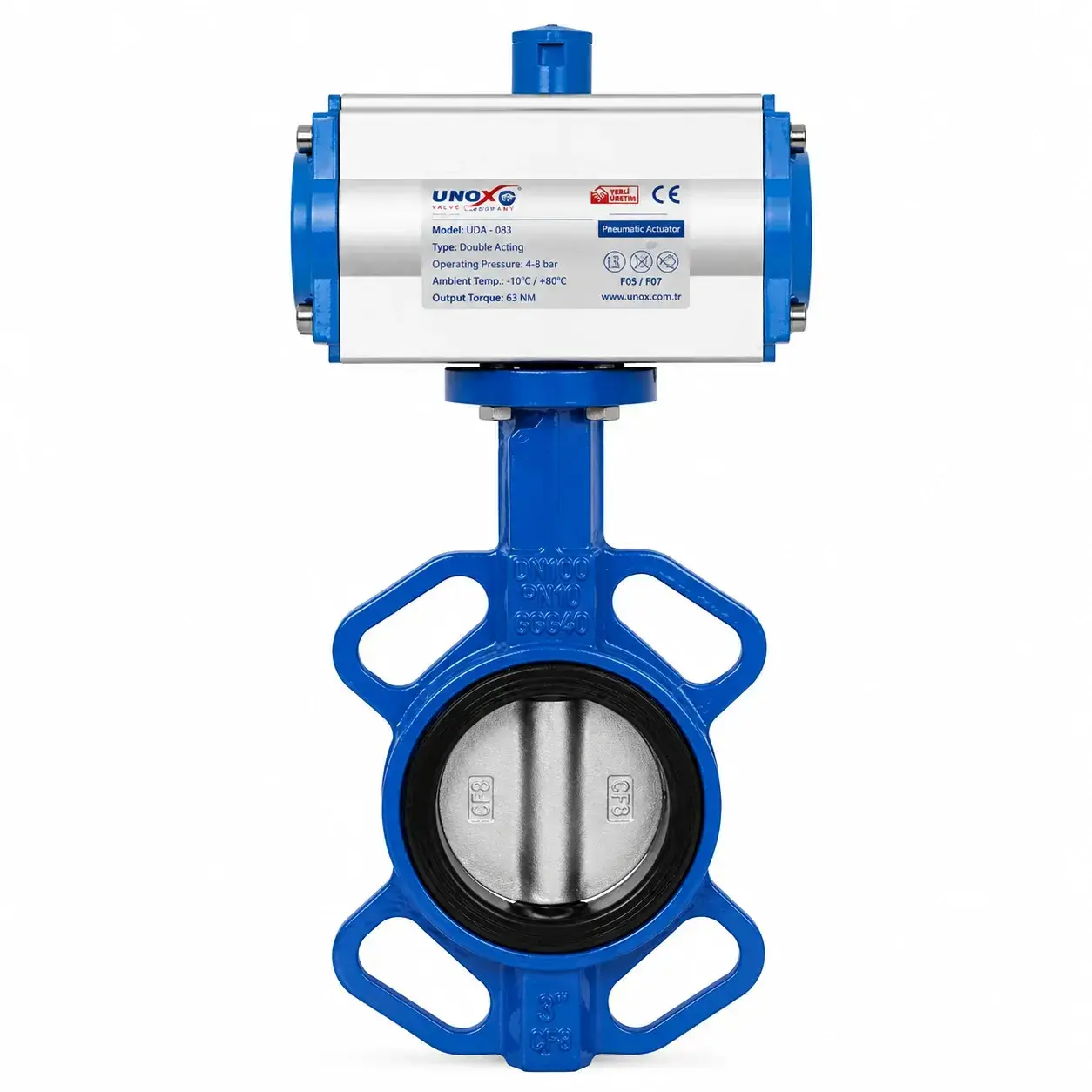

UNOX Wafer Type Double Acting Pneumatic Actuator Stainless Steel Butterfly Valve

What is a Pneumatic Actuator Wafer Type Butterfly Valve?

A butterfly valve is used to control the flow of liquids or gases such as water, air, or gas. It consists of a disc that rotates around an axis. When the disc is open, it allows flow; when closed, it restricts or stops the flow. Thanks to this simple mechanism, butterfly valves are widely used in industrial systems where large-diameter pipelines are involved.

These valves are commonly used in water and non-corrosive fluid applications, especially in narrow installation areas. They are wafer and lug type valves installed between two flanges and operated by compressed air via a pneumatic actuator. They are available in various connection sizes and may include brass or stainless-steel discs depending on the application.

Butterfly Valve Product Features

• Body: GGG-40 ductile iron
• Disc: SS304 stainless steel
• Stem: Stainless steel
• Temperature range: –10°C / 110°C
• Seal: EPDM
• Size range: DN40 (1½”) – DN300 (12”)

Butterfly Valve Applications

• Heating, ventilation, and air conditioning (HVAC) systems
• Water treatment and distribution systems
• Mining industry
• Shipbuilding and drilling facilities
• Food and chemical processing plants
• Firefighting systems
• Water, seawater, dust, gas, wastewater, and air applications

Control Types of Pneumatic Actuated Lug Type Valves

• On-Off control
• Modulating (proportional) control

Butterfly Valve Construction

• Aluminum extrusion body with high corrosion resistance on both inner and outer surfaces, produced with precision machining for long life and low friction
• Compact symmetrical pistons made of special aluminum alloy, allowing easy assembly and reverse operation by repositioning pistons
• High-quality corrosion-resistant steel pinion designed for 45°–90° installation flexibility and synchronized stroke movement
• Industrial-grade engineering plastic bearing elements that reduce friction and wear for fast and reliable operation
• Precision-machined modular gears ensuring silent and efficient operation between piston and pinion
• Stainless steel fastening elements providing long-term corrosion resistance
• Fully compliant with ISO 5211, DIN 3337, and VDI/VDE 3845 NAMUR standards, allowing easy installation and interchangeability of solenoids, limit switches, and other accessories
