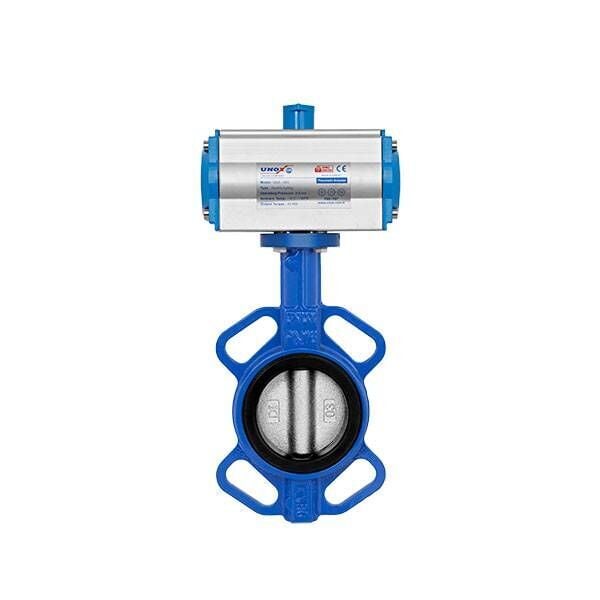

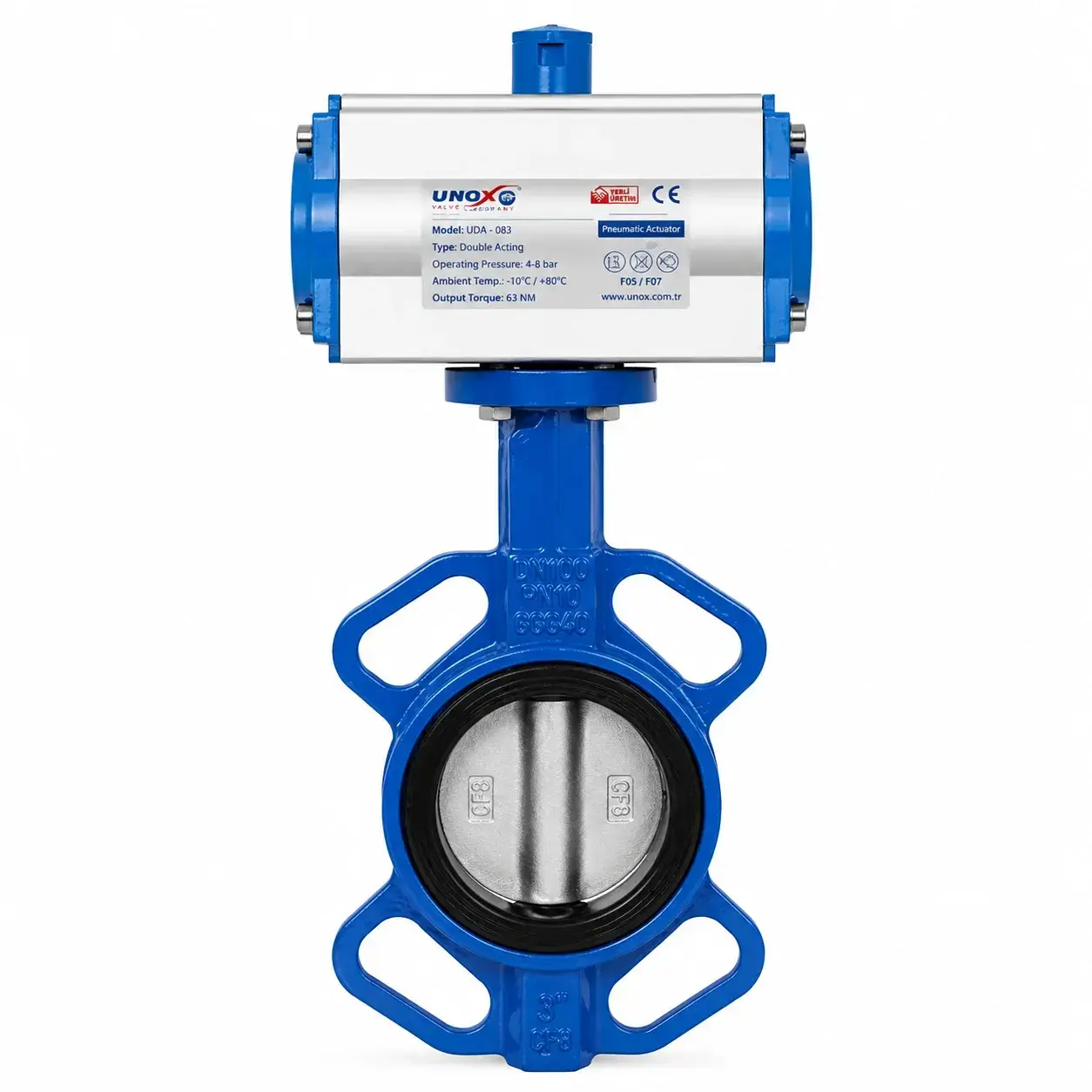

UNOX Wafer Type Double Acting Pneumatic Actuator Nickel Butterfly Valve
What is a Pneumatic Actuator Wafer Type Butterfly Valve?
A butterfly valve is used to control the flow of liquids or gases such as water, air, or gas. It consists of a disc that rotates around an axis. When one side of the disc is open, the other side restricts the flow, allowing flow control. Butterfly valves are generally used for large-diameter pipes or hoses and are commonly preferred in facilities, factories, and industrial plants for controlling fluids such as water, gas, or air.
These are wafer and lug type valves installed between two flanges, used in narrow installation spaces, typically for water and non-corrosive fluid applications. They are driven by compressed air through a pneumatic actuator and are available in different connection diameters. They may feature brass or stainless steel discs depending on the application.
Butterfly Valve Product Features
- Body: GGG-40 ductile iron
- Disc: SS304 stainless steel
- Stem: Stainless steel
- Temperature range: –10°C / 110°C
- Seal: EPDM
- Size range: DN40 (1½”) – DN300 (12”)
Butterfly Valve Applications
- Heating, ventilation, and air conditioning (HVAC) systems
- Water treatment and distribution systems
- Mining industry
- Shipbuilding and drilling facilities
- Food and chemical industries
- Firefighting systems
- Water, seawater, dust, gas, wastewater, and air applications
Control Types of Pneumatic Actuated Lug Type Valves
- On-Off control
- Modulating (proportional) control
Butterfly Valve Construction
- Aluminum extrusion body with high corrosion resistance on inner and outer surfaces, precision-machined for low friction and long service life
- Compact symmetrical pistons made from special aluminum alloy, allowing easy installation and reverse operation by changing piston positions
- High-quality corrosion-resistant steel pinion enabling installation at different angles (45°–90°) and compatible stroke movement
- Industrial-grade plastic bearing elements minimizing friction and wear, ensuring fast operation
- Precision-machined modular gears for smooth, quiet, and efficient operation between piston and pinion
- Stainless steel fastening elements for long-term corrosion resistance
- Fully compliant with latest specifications; compatible with ISO 5211, DIN 3337, and VDI/VDE 3845 NAMUR standards, allowing easy installation and interchangeability of accessories such as solenoid valves and limit switches
