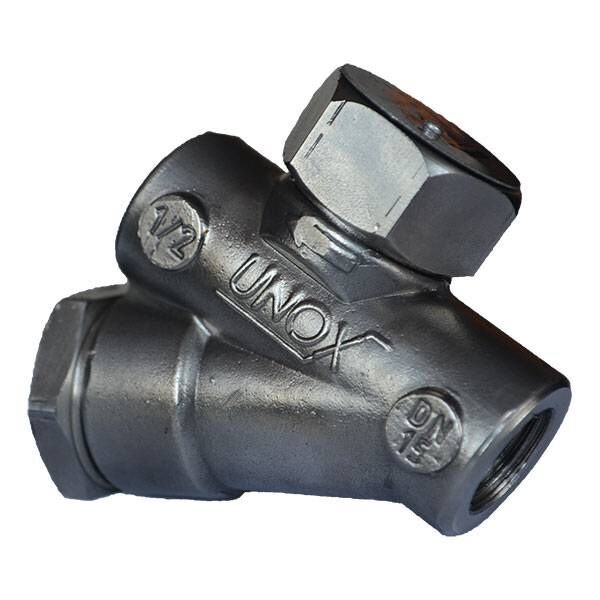

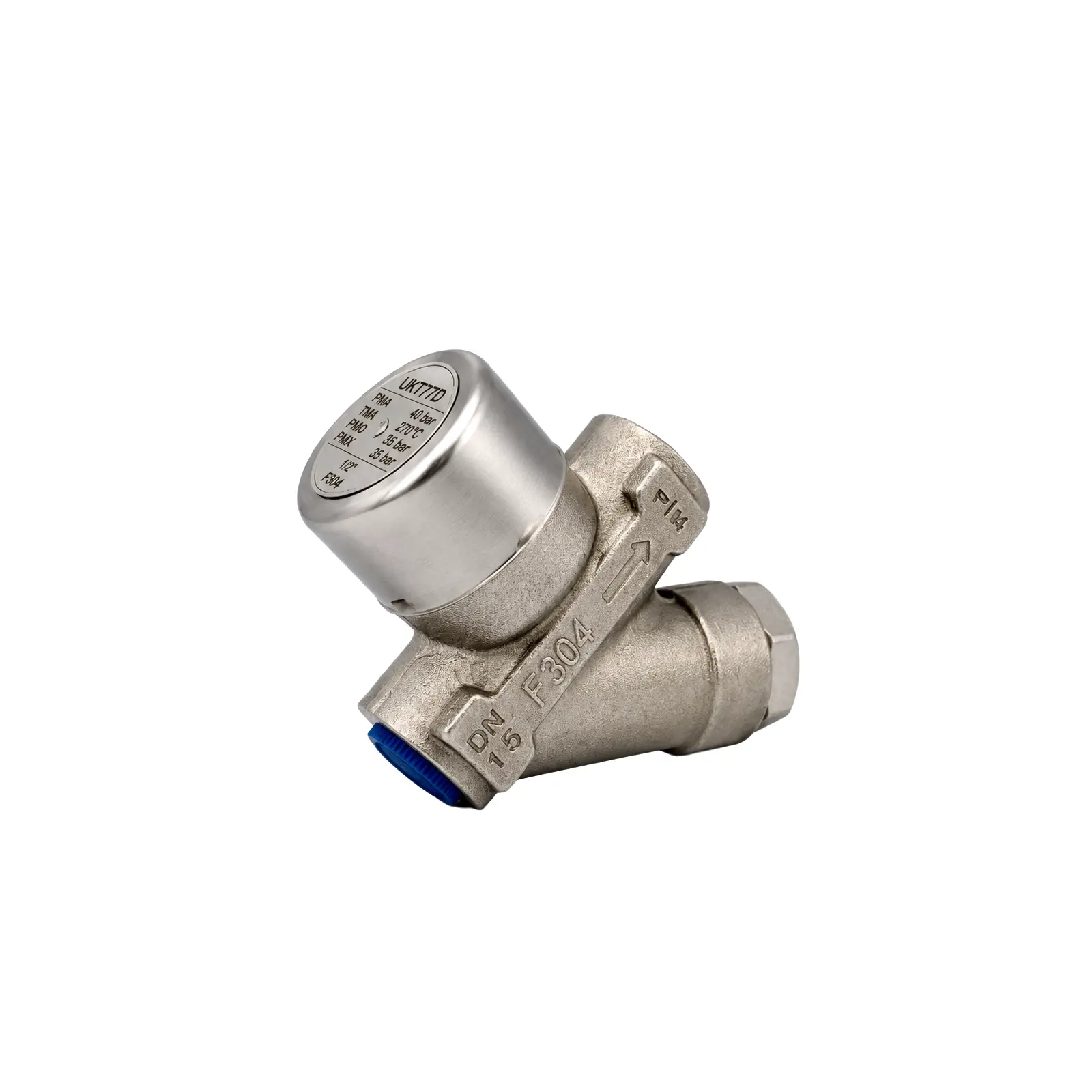

Unox Thermodynamic Stainless Steel Steam Trap

Thermodynamic Stainless Steel Steam Trap Applications

Thermodynamic steam traps are widely used in various industrial and commercial applications, including steam heating systems, process plants, and power stations. They are an essential component in these systems as they help maintain efficiency and effectiveness by removing condensate and steam as needed.

Thermodynamic Stainless Steel Steam Trap Product Features

Model: UKT – 77 D
Size: 1/2” – 3/4” – 1”
Body: ASTM A743 GrCA40F
Strainer Disc Seat: 420 Stainless Steel
Max. Operating Pressure: 40 BAR
Max. Operating Temperature: 400 °C
Min. Operating Pressure: 0.3 BAR
Connection: BSP or NPT thread optional

Advantages of Thermodynamic Stainless Steel Steam Trap

• Can operate across the entire working range without internal adjustments or modifications.
• Compact, simple, lightweight, and offers a high condensate capacity for its size.
• Suitable for use in high-pressure and superheated steam and is unaffected by water hammer or vibration.
