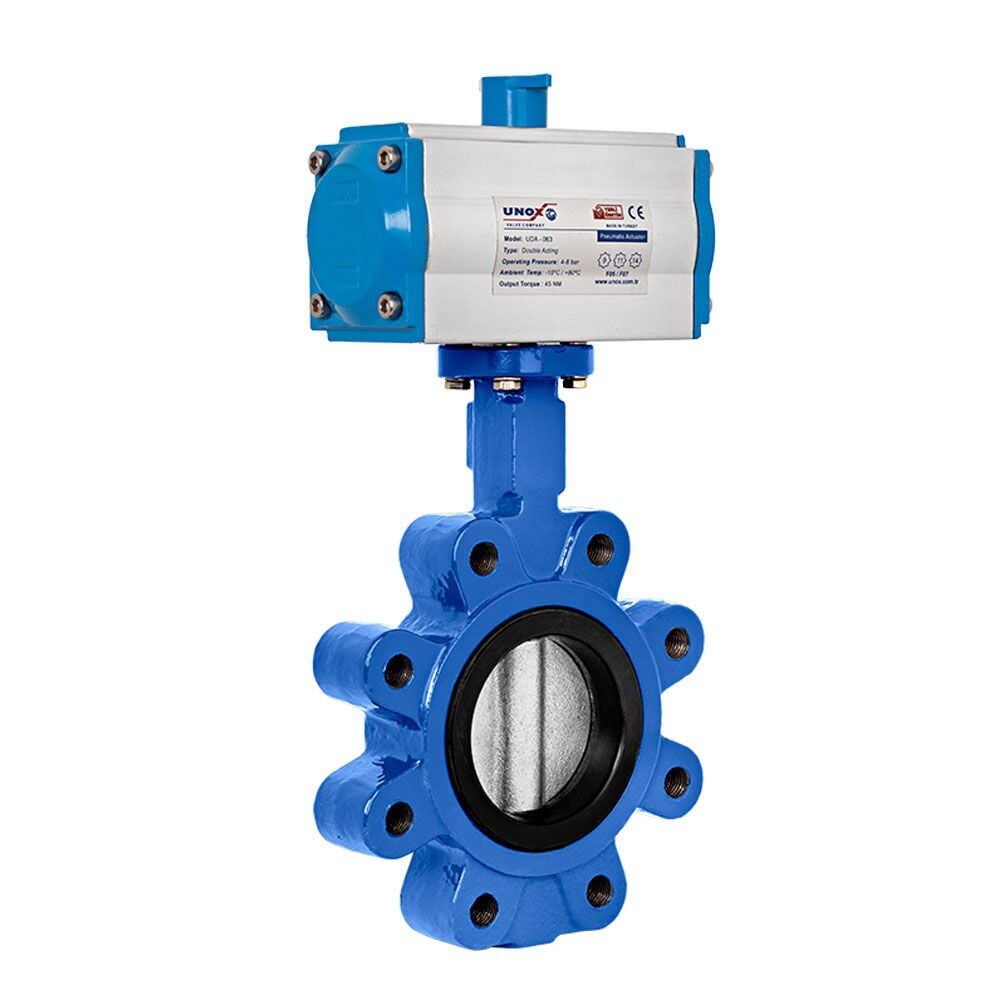

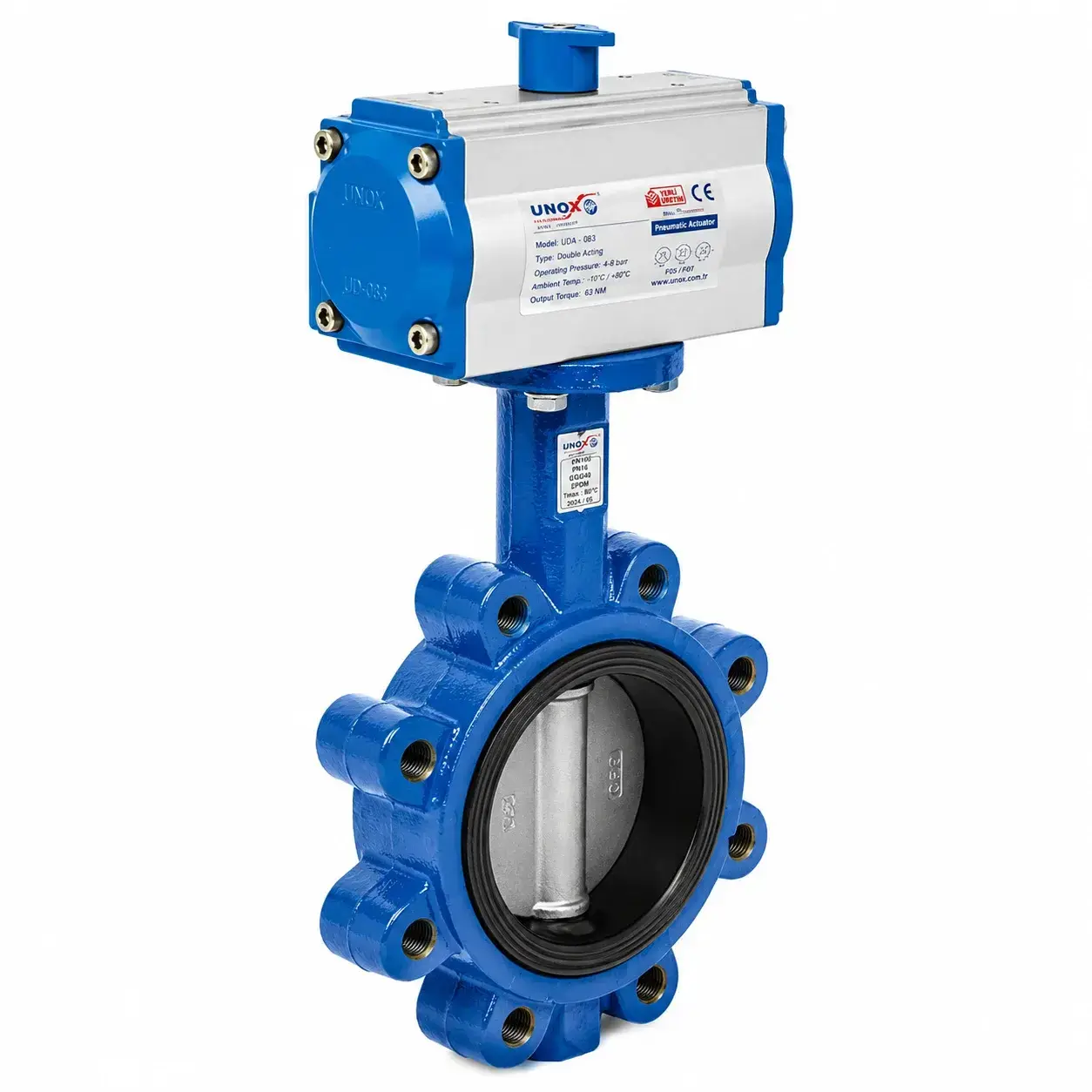

UNOX Lug Type Double Acting Pneumatic Actuator Stainless Steel Butterfly Valve
What is a Pneumatic Actuator Lug Type Butterfly Valve?
A butterfly valve is used to control the flow of liquids or gases such as water, air, or gas. It consists of a disc that rotates around an axis. When the disc is open, it allows flow, and when closed, it restricts or stops the flow. Thanks to this simple operating principle, butterfly valves are widely used in large-diameter piping systems in industrial facilities.
Pneumatic actuator lug type butterfly valves are designed for water and non-corrosive fluid applications, especially in narrow installation areas. They are lug and wafer type valves installed between two flanges and operated by compressed air through a pneumatic actuator. These valves are available in different connection sizes and disc material options such as brass or stainless steel, depending on the application requirements.
Butterfly Valve Product Features
- Body: GGG-40 ductile iron
- Disc: AISI316, AISI304, AL-BR
- Stem: Stainless steel
- Temperature range: –10°C / 110°C
- Seal: EPDM
Butterfly Valve Applications
- Heating, ventilation, and air conditioning (HVAC) systems
- Water treatment and distribution systems
- Mining industry
- Shipbuilding and offshore facilities
- Food and chemical processing plants
- Firefighting systems
- Water, seawater, dust, gas, wastewater, and air applications
Control Types of Pneumatic Actuated Lug Type Valves
- On-Off control
- Modulating (proportional) control
Butterfly Valve Construction
- Aluminum extrusion body with high corrosion resistance on both inner and outer surfaces, precision-machined for long service life and low friction
- Compact symmetrical pistons made from special aluminum alloy, allowing easy installation and reverse operation by repositioning piston elements
- High-quality corrosion-resistant steel pinion designed for 45°–90° installation flexibility and synchronized movement
- Industrial-grade plastic bearing elements that minimize friction and wear for fast operation
- Precision-machined modular gears ensuring smooth, silent, and efficient operation
- Stainless steel fastening elements for long-term durability and corrosion resistance
- Fully compliant with ISO 5211, DIN 3337, and VDI/VDE 3845 NAMUR standards, allowing easy mounting of solenoids, limit switches, and accessories
Conclusion
Pneumatic actuator lug type butterfly valves are reliable, durable, and highly efficient solutions for industrial flow control systems. Their robust construction and compatibility with automation systems make them ideal for modern process applications.
