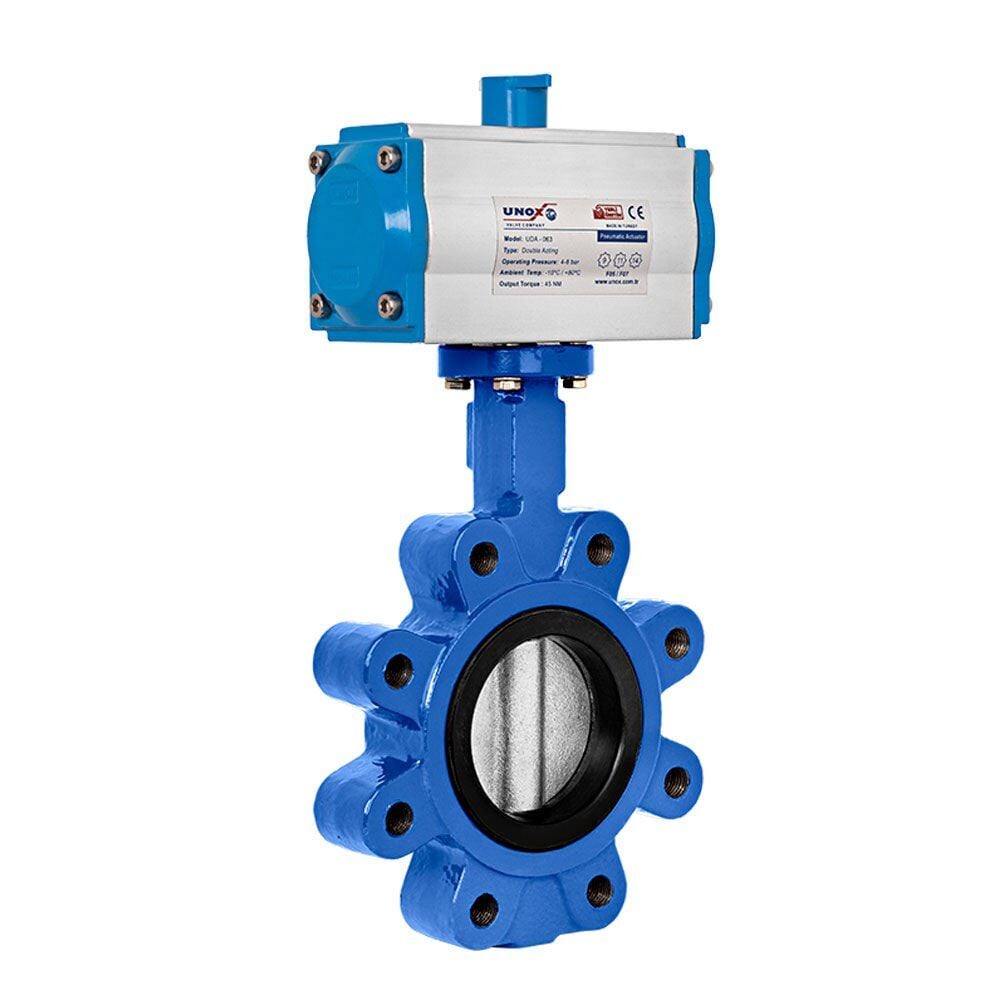

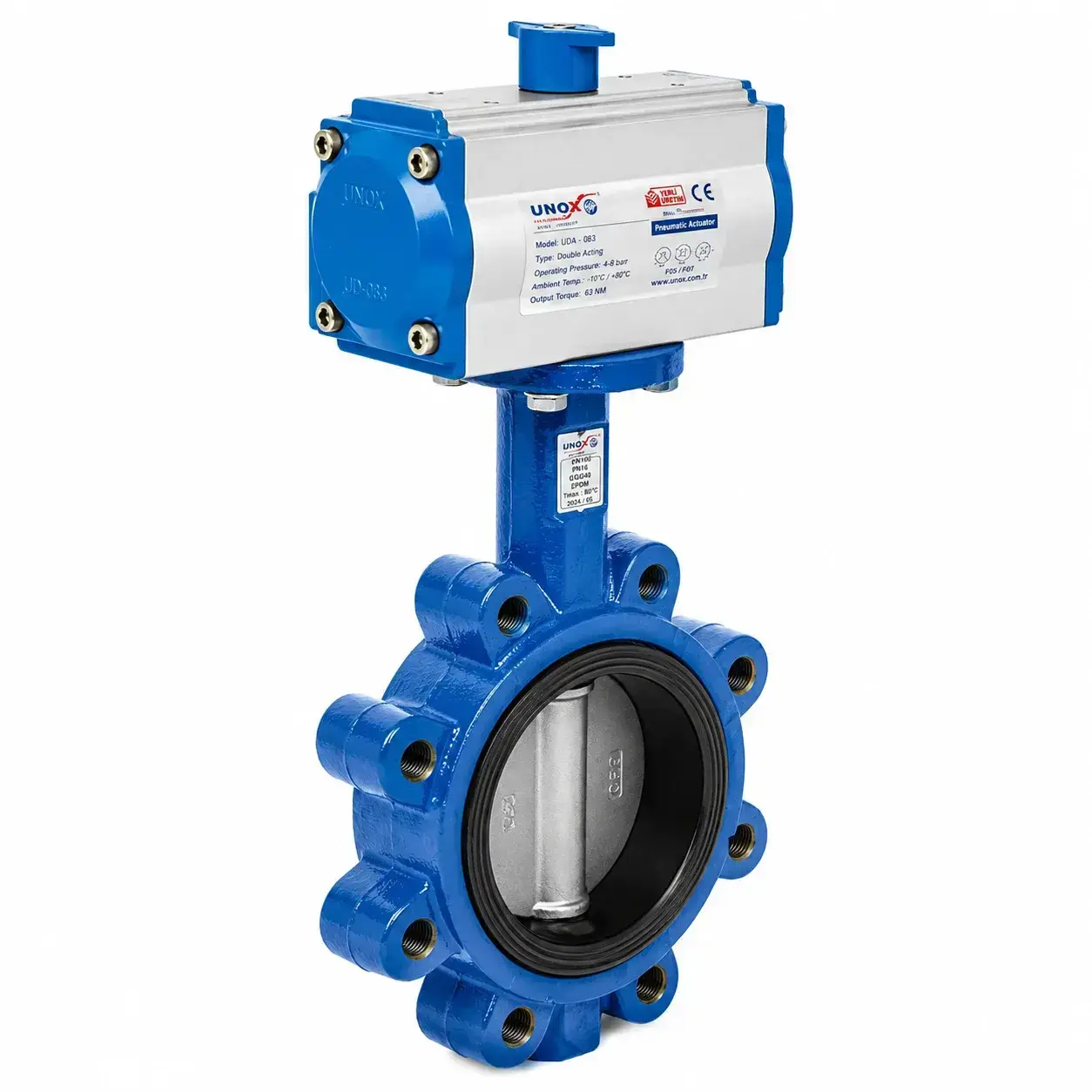

UNOX Lug Type Double Acting Pneumatic Actuator Nickel Butterfly Valve

What is a Pneumatic Actuator Lug Type Butterfly Valve?

A butterfly valve is used to control the flow of liquids or gases such as water, air, or gas. It consists of a disc that rotates around an axis. When the disc is open, it allows flow, and when closed, it restricts or stops the flow. Thanks to this simple operating principle, butterfly valves are widely used in large-diameter piping systems in industrial facilities.

Pneumatic actuator lug type butterfly valves are designed for water and non-corrosive fluid applications, especially in narrow installation areas. They are lug and wafer type valves installed between two flanges and operated by compressed air through a pneumatic actuator. These valves are available in different connection sizes and disc material options such as brass or stainless steel, depending on the application requirements.

Product Features

• Body: GGG-40 ductile iron
• Disc: AISI316, AISI304, or Aluminum-Bronze (AL-BR)
• Stem: Stainless steel
• Temperature range: –10°C / 110°C
• Seal: EPDM

Applications

• Heating, ventilation, and air conditioning (HVAC) systems
• Water treatment and distribution systems
• Mining industry
• Shipbuilding and offshore drilling facilities
• Food and chemical industries
• Firefighting systems
• Water, seawater, dust, gas, wastewater, and air applications

Control Types of Pneumatic Actuated Lug Type Valves

• On-Off control
• Modulating (proportional) control

Butterfly Valve Construction

• Aluminum extrusion body with high corrosion resistance on both inner and outer surfaces, precision-machined for long service life and low friction
• Compact symmetrical pistons made from special aluminum alloy, allowing easy installation and reverse operation by repositioning pistons
• High-quality corrosion-resistant steel pinion designed for 45°–90° installation flexibility and synchronized movement with piston stroke
• Industrial-grade engineering plastic bearing elements that minimize friction and wear for fast operation
• Precision-machined modular gears for quiet, smooth, and efficient performance between piston and pinion
• Stainless steel fastening elements for long-term corrosion resistance
• Fully compliant with ISO 5211, DIN 3337, and VDI/VDE 3845 NAMUR standards, enabling easy installation and interchangeability of solenoids, limit switches, and other accessories

Butterfly Valve Conclusion

Pneumatic actuator lug type butterfly valves provide reliable, fast, and efficient flow control in industrial automation systems. Their durable structure and compatibility with automation accessories make them a preferred solution for modern process control applications.
