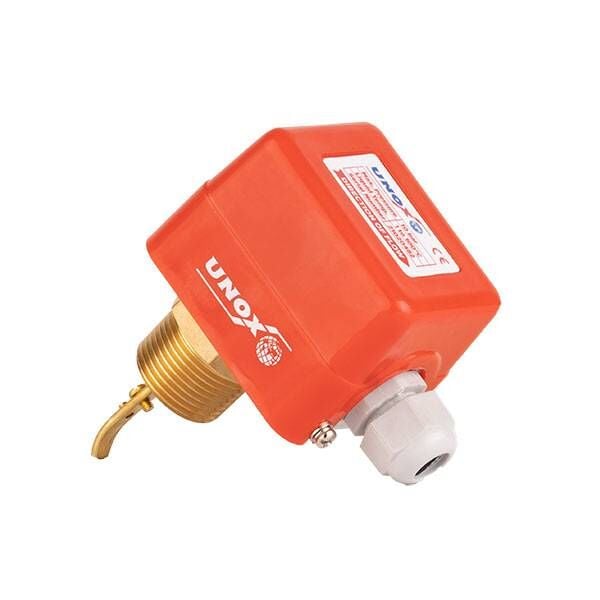

Unox Flow Switch

What is a Flow Switch?

A flow switch is a device used to detect the flow of gases or liquids through a pipe or other channel. It is generally used to monitor the flow of process fluid in a system and to trigger an alarm or other control mechanism if the flow falls outside a predetermined range. Flow switches are commonly used in industrial and commercial settings to ensure the safe and efficient operation of equipment and to prevent damage or accidents.

Purpose of a Flow Switch

Flow switches can be used in various applications, including monitoring water flow in pipelines, detecting gas flow in ventilation systems, and sensing liquid flow in chemical processing plants. They are available in various sizes and configurations and can be used with different types of fluids depending on the specific application requirements. Generally, a flow switch consists of a sensor element placed in the flow path and a control unit connected to the sensor that activates an alarm or control mechanism when necessary.

Flow Switch General Specifications

• Model: UAKS 16

• Size: 1″

• Body: Brass

• Plates: AISI 304 Stainless Steel

• Power Supply: All Voltages

• Applicable Pipe Diameter: 1″ – 6″

• Control Type: Pedal

• Maximum Static Pressure: 10–20 kg/cm²

• Ambient Temperature Range: 0 °C – 60 °C

• Maximum Fluid Temperature: 100 °C

• Electrical Switch: SPD Value: 220 Vac, 15 A

• Connection: Threaded

• Flow Switch Housing: Pipe Connection Part with Semi-Open Plastic Cover

Application

Used in fluid systems where the medium does not harm brass, phosphorus, or bronze and is not classified as hazardous, to monitor and control flow.

Flow Switch Installation

• The flow switch should be connected parallel to the pipeline, either horizontally or vertically.

• The distance (A) between the connection points to the right or left of the flow switch should be at least 5 times the pipe diameter.

Flow Switch Adjustment

• Remove the switch cover.

• Turn the adjustment screw clockwise for high flow rate.

• Turn the adjustment screw counterclockwise for low flow rate.

• Ensure the cover is properly seated after adjustment.
