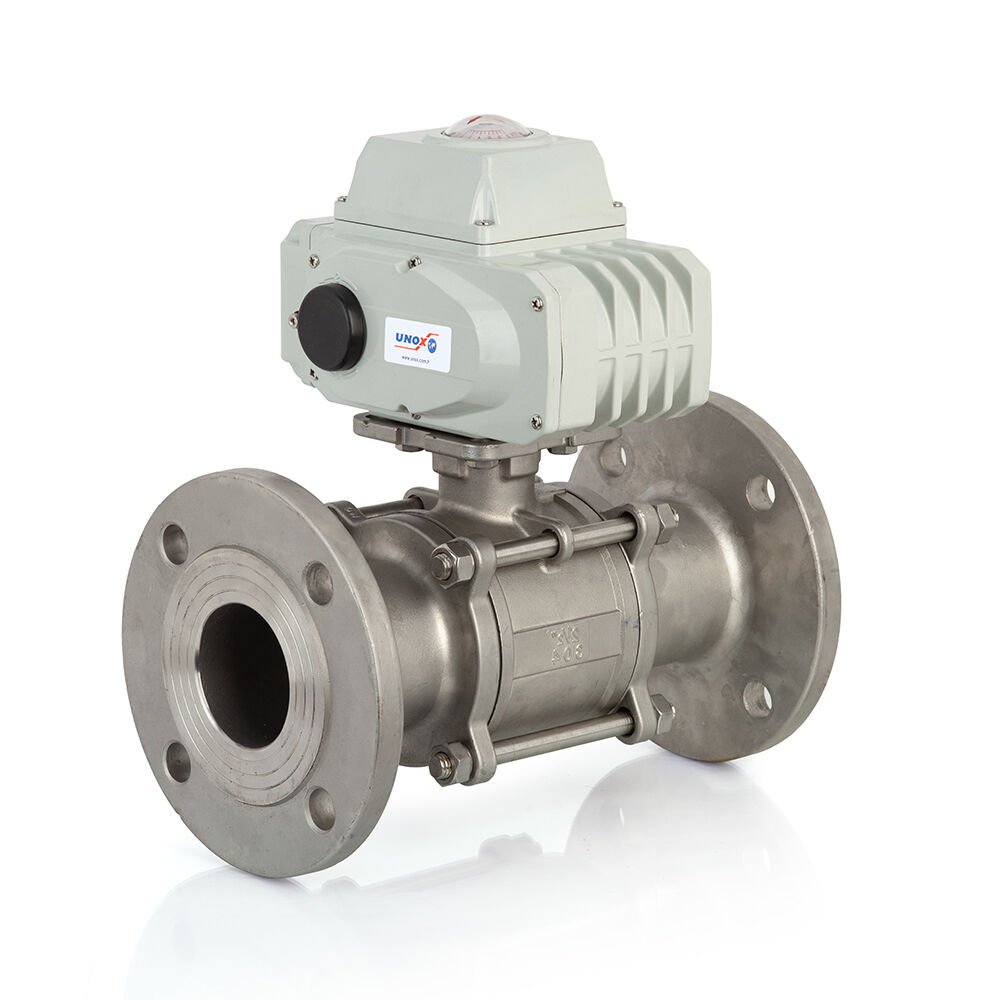

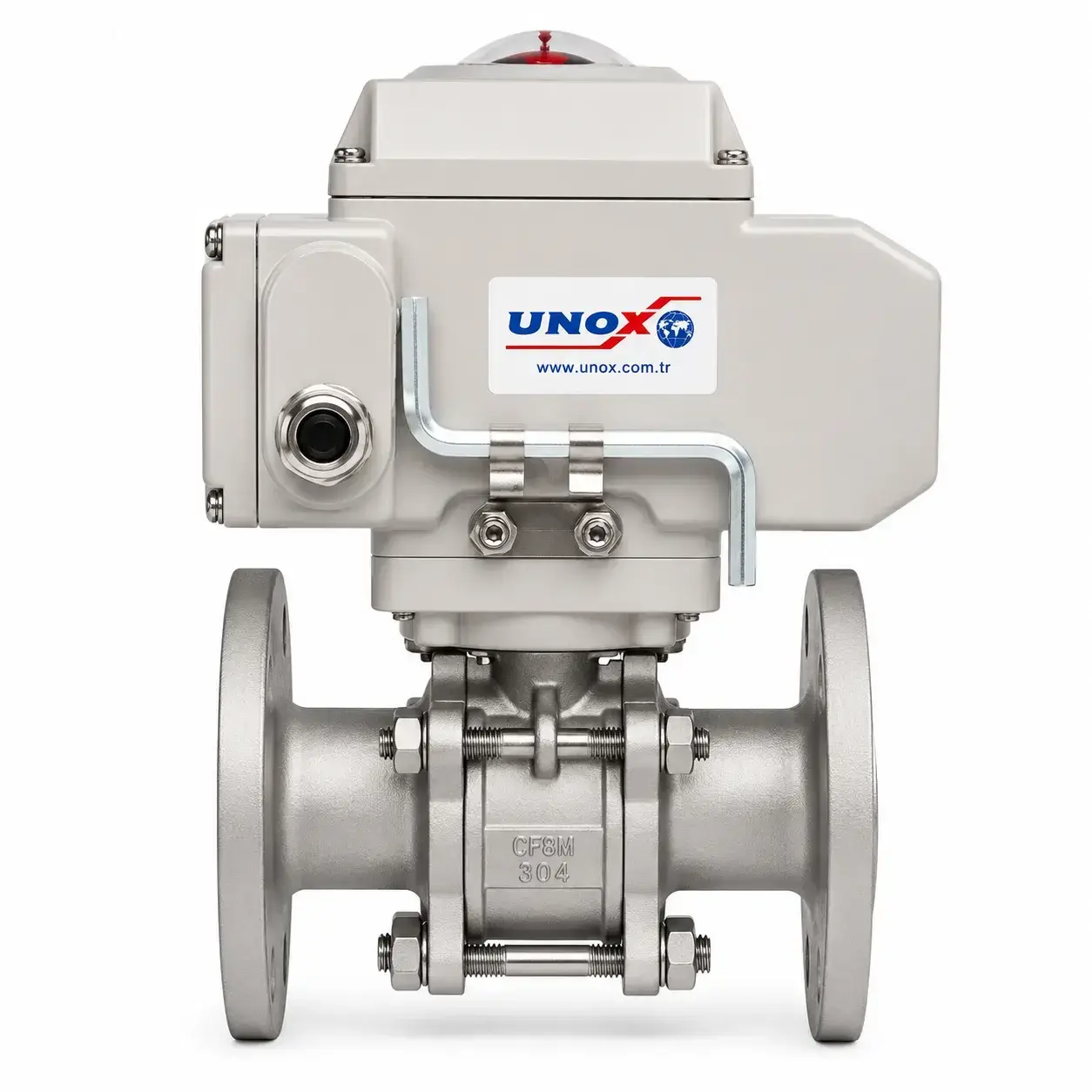

Unox Electric Actuated Stainless Steel Flanged Ball Valve

What is an Electric Actuated Flanged Ball Valve?
An electric actuated flanged ball valve is a type of valve that uses an electric motor to operate a ball valve.

A ball valve has a ball inside the valve body that rotates and has a hole through its center to open or close the flow of liquid. The ball is held in place by a rod connected to the electric actuator. When the electric actuator receives an electrical signal, it rotates the body that turns the ball to open or close the valve.

These valves are used in piping systems to control the flow of liquids, gases, and other media. They are commonly used in industrial and commercial applications as well as residential and municipal water systems. Electric actuated flanged ball valves are preferred in situations where remote control or automatic operation of the valve is required, as they can be easily operated using electrical signals. They are also useful in applications requiring frequent opening and closing because they operate quickly and efficiently.

Where Are Electric Actuated Flanged Ball Valves Used?
Electric actuated flanged ball valves are used in a wide range of industrial and commercial applications where precise control of liquid flow is necessary. Since they are a type of ball valve, some industries and system examples where they can be used include:

• Oil and gas industry: Frequently used to control the flow of liquids through pipelines, especially in applications with high pressure and temperature fluctuations.

• Water treatment plants: Used to regulate water flow entering and leaving tanks and reservoirs in treatment facilities.

• Chemical processing plants: Used to control the flow of chemicals and other liquids through pipelines, handling a wide variety of fluids including acids, bases, and corrosive materials.

• Power plants: Used to control the flow of steam and other liquids through pipes and valves.

• Food and beverage industry: Used to control the flow of liquids such as water, milk, and other beverages, especially in bottling and canning processes where cleanliness and hygiene are critical.

In general, electric actuated flanged ball valves are used in many industries and applications where precise control of liquid flow is required. Their durability, reliability, and ease of maintenance make them a popular choice for numerous industrial and commercial systems.

Product Specifications of Electric Actuated Flanged Ball Valve

• Body: Stainless Steel AISI 304

• Protection Class: IP 68

• Operating Time: 8/10 seconds

• Ambient Temperature: -10 to +80°C

• Electrical Connection: 1/2″ Water Protected

• Connection: ISO 5211

• DN15-DN20-DN25-DN32 products use a 30 NM actuator.
