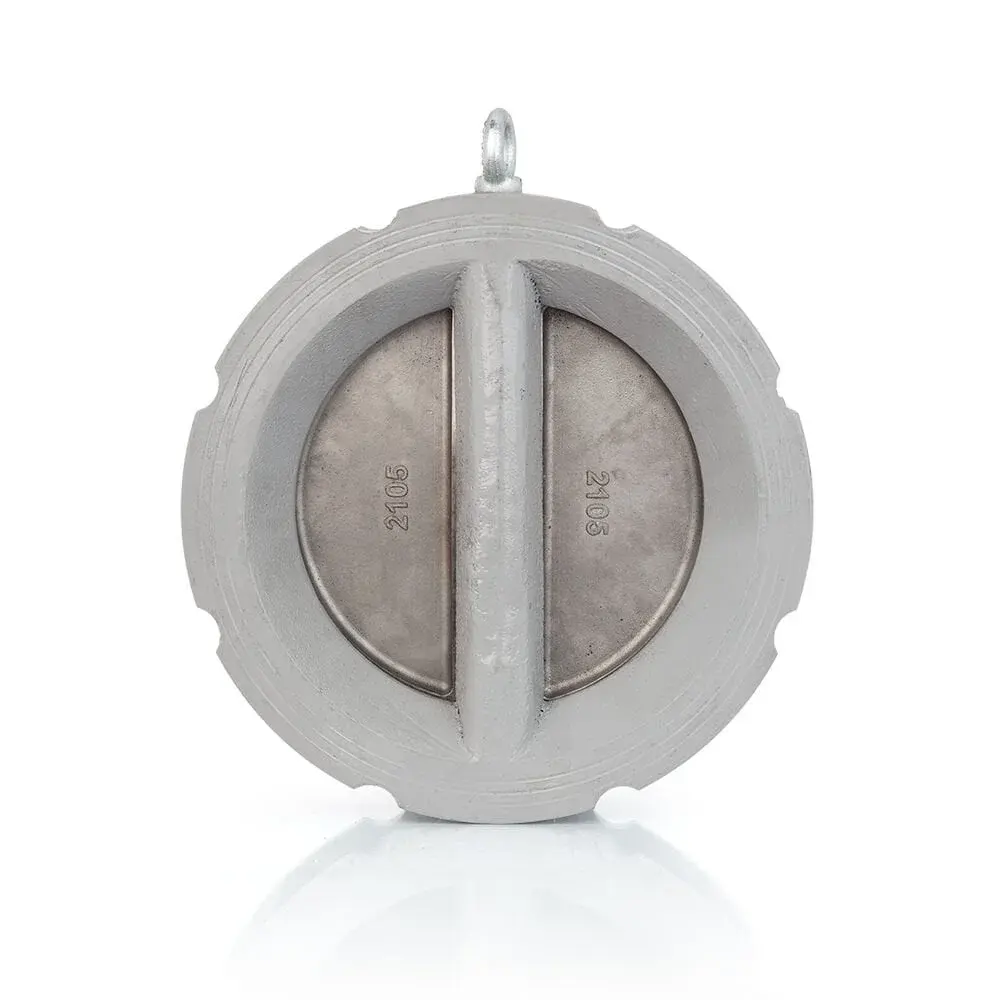

Unox Double Flap Check Valve Nickel (Dual Check Valve)

Technical Specifications

Pressure: PN16
Temperature: -10 °C / +100 °C

What Is It?

A double flap check valve is a type of valve with two flaps. Each flap acts as a gate that allows flow in one direction and prevents flow in the opposite direction. It is commonly used to control the flow of liquids or gases.

Structure of the Double Flap Check Valve

A double flap check valve generally consists of the following components:

• Body: Supports the flaps and other internal components of the valve.

• Flaps (Plates): Each flap acts as a gate that allows flow in one direction and blocks it in the other.

• Spring: Keeps the flaps in the closed position when there is no forward flow.

• Actuator: Responsible for opening and closing the flaps (in some designs).

Working Principle of the Double Flap Check Valve

The valve operates as follows:

1. The flow moves in the direction where the flaps are open.

2. The flaps open due to the pressure of the flowing medium.

3. The fluid passes through to the other side.

4. When the flow tries to reverse direction, back pressure pushes the flaps closed.

5. This prevents reverse flow and protects the system.

Advantages

• High flow capacity.

• Requires minimal maintenance.

• Long service life.

Disadvantages

• Not suitable for very high-pressure applications.

• Sensitive to excessive flow rates.

👉 You can view all our check valve categories by clicking [here].

Areas of Use

Commonly used in the following applications:

• Water distribution systems

• Industrial applications

• Power plants

• Machinery manufacturing

Application Fields

• Hot and cold water systems

• Liquid fuel installations

• Non-flammable fluids without acidic or alkaline properties
