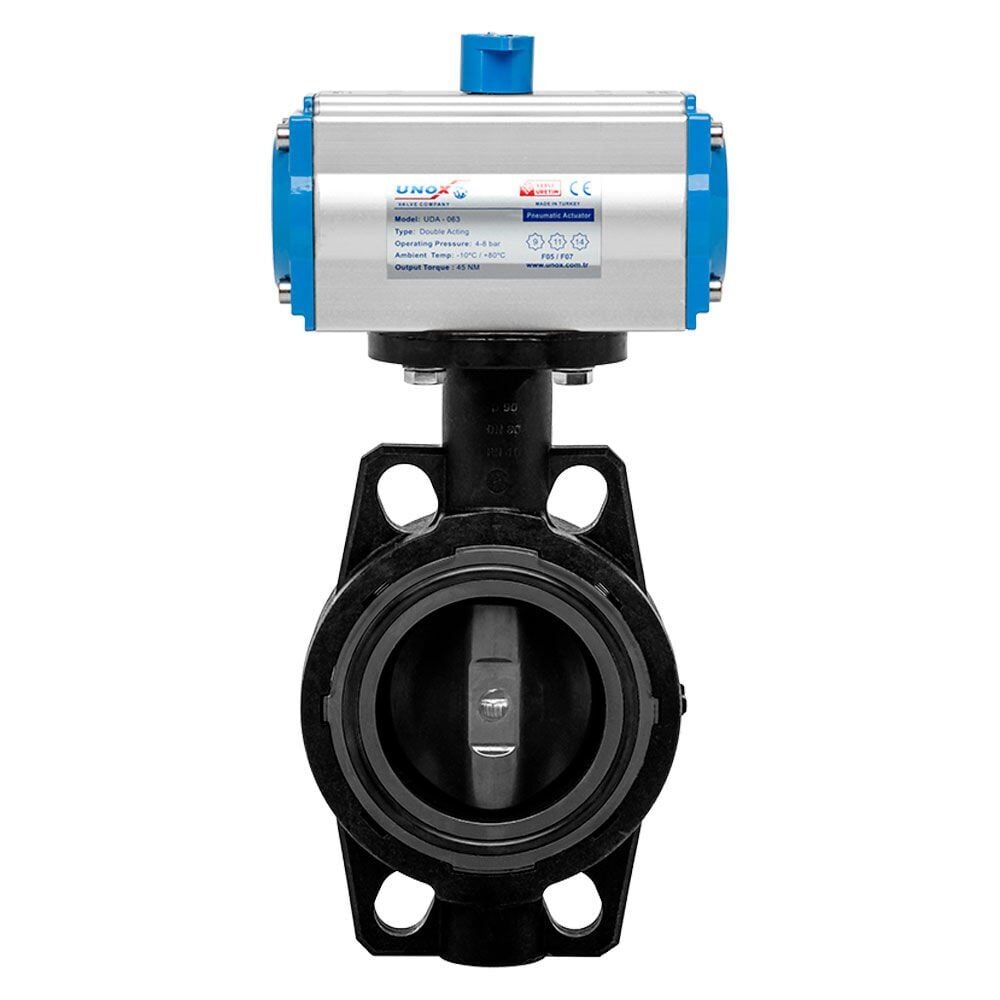

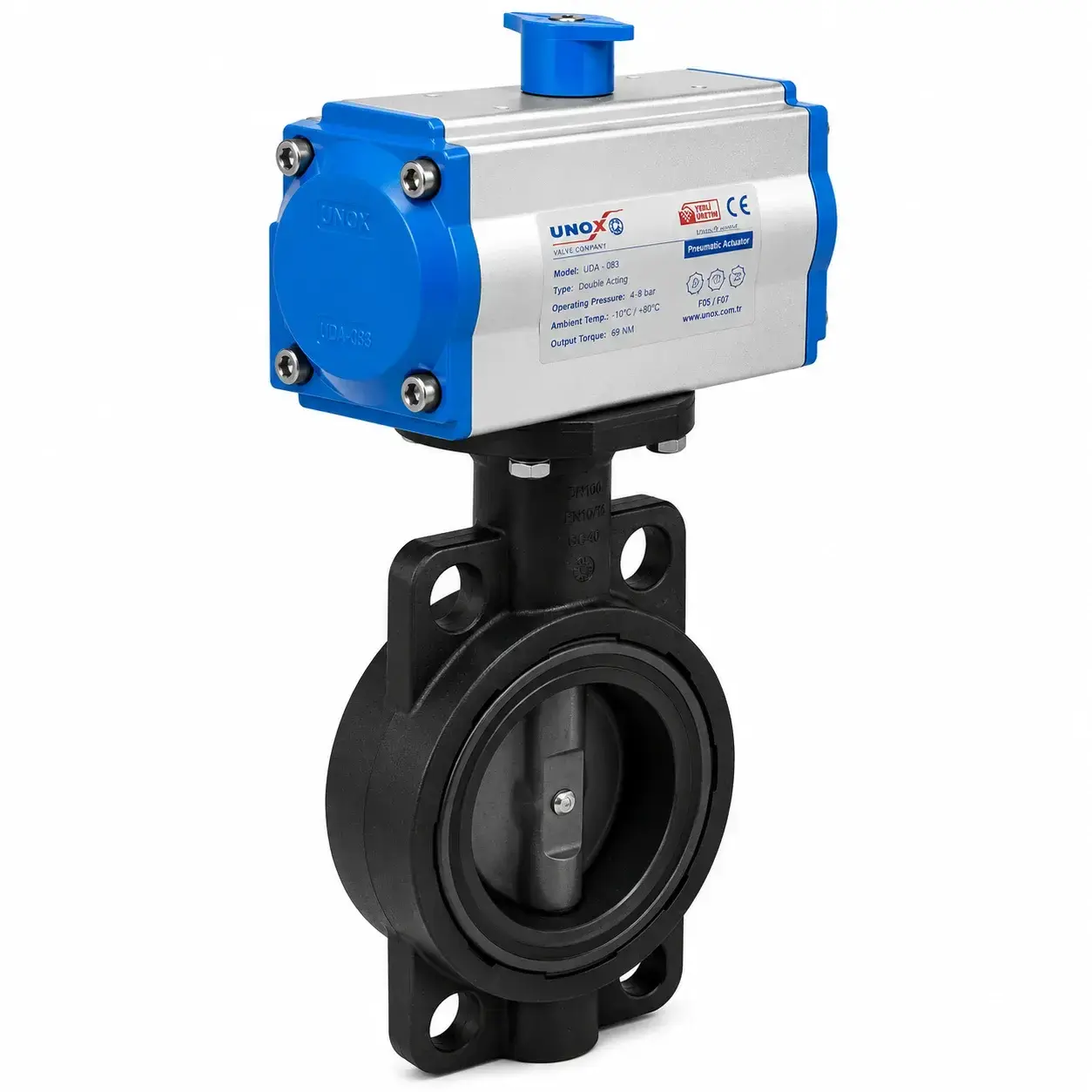

Unox Double-Acting Pneumatic Actuated U-PVC Butterfly Valve for Water Applications
What is a Pneumatic Actuated U-PVC Butterfly Valve?
A U-PVC butterfly valve is a type of valve made from unplasticized polyvinyl chloride (U-PVC). Butterfly valves are used to open, close, or regulate the flow of fluids inside a pipe or pipeline system. They are commonly used in water systems and piping networks.
U-PVC butterfly valves are preferred because they are lightweight, easy to install, and highly resistant to corrosion. Thanks to these properties, they offer a long service life.
How Does a Butterfly Valve Work?
The operating principle of a butterfly valve is based on a disc-shaped plate that rotates inside the pipeline. This disc is turned using a lever or actuator to open or close the flow.
When fully open, the disc aligns with the flow direction, allowing fluid to pass with minimal pressure loss. When closed, the disc turns perpendicular to the flow and blocks it completely.
Where Are U-PVC Butterfly Valves Used?
- Water treatment plants for controlling filtration and disinfection processes
- Chemical processing plants due to resistance against many corrosive substances
- Food and beverage industry for controlling liquids and gases in pipelines
- HVAC systems for regulating airflow in ducts
- Agricultural irrigation systems for controlling water distribution
- Plumbing systems for general water flow control
- Industrial applications such as oil & gas, pharmaceutical production, and power plants
General Properties of Polyethylene Materials
- High mechanical strength
- Resistant to acids, bases, and solvents
- Excellent dielectric (electrical insulation) properties
- Resistant to environmental conditions
Depending on pipe diameter, actuators with torque values ranging from 9 Nm to 400 Nm are used. Optional accessories such as switch boxes and directional valves can also be integrated.
Pneumatic Actuator Models and Torque Values
- UDA 040 = 9 Nm
- UDA 052 = 25 Nm
- UDA 063 = 50 Nm
- UDA 083 = 94 Nm
- UDA 092 = 135 Nm
- UDA 105 = 270 Nm
- UDA 125 = 400 Nm
Control Types
- On/Off control
- Proportional control
Construction
- Aluminum extruded body with high corrosion resistance and low friction surface for long service life
- Symmetrical design for easy installation and fast operation; compact pistons made of special aluminum alloy with reversible functionality
- High-quality corrosion-resistant steel pinion suitable for 45°–90° mounting angles
- Industrial-grade plastic bearing elements that reduce friction and wear
- Precision-machined modular gears for smooth, silent, and efficient operation
- Stainless steel fastening components for long-term durability and corrosion resistance
