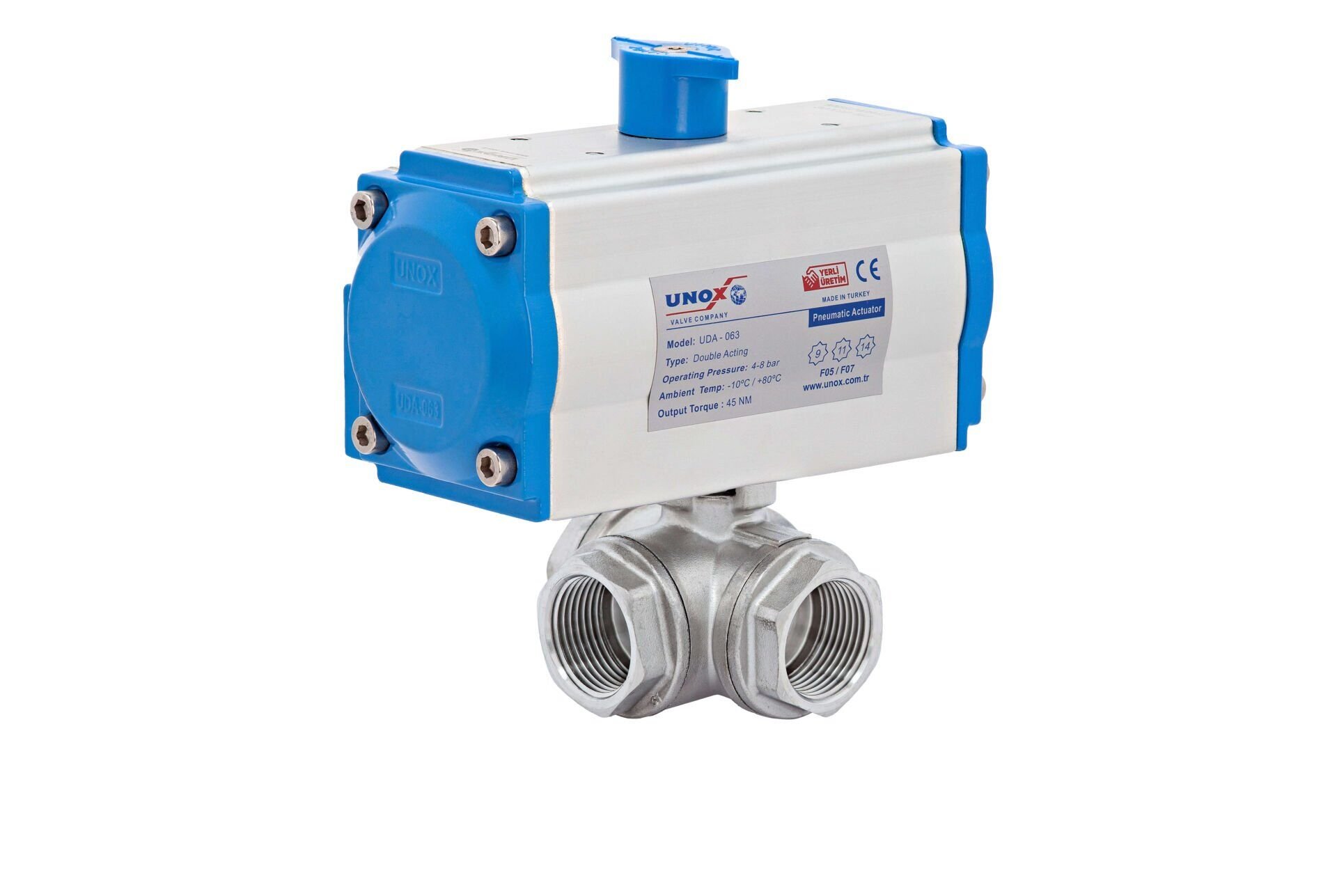

Unox Double Acting Pneumatic Actuator Stainless Steel Gear Operated Ball Valve T Port
What is a Pneumatic Actuator 3-Way Ball Valve?
A pneumatic actuator 3-way ball valve is an industrial valve type that can control three different flow paths using a pneumatic actuator driven by air pressure. Thanks to its ball valve structure, it changes the direction of the fluid quickly, safely, and with tight sealing. It is widely used for controlling air, gas, oil, and similar fluids.
UNOX pneumatic actuator 3-way ball valves are developed through our company’s R&D studies and are fully domestically produced products with high quality standards.
Working Principle
Pneumatic actuator valves operate by applying pressurized air to the actuator pistons. The actuator rotates the internal ball of the valve by 90° or 120°, changing the flow direction or performing full open/close operation. This enables automatic control without manual intervention.
Pneumatic Actuator Types
UNOX product range includes two different actuator types:
- Single Acting Actuator (USA): Spring-return type; when air supply is cut off, the valve returns to a safe position.
- Double Acting Actuator (UDA): Opening and closing operations are performed using air pressure.
Ball Valve Control Options
Pneumatic actuator 3-way threaded ball valves have two control types:
- Ball Valve On-Off Control: The valve operates in fully open or fully closed position.
- Ball Valve Modulating (Proportional) Control: Flow rate can be adjusted gradually; ideal for precise process applications.
Ball Valve Construction and Technical Features
- Aluminum extruded body with high corrosion resistance inside and outside
- Precision-machined cylinder surface for low friction coefficient
- Compact and symmetrical piston design enabling easy installation and reverse operation
- Industrial-grade plastic bearing elements for long service life
- Stainless steel fastening elements
- Precision-machined modular gears for quiet and efficient operation
Ball Valve Standards and Compatibility
Pneumatic actuator 3-way ball valves are fully compatible with ISO 5211, DIN 3337, and VDI/VDE 3845 NAMUR standards. Solenoid valves, limit switches, and other accessories can be easily mounted and replaced.
Ball Valve Applications
- Industrial automation systems
- Chemical and petrochemical plants
- Natural gas and compressed air lines
- HVAC systems
- Water treatment and process control applications
Conclusion
The pneumatic actuator 3-way ball valve is an ideal solution for industrial flow control with its reliable structure, fast response time, and automation-friendly design. These valves, offered with UNOX domestic production quality, provide long-lasting and high-performance operation.
