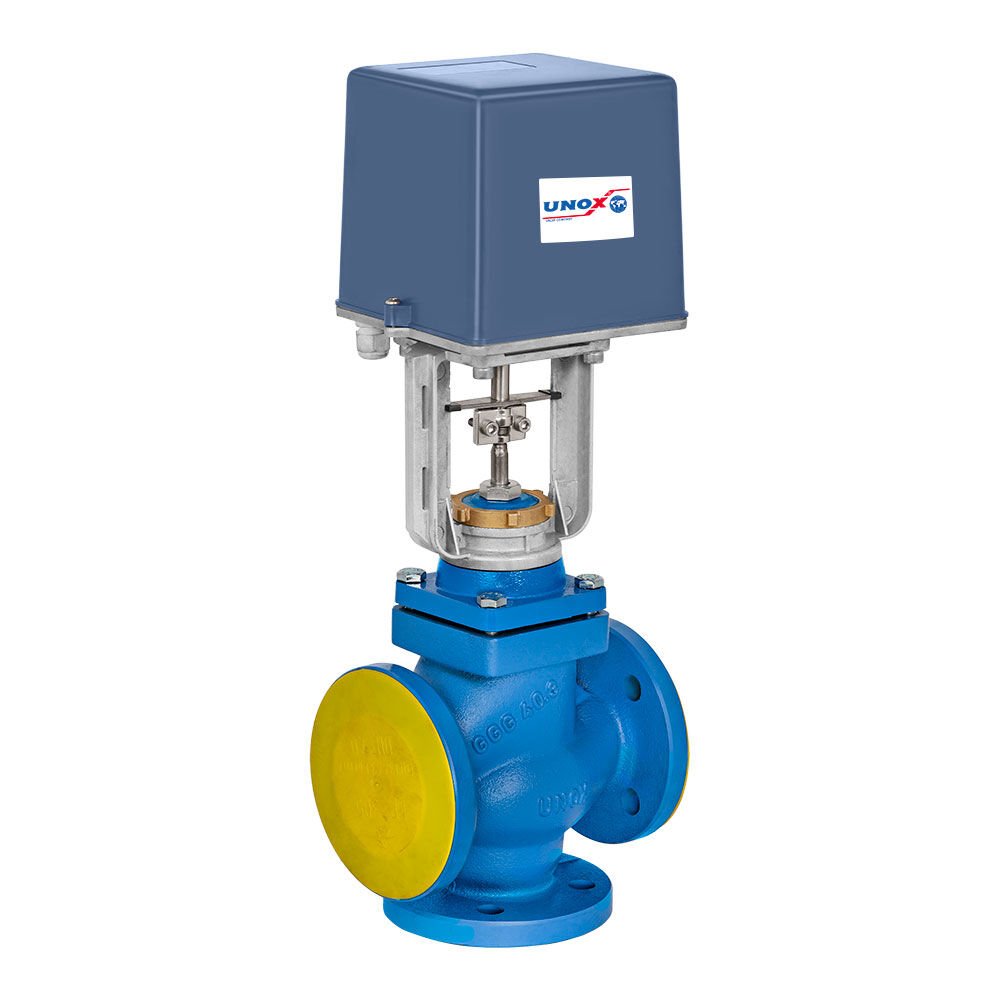

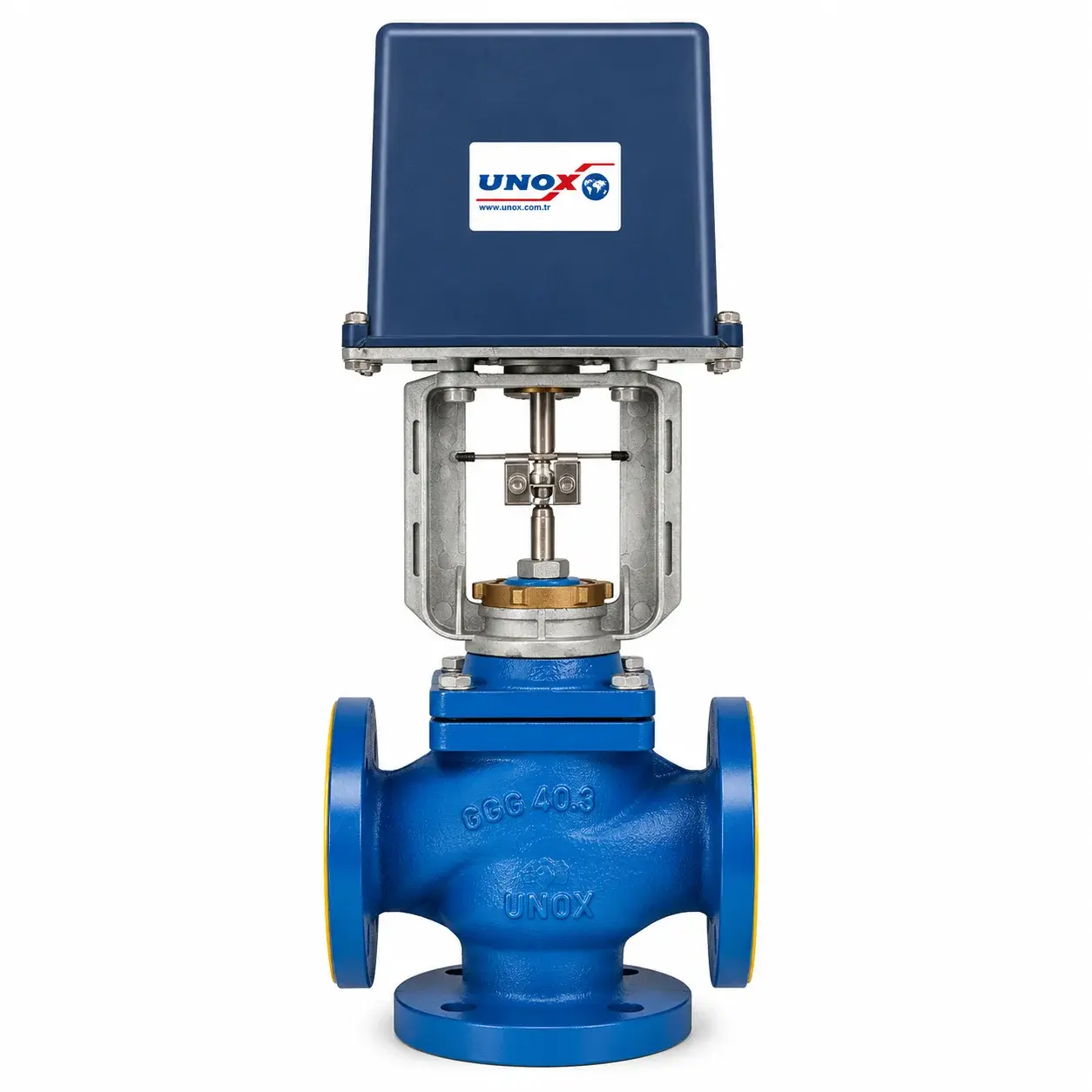

Unox 3-Way Motorized On-Off Control Valve (Floating Control)

What is a Motorized On-Off Control Valve?

A control valve is a valve used to regulate a fluid by adjusting the size of the flow passage according to a signal from a controller. Control valves allow pressure, temperature, flow rate, and level control in all processes where a fluid is present. They enable fluids such as cold water, hot water, steam, hot water, vapor, and gases to be transported and controlled without any loss in industrial systems.

How Does an On-Off Control Valve Work?

The on-off operating principle refers to a control system where a device or system is either fully open or fully closed, with no intermediate states. This type of control is generally used in simple systems where a device or process needs to be turned on or off based on a specific condition or input.

An example of on-off operation is a thermostat controlling a heating or cooling system. When the thermostat is set to a certain temperature, it turns the system on or off to maintain that temperature. If the room temperature falls below the setpoint, the heating system turns on; if it rises above the setpoint, the system turns off.

The on-off principle is relatively easy to implement and understand, making it suitable for simple control systems. However, because it does not allow fine adjustments or intermediate states, it is generally less precise than other control methods.

General Features of On-Off Control Valve

• Product: 3-Way Motorized On-Off Control Valve (with metal bellows)

• Sizes: DN15 / DN20 / DN25 / DN32 / DN40 / DN50 / DN65 / DN80 / DN100 / DN125 / DN150

• Application: Pressurized steam and hot oil lines

• Function: Distributor / Mixer

• Sealing Class: CLASS VI (PTFE Soft Seal)

• Connection Standard: Flanged connection (DIN1092-2)

• Pressure Class: PN16 – PN25 (Optional PN40)

• Max Operating Temperature: 220 °C

• Stem Sealing: V-Packing

• Characteristic: On-Off / Proportional

• Maintains position in case of power failure

Electric Motor Features of On-Off Control Valve

• Power Supply: 24 VAC – 24 VDC – 220 VAC (3-Point Floating Control)

• Actuating Force: 1000 N – 2200 N – 2500 N – 3000 N

• Stroke: 20 mm for DN15–50; 30 mm for DN50–100

• Stroke Completion Time: 20 s for DN15–50; 30 s for DN50–100

Material Specifications of On-Off Control Valve

• Body: GGG – 40.3 Spheroidal Cast Iron

• Cover: GGG – 40.3 Spheroidal Cast Iron

• Stem Connection Part: ST44-3 (S275J0)

• Actuator Body: AL6063 ENJ – ABS Plastic

• Seat: 1.4571 Stainless Steel (AISI316)
