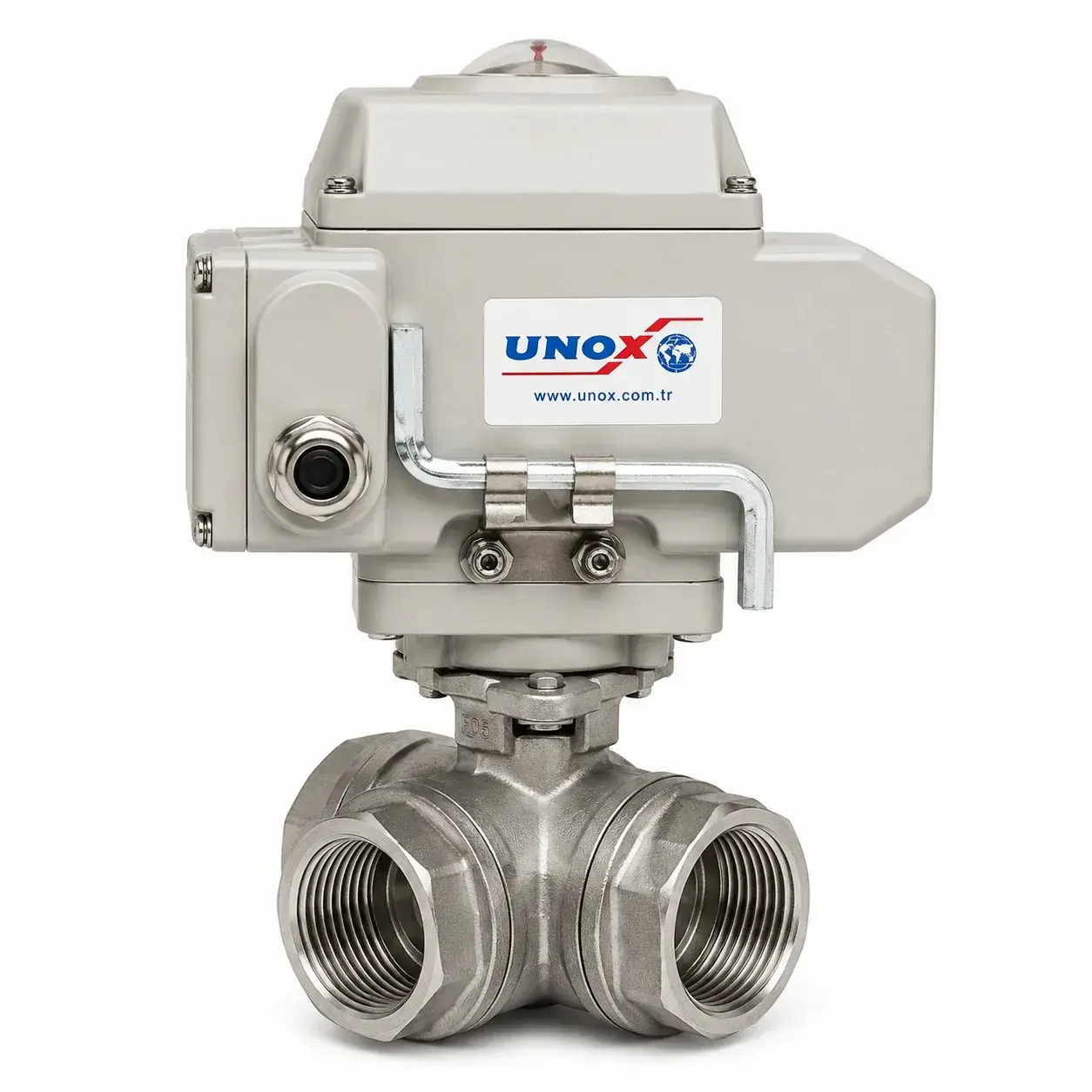

Unox 24V DC Electric Actuated 3-Way T-Port Stainless Steel Threaded Ball Valve

3-Way Electric Actuated Threaded Stainless Steel Ball Valve

A 3-way electric actuated threaded stainless steel ball valve is a type of valve used to control the flow of liquid in a piping system. It consists of a ball with a hole that is rotated by an electric actuator to open or close the flow. The valve is made of corrosion-resistant stainless steel, suitable for use in various environments, including exposure to high temperatures or harsh chemicals. It features three ports that allow the liquid flow to be directed between two different paths. Typically, it is used in industrial or commercial applications such as chemical processing plants, power plants, or water treatment facilities.

Ball Valve Product Features

• Protection Class: IP 67 – IP 68

• Operation Time: 30/60 sec

• Ambient Temperature: -30 to +60 °C

• Electrical Connection: ½’’ Waterproof

Usage Purposes
Depending on the application, these electric actuated 3-way ball valves are produced in stainless steel or brass and are used in pipelines carrying water, steam, or some corrosive fluids. They are powered by an electric actuator and are available in different connection diameters.

Actuators, depending on connection size, provide torque ranging from 50 Nm to 1000 Nm and can be operated with 24VDC or 220VAC. Optionally, they can be controlled proportionally via 4-20 mA signals.

Actuator and Valve Specifications by Model:

• UKST-05: 50 Nm

• UKST-10: 100 Nm

• UKST-20: 200 Nm

• UKST-40: 400 Nm

• UKST-60: 600 Nm

• UKST-100: 1000 Nm

For DN15, DN20, DN25, and DN32 valves, a 30 Nm actuator is used.
