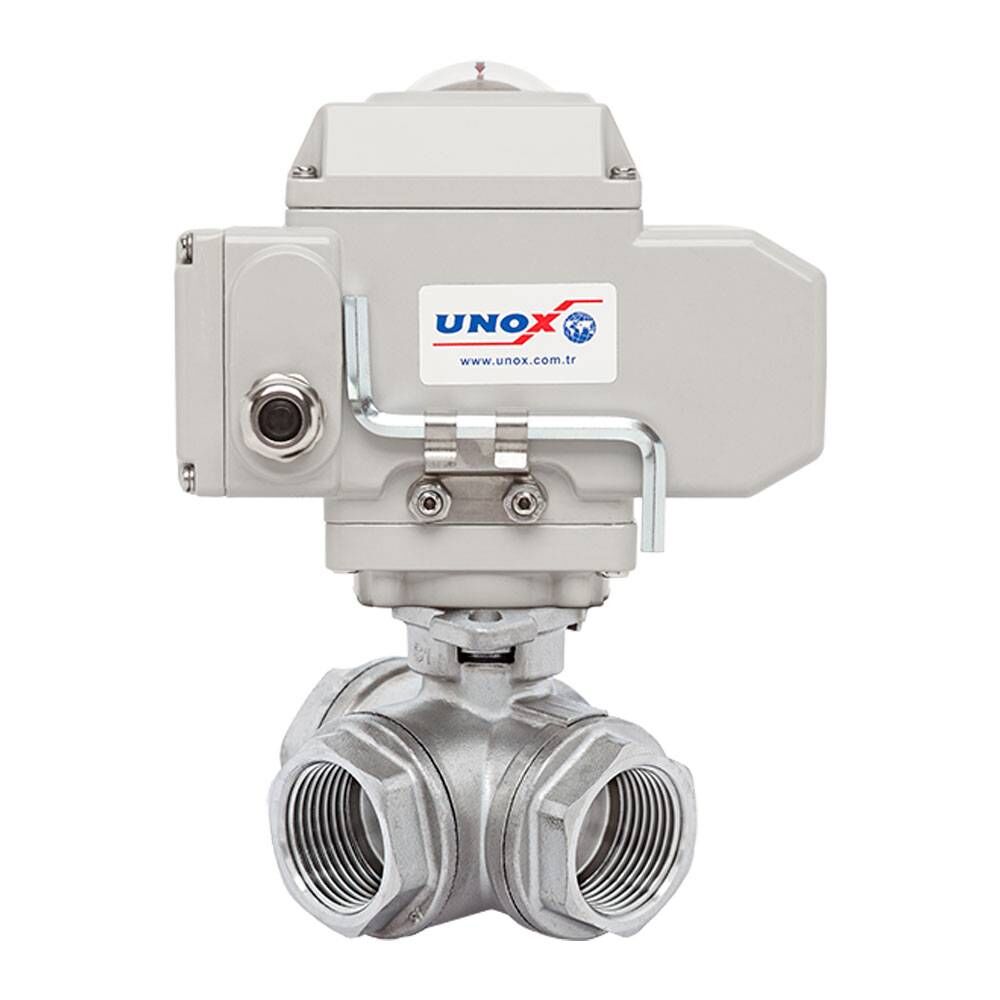

Unox 220V AC Electric Actuated 3-Way T-Port Stainless Steel Threaded Ball Valve

3-Way Electric Actuated Threaded Stainless Steel Ball Valve

A 3-way electric actuated threaded stainless steel ball valve is a type of valve used to control the flow of liquid in a piping system. It consists of a ball with a hole, rotated by an electric actuator to open or close the liquid flow. The valve is made of corrosion-resistant stainless steel, suitable for various environments, including those exposed to high temperatures or harsh chemicals. It has three connection points, allowing the liquid flow to be directed between two different paths. Typically, it is used in industrial or commercial applications such as chemical processing plants, power plants, or water treatment facilities.

Ball Valve Product Features

• Protection Class: IP 67 - IP 68

• Operation Time: 30 / 60 sec

• Ambient Temperature: -30 to +60 °C

• Electrical Connection: ½’’ Water-Protected

Applications

Depending on the intended use, these 3-way electric actuated ball valves are designed for water, steam, or certain corrosive fluids, available in various connection sizes, and manufactured in stainless steel and brass. They are operated with an electric actuator powered by either 24VDC or 220VAC, and optionally can be controlled proportionally via 4–20 mA.

Actuator Codes, Torque Ratings, and Valve Applications:

• UKST-05 → 50 Nm

• UKST-10 → 100 Nm

• UKST-20 → 200 Nm

• UKST-40 → 400 Nm

• UKST-60 → 600 Nm

• UKST-100 → 1000 Nm

For products with DN15, DN20, DN25, and DN32 connection sizes, a 30 Nm actuator is used.
