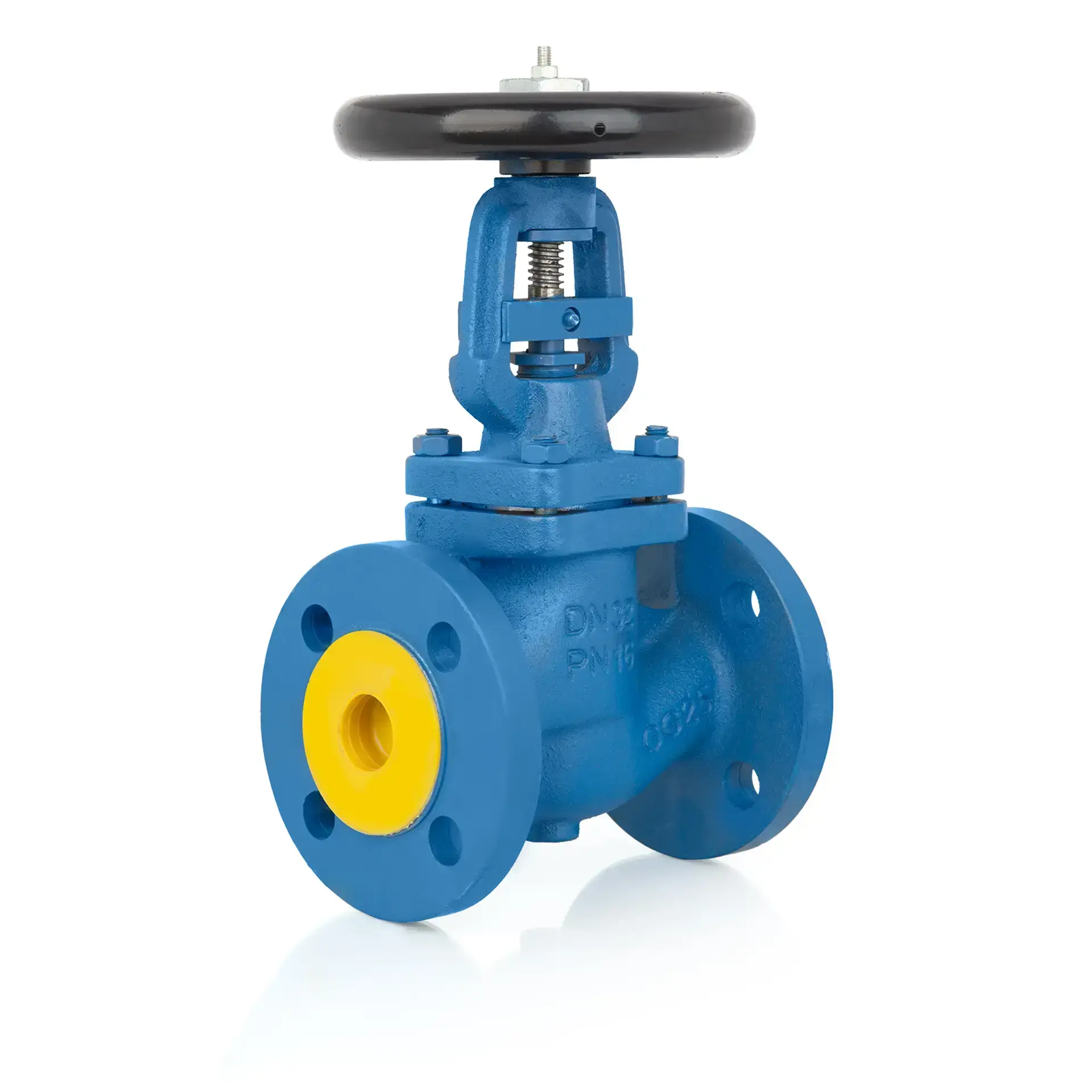

Straight Pattern Globe Valve
A straight pattern globe valve is a type of valve that allows flow control without changing the direction of the fluid. It is distinguished from other globe valves by its straight-through body design. The flow is directed vertically from top to bottom. This internal structure reduces fluid loss and minimizes resistance.
Inside the valve body, the disc is pressed against the sealing surface to stop the flow. When opened, the disc is lifted, allowing fluid passage. This mechanism provides controlled flow regulation and prevents sudden pressure fluctuations.
Where Is a Straight Pattern Globe Valve Used?
Straight pattern globe valves are widely used in water and steam systems. They are especially preferred when controlled discharge of pressurized fluids is required. They are commonly found in industrial plants, boiler systems, and HVAC applications.
They are also used in chemical, petrochemical, and power generation facilities due to their reliable control performance. Their straight-line design simplifies installation and reduces maintenance time. Additionally, their resistance to high temperature and pressure enhances operational safety.
Product Features
- Body Material: Stainless steel, cast iron, or carbon steel
- Connection Type: Flanged, threaded, or welded connections
- Sealing: PTFE, metal seat, or elastomer options
- Pressure Range: PN16, PN25, PN40
- Temperature Range: -10°C to +400°C
- Operation: Manual or actuator-controlled systems
Why Choose a Straight Pattern Globe Valve?
Straight pattern globe valves provide stable and safe flow control. Since the fluid passes without changing direction, system efficiency is maintained. This reduces energy losses and lowers operational costs.
With high sealing performance, these valves are designed for long service life. Their body structure also offers strong resistance to corrosive and abrasive fluids, making them a reliable and economical solution.
For more valve options, you can visit the UNOX valve page. Suitable products can be purchased through UNOX Online.
