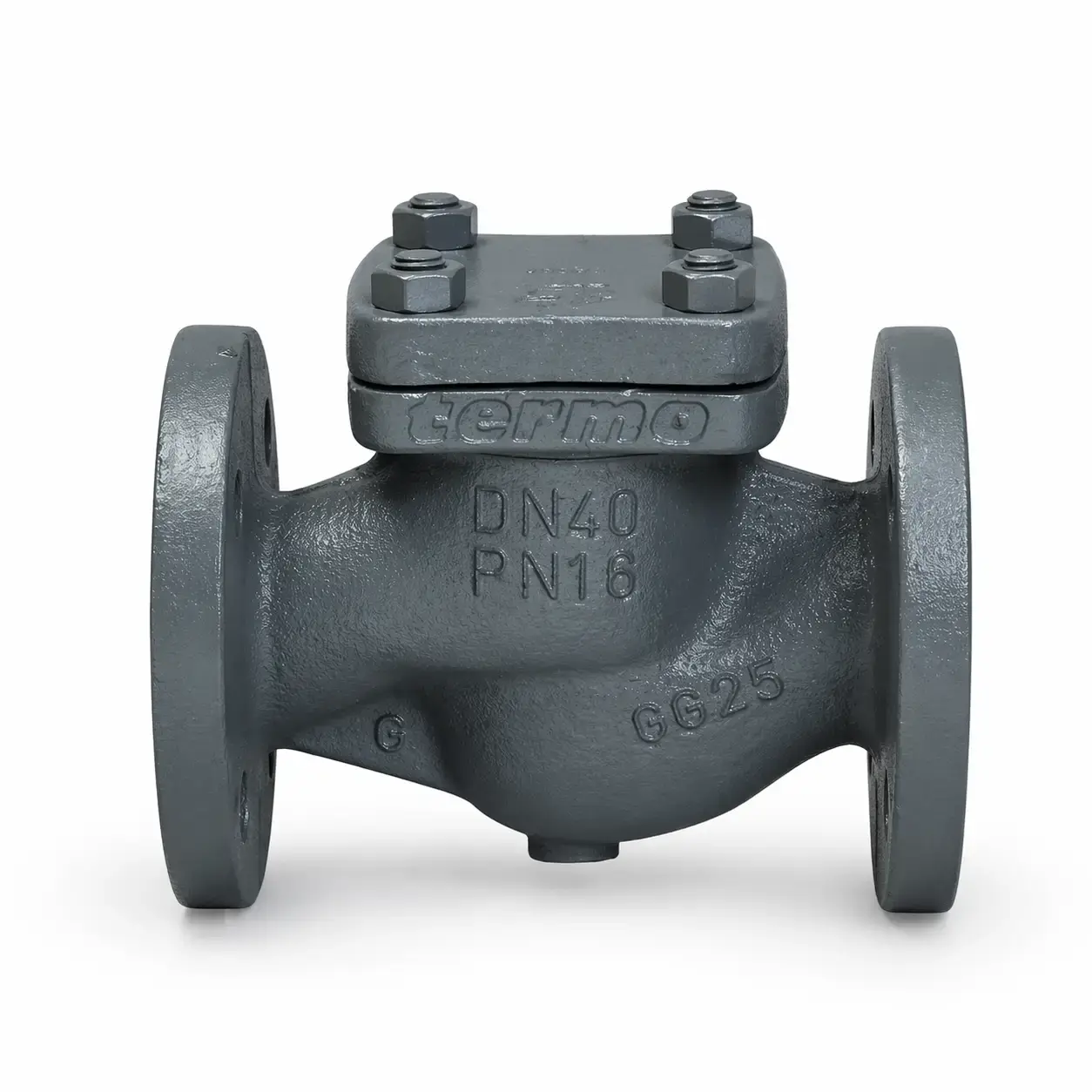

Spring Loaded Check Valve, PN 16 GG25, Flanged

Spring Loaded Check Valves are a reliable and durable type of valve designed to allow the flow of fluid in only one direction, preventing reverse flow. This model, made with a GG25 cast iron body, is widely used in industrial installations, heating and cooling systems, and water or liquid transfer lines.

Application: Steam, hot and superheated water, air, and fluids that are neither acidic nor alkaline in nature.

Nominal Pressure: PN16

Operating Conditions: According to DIN 2401

Body and Cover: Cast Iron (GG25)

Seat and Disc Surface: Stainless Steel

Spring: Spring Steel

Valve Dimensions: According to DIN 3202-F1

Connection: Flanged, PN16 (DIN EN 1092, DIN 2533)
