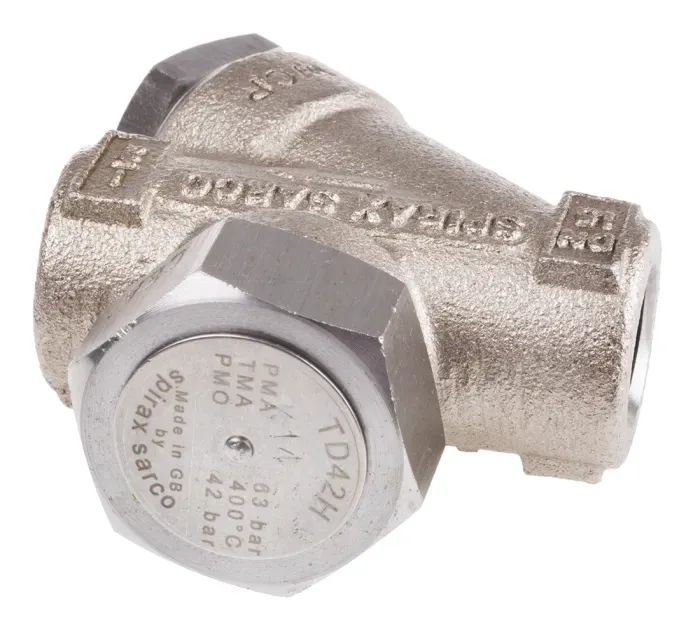

Spirax Sarco Thermodynamic Condensate Trap TD42H

Thermodynamic Steam Trap

The thermodynamic steam trap redefines condensate management in industrial facilities, ensuring rapid and efficient condensate discharge even under high temperatures and pressures. Its robust design, resistant to sudden pressure and temperature fluctuations, allows systems to operate more stably and safely.

Thanks to its advanced material composition and engineering design, this product not only saves energy but also reduces system maintenance costs. It minimizes energy losses in industrial facilities while providing maximum performance and safety. Ideal for heat exchangers, steam lines, and any high-pressure applications, the thermodynamic steam trap is an excellent choice for industrial plants aiming to increase energy efficiency and maximize operational safety.

The sealing part of the thermodynamic steam trap is made of stainless steel, while the body is forged steel C 22.8.

Operating Conditions:

• Back pressure should not exceed 80% of the inlet pressure.

• Intermittent discharge is possible depending on the condensate load.

• All spare parts are available for easy replacement.

The strainer is of "Y" type, located at the bottom of the body, and is extremely easy to clean.
Thermodynamic steam traps should be installed on horizontal pipelines for efficient and long-lasting operation.
Proper isolation valves must be installed to ensure safe maintenance and replacement of the trap.

Material Composition:

• Body: Forged Steel

• Cover and Internal Parts: AISI 304 Stainless Steel

Connections:

• Threaded, Weld Neck, and Flanged

Nominal Diameter:

• DN15 (1/2”) – DN25 (1”)

Pressure Ratings:

• Up to 40 bar

Operating Temperature:

• Maximum 400 ºC

Applications:

• Drying Units

• Pressing Units

• Steam-Jacketed Pipes

• Irons
