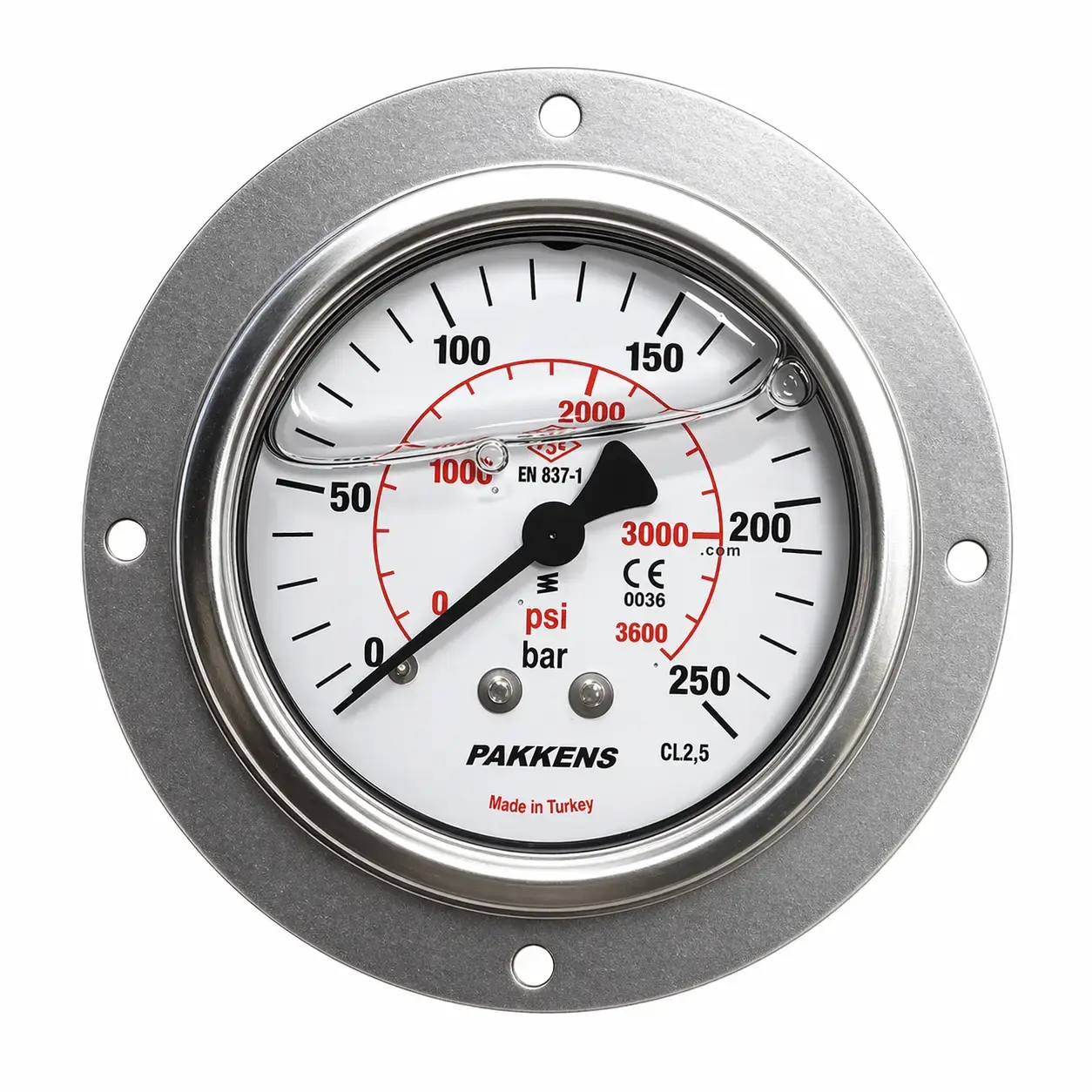

The Pakkens Q63 pressure gauge features a rear connection with a front flange design and CL 2.5 accuracy class. Filled with glycerin for vibration damping, it provides precise and reliable pressure measurement and is well-suited for industrial applications.

Product Specifications

Model: Pakkens Q63
Connection Type: Rear connection (G 1/4 inch thread)
Mounting Type: Front-flanged
Dial Diameter: 63 mm
Pressure Range: 0 – 600 bar
Accuracy Class: CL 2.5 (±2.5%)
Filling Liquid: Glycerin (for vibration damping and durability)
Max Fluid Temperature: Up to +60°C
Protection Rating: IP65 (dust and water resistant)
Body Material: Stainless steel (AISI 304)
Mechanism Material: Brass
Cover: Stainless steel (AISI 304)
Window Material: Polycarbonate
Pressure Element: Copper alloy
Dial: Aluminum
Pointer: Plastic
Joining Method: Brazed
Standards Compliance: EN 837-1
