Pakkens Panel Mount Off-Center Glycerin-Filled CL1 Pressure Gauge Q160 315 BAR

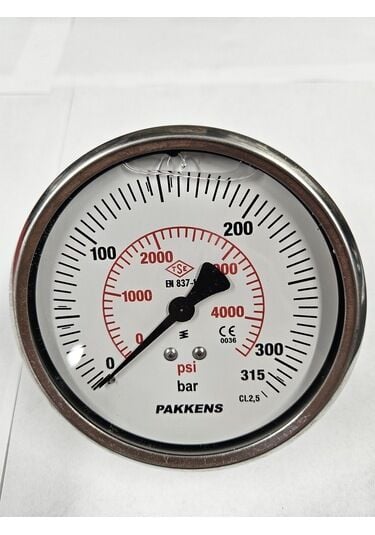

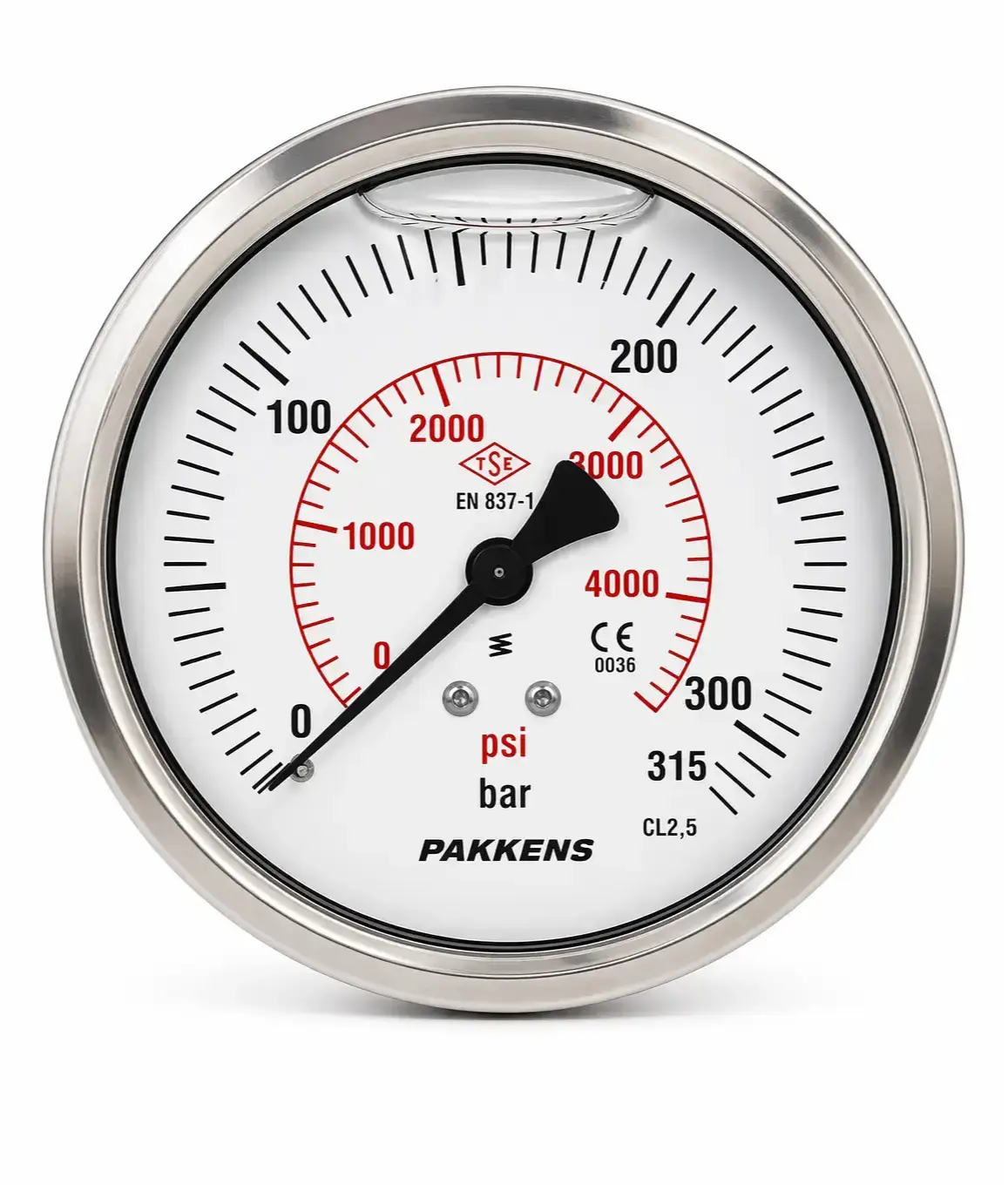

The Pakkens Q160 Panel Mount Off-Center Glycerin-Filled CL1 Pressure Gauge provides precise and reliable measurement at high pressures with a capacity of 315 BAR. It is a durable, glycerin-filled pressure indicator designed for industrial panels.

Pressure Gauge Product Specifications:

• Model: Pakkens Q160

• Connection Type: Off-Center Panel Mount (G1/2 inch)

• Dial Diameter: 160 mm

• Pressure Range: 0 – 315 bar

• Accuracy Class: CL 1.0 (±1%)

• Filling: Glycerin (for vibration damping and long service life)

• Fluid Temperature: Maximum +60°C

• Protection Class: IP41 (dust and splash resistant)

• Case Material: Stainless Steel (AISI 304)

• Movement: Brass

• Bezel: Stainless Steel (AISI 304)

• Window: Polycarbonate

• Pressure Element: Copper Alloy

• Dial: Aluminum

• Connection Method: Brazed

• Compliance: Complies with EN 837-1 standard
