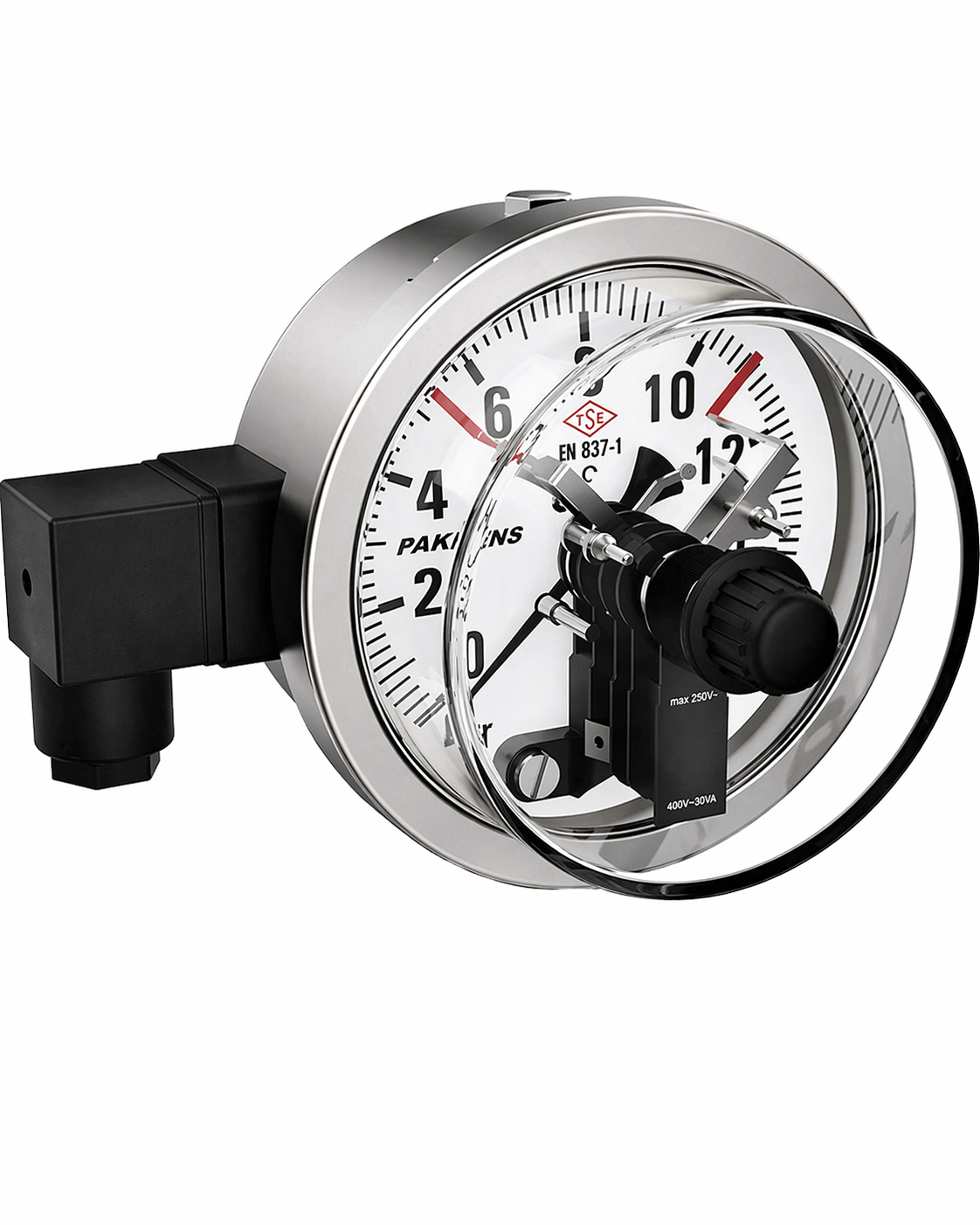

Pakkens Panel Mount Liquid-Filled Single Contact CL1 Normally Closed Pressure Gauge Q100 400 BAR

Pakkens Q100 Panel Mount Liquid-Filled Single Contact CL1 Pressure Gauge provides precise and reliable measurement at high pressures with a capacity of 400 BAR. Featuring a normally closed contact and a durable glycerin-filled design, it is an ideal pressure indicator for industrial applications.

Pressure Gauge Product Specifications:

• Model: Pakkens Q100

• Connection Type: Panel Mount (Rear Connection)

• Dial Diameter: 100 mm

• Pressure Range: 0 – 400 bar

• Accuracy Class: CL 1.0 (±1%)

• Liquid Filling: Glycerin-filled (for vibration damping and extended service life)

• Contact Type: Single Contact

• Contact Status: Normally Closed

• Fluid Temperature: Maximum +60°C

• Protection Class: IP41 (dust and splash resistant)

• Case Material: Stainless Steel (AISI 304)

• Movement: Brass

• Bezel: Stainless Steel (AISI 304)

• Window: Polycarbonate

• Pressure Element: Copper Alloy

• Dial: Aluminum

• Connection Method: Brazed

• Compliance: Conforms to EN 837-1 standard
