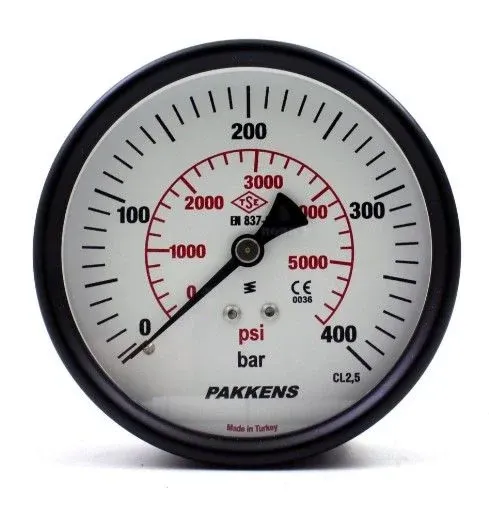

Pakkens Eksenden Kaçık Pano Tip CL1 Manometre Q100 400BAR

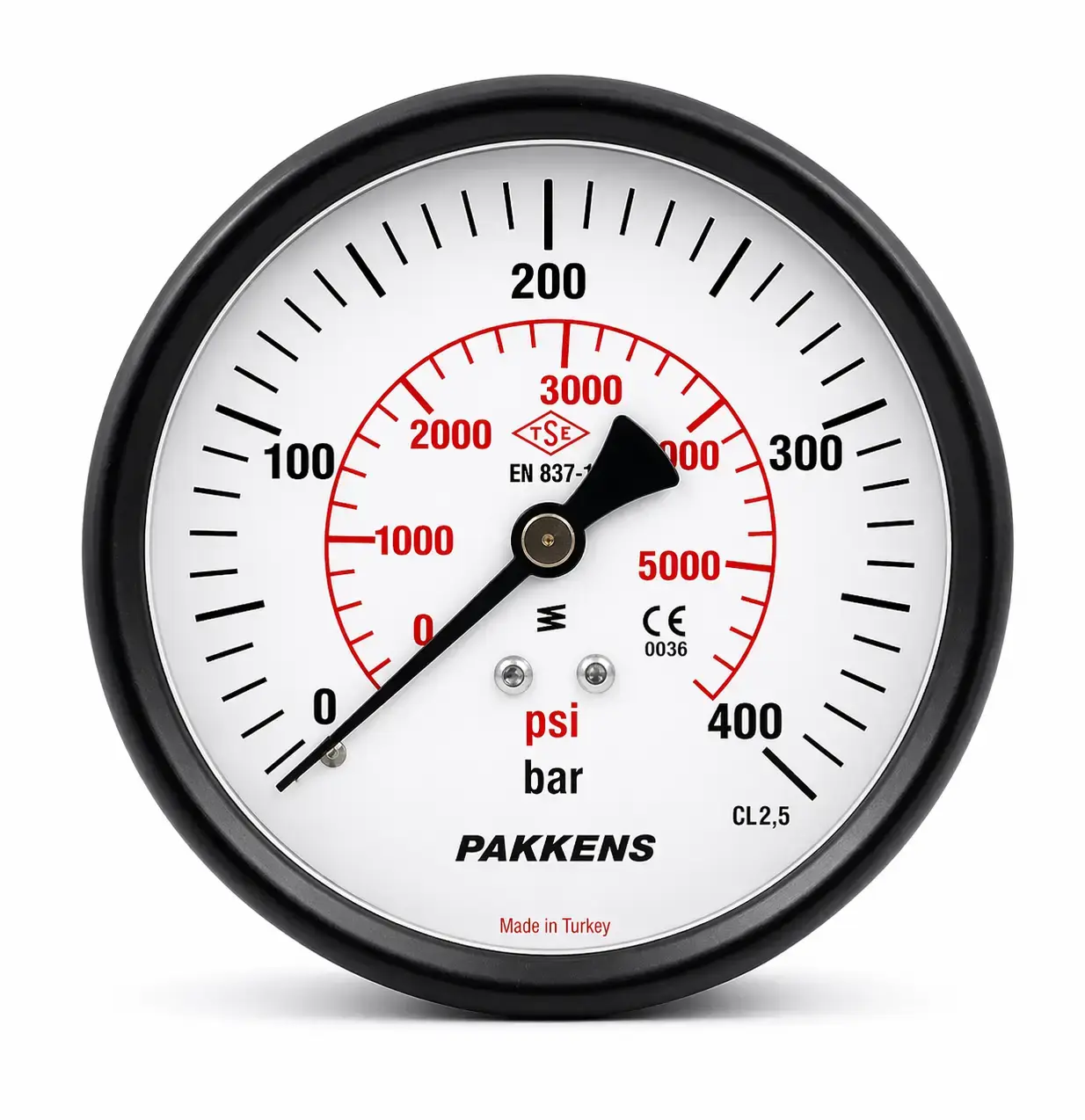

Pakkens Q100 Series Off-Center Panel Mount Manometer
The Pakkens Q100 series off-center panel mount manometer is designed to provide accurate and reliable measurement in high-pressure applications. It delivers clear and stable readings even at high pressures up to 400 BAR.
The off-center (eccentric) dial design allows for a more compact installation within panels and improves ergonomic use. With a CL1 accuracy class (±1% accuracy), it ensures reliable data for industrial processes.
Featuring a large 100 mm diameter dial, the gauge offers easy readability from a distance. Typically constructed with a stainless steel body and internal components, this model provides maximum durability against harsh environmental conditions.
Technical Specifications
| Feature | Value |
|---|---|
| Model | Q100 Off-Center Panel Mount |
| Pressure Range | 0 – 400 BAR |
| Accuracy Class | CL1 (±1% accuracy) |
| Type | Dry type (optional glycerin-filled available) |
| Dial Diameter | 100 mm |
| Mounting Type | Panel mount (flush installation) |
| Dial Design | Off-center (eccentric) |
| Connection Type | Rear connection (center or bottom eccentric) |
| Connection Size | G 1/2” BSP (optional sizes available) |
| Material | Stainless steel body and internal parts |
| Operating Temperature | -20°C to +60°C |
| Protection Class | IP65 |
| Standard | EN 837-1 |
Key Advantages
✅ High pressure resistance: accurate and safe measurement up to 400 BAR
✅ Off-center panel mount design: easier installation and space-saving in control panels
✅ CL1 accuracy class: reliable data with ±1% precision
✅ Large and clear 100 mm dial for easy readability
✅ Stainless steel construction for long-lasting durability in harsh environments
✅ Ideal for vibration-free environments (dry type)
Applications
-
High-pressure hydraulic systems
-
Compressors and testing systems
-
Power generation plants
-
Industrial machinery and process lines
-
Chemical, petrochemical, and heavy industry applications
-
Panel measurement systems and control panels
