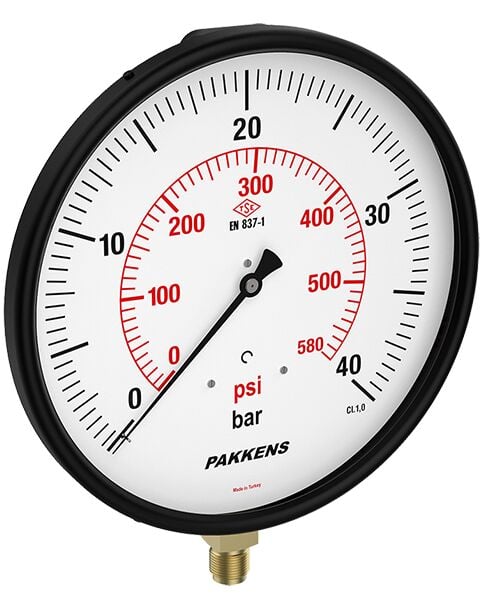

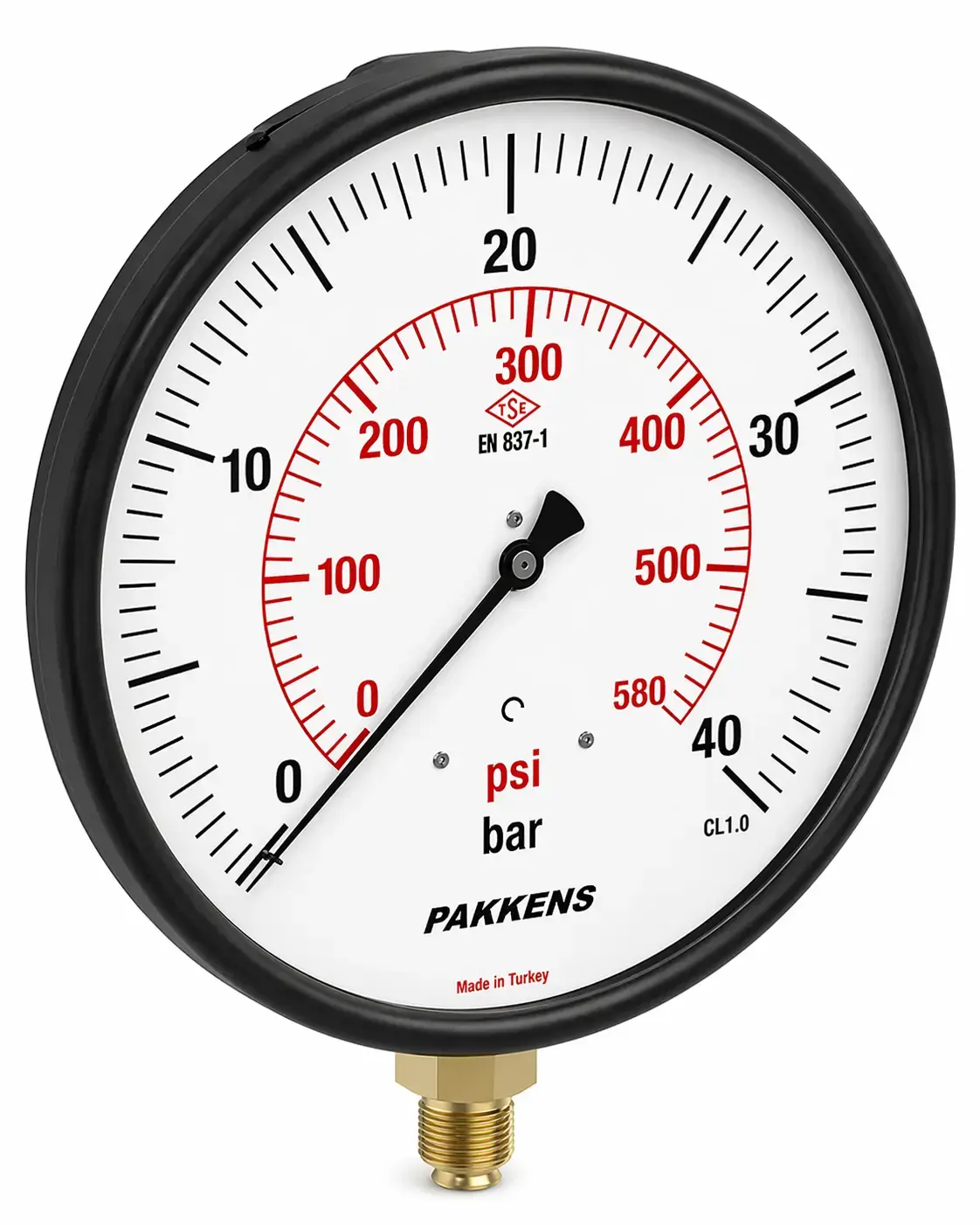

Pakkens Alttan Bağlantılı Gliserinli CL1 Manometre Q160 40BAR

The Pakkens Q160 Bottom Connection Glycerin-Filled CL1 Pressure Gauge provides precise and reliable pressure measurement with a capacity of 40 BAR. Its stainless steel construction and durable design make it an ideal pressure indicator for industrial applications.

Pressure Gauge Product Specifications:

• Model: Pakkens Q160

• Connection Type: Bottom Connection (G1/2 inch)

• Dial Diameter: 160 mm

• Pressure Range: 0 – 40 bar

• Accuracy Class: CL 1.0 (±1%)

• Filling: Glycerin (for vibration damping and extended service life)

• Fluid Temperature: Maximum +60°C

• Protection Class: IP65 (dust and water splash resistant)

• Case Material: Stainless Steel (AISI 304)

• Movement: Brass

• Bezel: Stainless Steel (AISI 304)

• Window: Polycarbonate

• Pressure Element: Copper Alloy

• Dial: Aluminum

• Connection Method: Brazed

• Compliance: Complies with EN 837-1 standard
