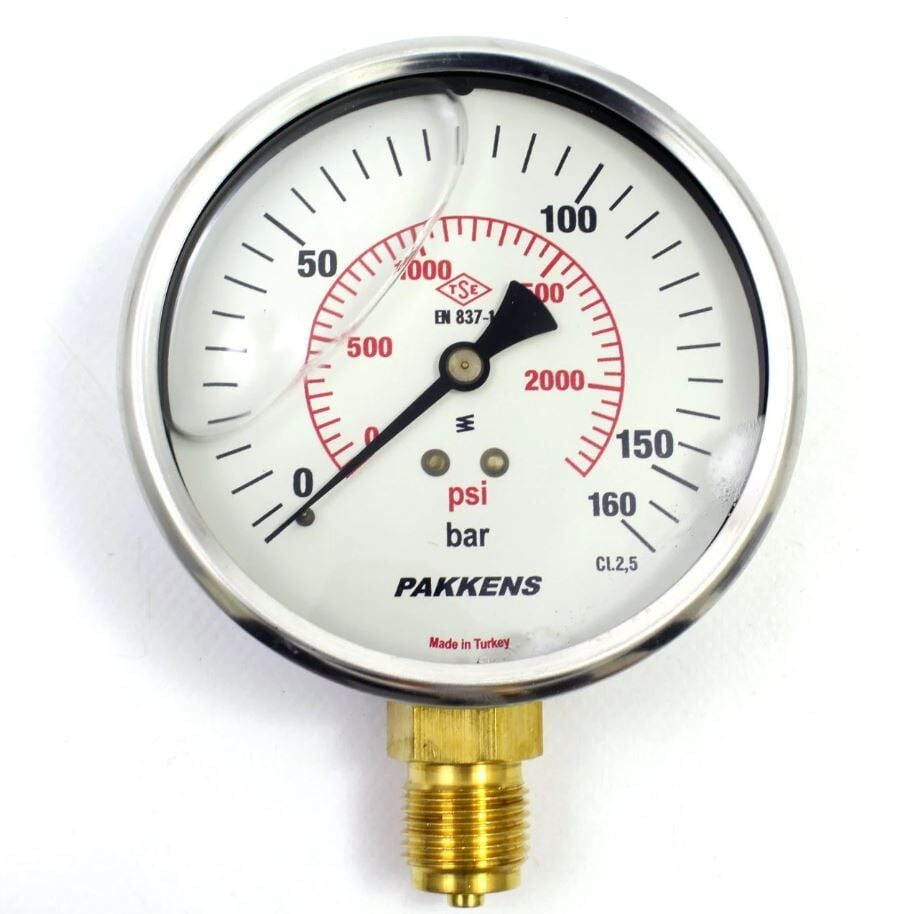

Pakkens Q100 Bottom Connection Glycerin-Filled CL1 Pressure Gauge
The Pakkens Q100 bottom connection glycerin-filled CL1 pressure gauge offers high durability and precise pressure measurement. It is an ideal, stainless, and reliable pressure indicator for industrial applications.
The Pakkens Q100 series gauge is designed for high-pressure applications and industrial systems, providing maximum reliability and accuracy. Its glycerin-filled construction reduces vibration and shock effects, stabilizing the pointer movement. The fully stainless steel construction ensures long-lasting use in corrosive environments.
The bottom connection design allows for easy installation and adaptability to various mounting conditions. The CL1 accuracy class guarantees measurements with ±1% accuracy.
Technical Specifications
| Feature | Description |
|---|---|
| Dial Diameter | 100 mm |
| Connection Type | Bottom connection |
| Connection Thread Size | (e.g., 1/4”, ½” BSP or NPT – customizable per customer needs) |
| Material | Fully stainless steel case and internal parts |
| Filling Type | Glycerin-filled (protects against vibration and shock) |
| Accuracy Class | CL1 (±1% accuracy) |
| Operating Temperature | Approximately −20 °C to +60 °C; wider ranges in special series |
| Measurement Units | Compatible with Bar / Psi / kPa, etc. |
| Pressure Range | (e.g., 0–10 bar, 0–16 bar, 0–25 bar, custom options available) |
| Protection Rating | Available in IP65–IP67 rated models |
Advantages
-
Vibration and Shock Resistance: Glycerin filling minimizes pointer fluctuations for accurate readings.
-
High Corrosion Resistance: Fully stainless steel construction ensures longevity in harsh environments.
-
Easy Installation: Bottom connection facilitates mounting on panels and various orientations.
-
High Accuracy: CL1 class provides ±1% accuracy, offering reliable values in critical applications.
-
Versatility: Available in various pressure ranges and measurement units; suitable for pump-compressor systems, HVAC, chemical plants, water and wastewater sectors, and more.
Applications
-
Industrial pipelines and pressurized systems
-
Pump and compressor applications
-
Chemical and petrochemical plants
-
Food and beverage industry (using stainless steel compliant with relevant standards)
-
HVAC systems
-
General mechanical systems, hydraulic and pneumatic lines
