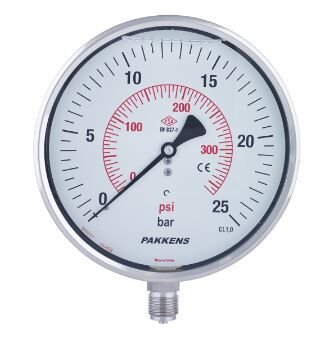

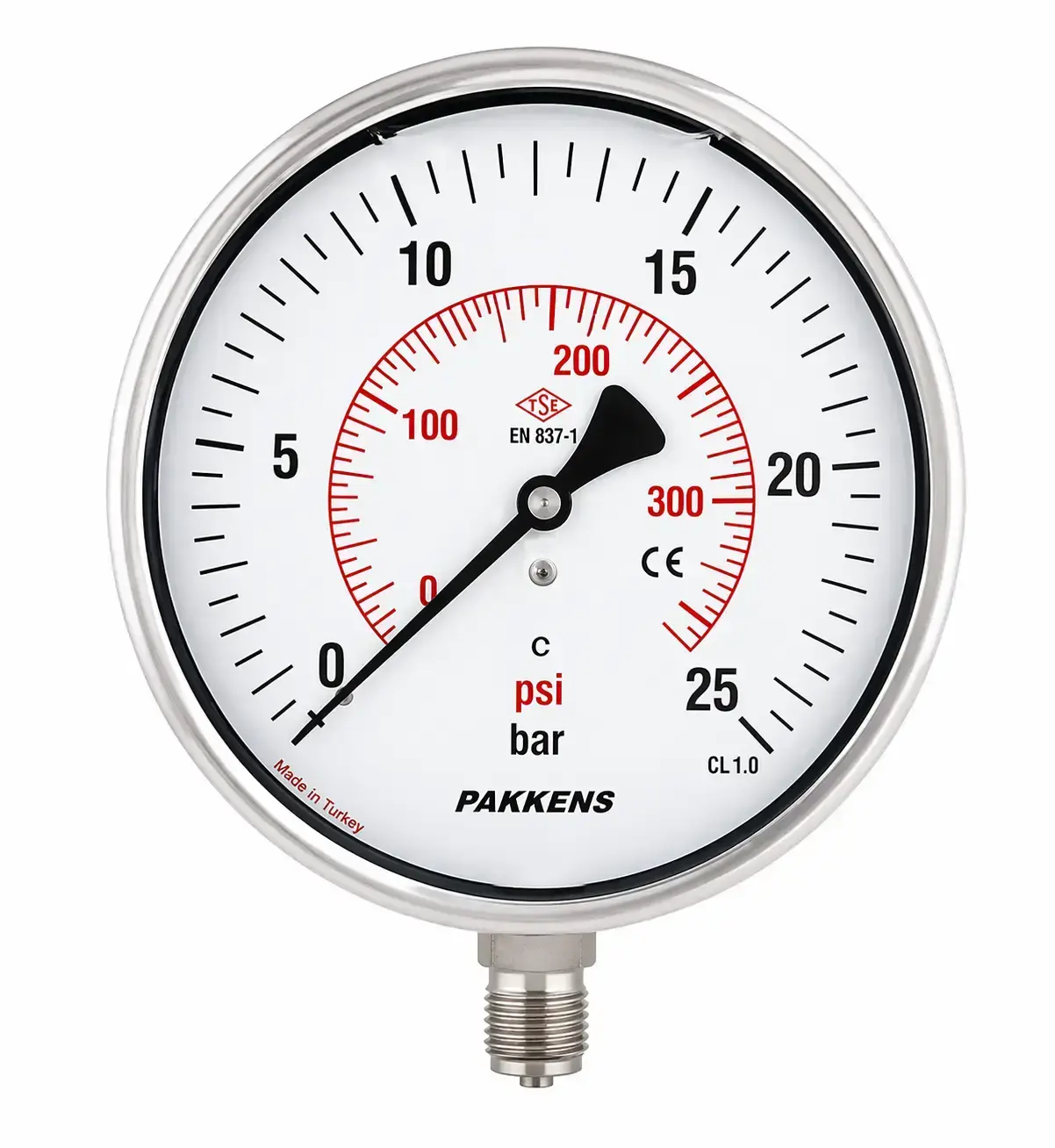

Pakkens Alttan Bağlantılı Komple Paslanmaz Kuru Tip CL1 Manometre Ø160 25 Bar

The Pakkens Ø160 Bottom Connection Full Stainless Steel Dry Type CL1 Pressure Gauge offers high durability and precise pressure measurement with a capacity of 25 Bar. Its stainless steel construction ensures long-lasting performance in industrial environments.

Pressure Gauge Product Features

• Product Type: Full Stainless Steel Dry Type Pressure Gauge

• Model / Series: Pakkens Ø160, Accuracy Class CL1

• Connection: Bottom connection (bottom outlet)

• Measurement Range: 0 – 25 Bar

• Case Diameter: 160 mm

• Accuracy Class: CL1, with up to ±1% full-scale tolerance

• Materials:

  • Case: Full stainless steel

  • Connection and fittings: Durable metal alloys

• Mechanism Type: Bourdon tube, dry type (non-liquid filled)

• Dial / Glass: Large, easy-to-read dial with highly accurate pointer

• Operating Temperature: Typically up to +60 °C; special temperature ranges available upon request

• Protection / Durability:

  • Robust construction for mechanical shocks and external impacts

  • Protection against dust and splash water (e.g., IP41 or equivalent)

• Standards Compliance: Manufactured according to EN 837-1 pressure gauge standards

Application Areas

• Monitoring pressure lines in industrial plants

• Pump outlets, hydraulic circuits, air/water pressure control

• Heating and cooling (HVAC) systems

• Water distribution and pumping systems

• Safe pressure measurements in process equipment

 Advantages

• Full stainless steel body enhances durability and provides superior protection against corrosion, chemicals, and humid environments.

• Dry type design eliminates risks related to filling liquid leakage or evaporation; ideal for environments with temperature fluctuations and low vibration.

• CL1 accuracy class ensures high precision in measurements.

• Large Ø160 case diameter allows easy reading of values even from a distance.
