Pakkens Bottom Connection Dual Contact Normally Closed/Normally Open Pressure Gauge Q160 16 Bar
(0) Comment - 0 Score
Category
Stock Code
G7WE3VVMXS
Price
15.259,38 TL + VAT
*Installments starting from 1.975,63 TL!
18.311,26 TL

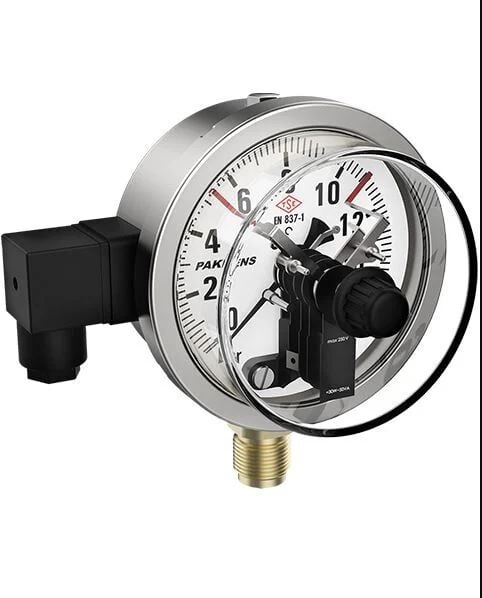

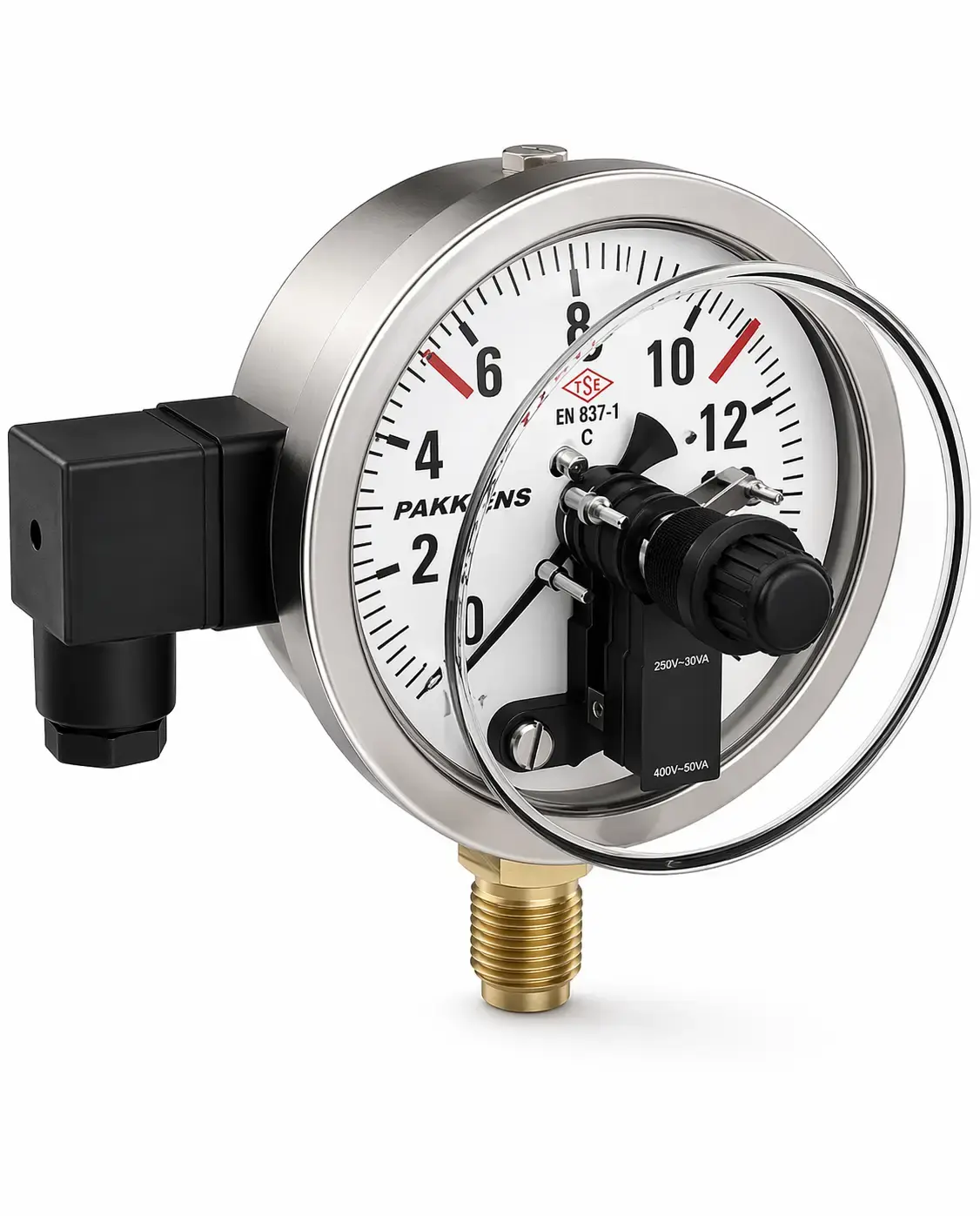

Pakkens Q160 Bottom Connection Dual Contact Pressure Gauge offers both Normally Closed (NC) and Normally Open (NO) contact options with a 16 BAR pressure capacity. It is ideal for precise and reliable pressure measurement in industrial applications.
Pressure Gauge Product Specifications:
- Model: Pakkens Q160
- Connection Type: Bottom Connection (G1/2 inch)
- Dial Diameter: 160 mm
- Pressure Range: 0 – 16 bar
- Accuracy Class: CL 1.0 (±1%)
- Filling Type: Dry (suitable for use in vibrating environments)
- Contact Type: Dual Contact
- Contact Status: Normally Closed / Normally Open
- Fluid Temperature: Maximum +60°C
- Protection Class: IP41 (resistant to dust and water splashes)
- Case Material: Stainless Steel (AISI 304)
- Movement: Brass
- Bezel: Stainless Steel (AISI 304)
- Window: Polycarbonate
- Pressure Element: Copper alloy
- Dial: Aluminum
- Connection Method: Brazed
- Compliance: Conforms to EN 837-1 standard
