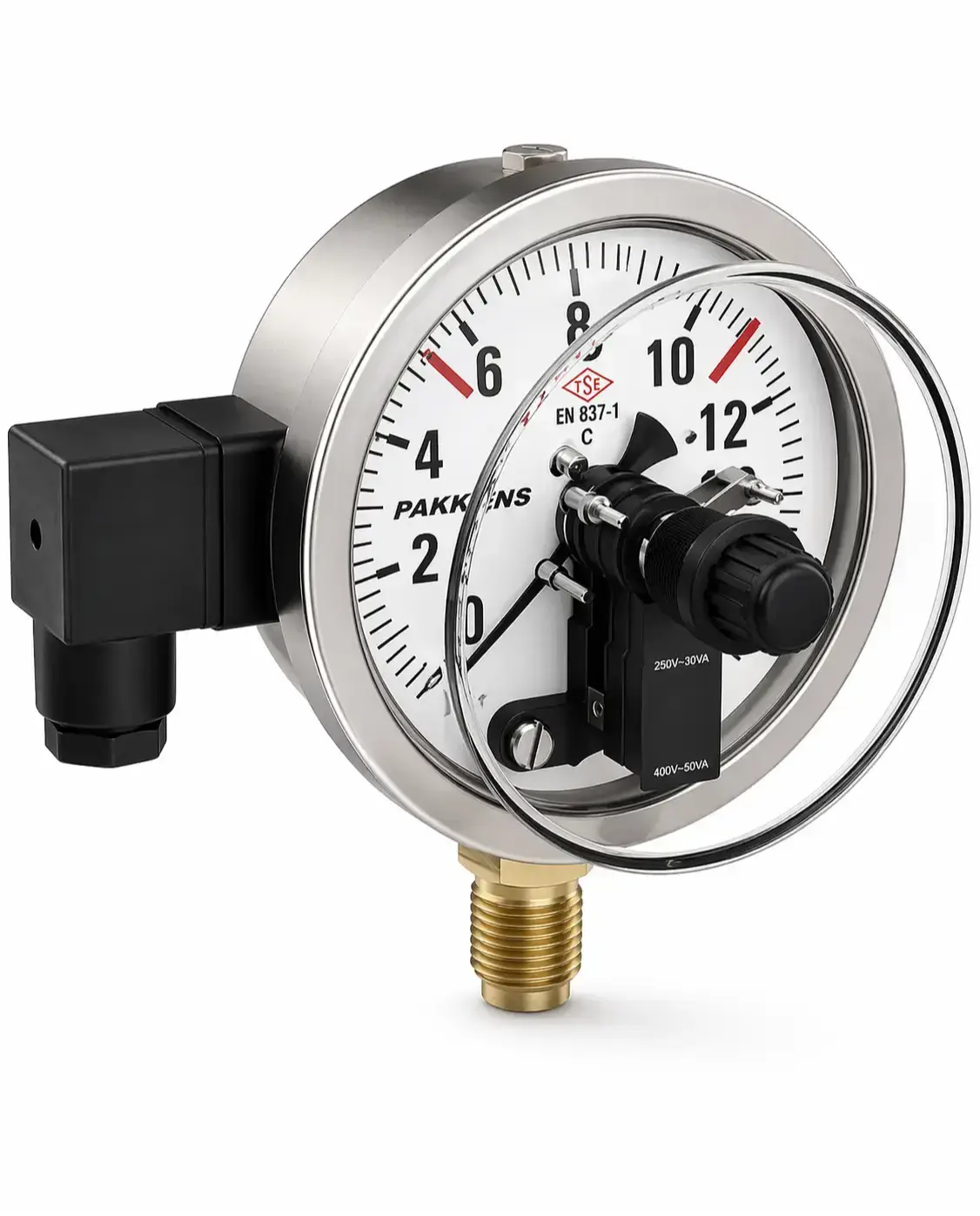

Pakkens Bottom Connection Dual Contact Normally Closed/Normally Open Pressure Gauge Q100 100 BAR

Pakkens Q100 Bottom Connection Dual Contact Pressure Gauge offers Normally Closed and Normally Open contact options with a pressure capacity of up to 100 BAR. Designed for industrial pressure measurement applications, it ensures precise, reliable, and multifunctional performance.

Pressure Gauge Product Specifications:

• Model: Pakkens Q100
• Connection Type: Bottom Connection (G1/2 inch)
• Dial Diameter: 100 mm
• Pressure Range: 0 – 100 bar
• Accuracy Class: CL 1.0 (±1%)
• Liquid Filling: Glycerin-filled (for vibration damping and extended service life)
• Contact Type: Dual Contact
• Contact Function: Normally Closed / Normally Open
• Fluid Temperature: Max. +60°C
• Protection Class: IP65 (dust and water resistant)
• Case Material: Stainless Steel (AISI 304)
• Movement: Brass
• Bezel: Stainless Steel (AISI 304)
• Window: Polycarbonate
• Pressure Element: Copper alloy
• Dial: Aluminum
• Connection Method: Brazed
• Compliance: Conforms to EN 837-1 standard
