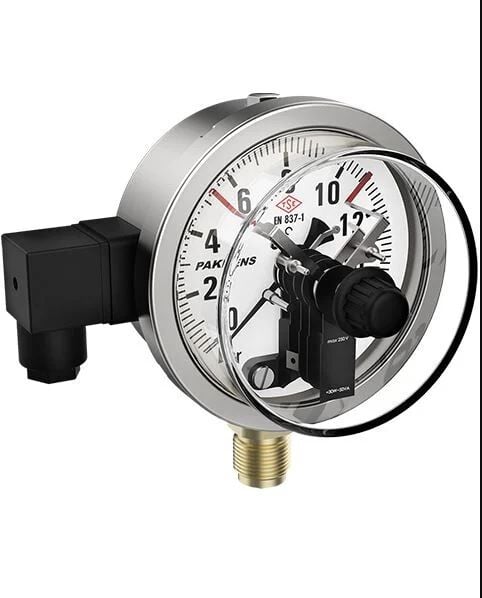

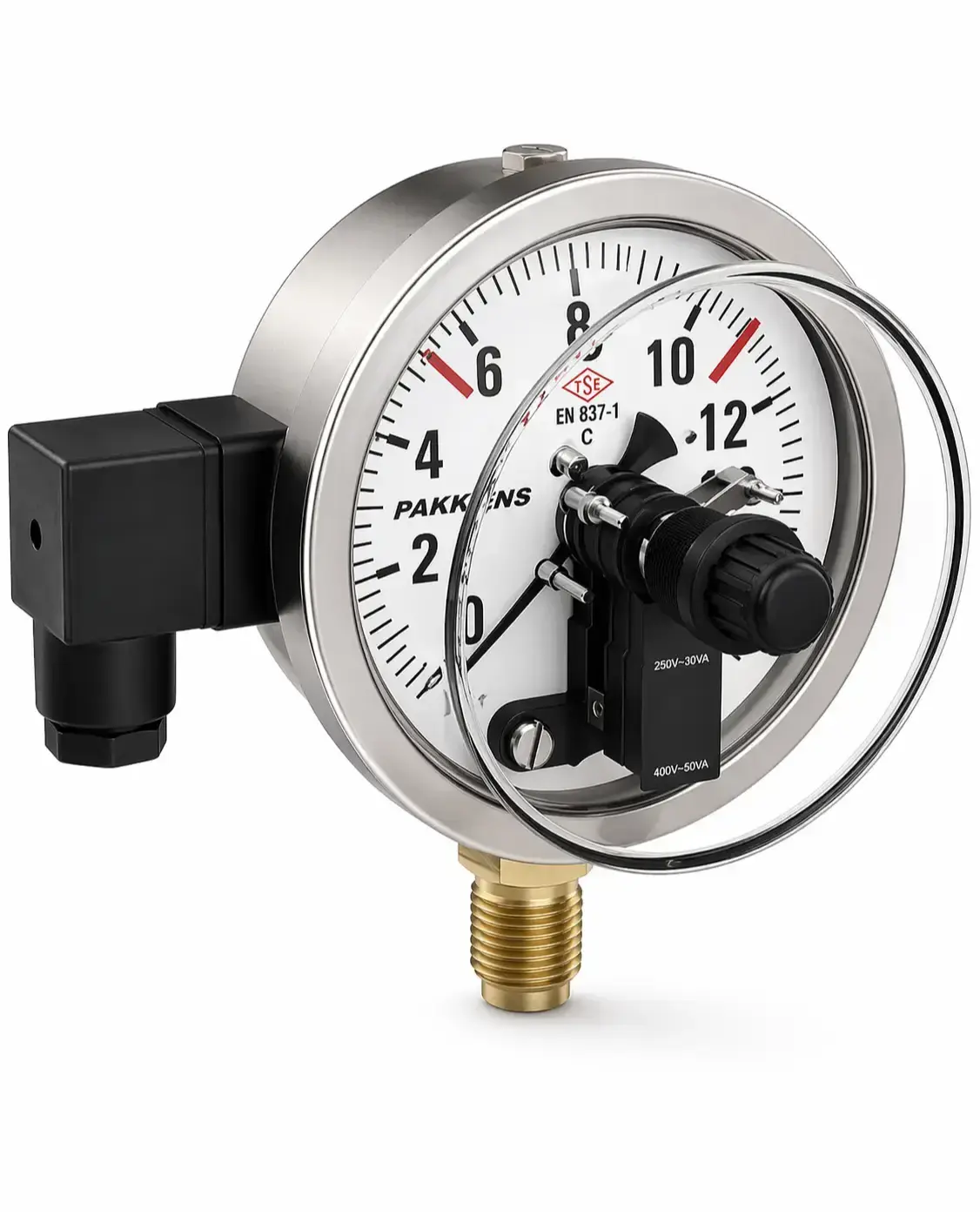

Pakkens Bottom Connection Dry Type Single Contact CL1 Normally Closed Pressure Gauge Q160 400 BAR
(0) Comment - 0 Score
Category
Stock Code
QYL1Z85W0M
Price
10.209,72 TL + VAT
*Installments starting from 1.321,85 TL!
12.251,66 TL
Pakkens Q160 Bottom Connection Dry Type Single Contact CL1 Pressure Gauge provides precise and reliable measurement at high pressures with a capacity of 400 BAR. Featuring a normally closed contact, it delivers dependable performance in industrial applications.
Pressure Gauge Product Specifications:
- Model: Pakkens Q160
- Connection Type: Bottom Connection (G1/2 inch)
- Dial Diameter: 160 mm
- Pressure Range: 0 – 400 bar
- Accuracy Class: CL 1.0 (±1%)
- Filling Type: Dry Type (suitable for use in vibrating environments)
- Contact Type: Single Contact
- Contact Status: Normally Closed
- Fluid Temperature: Maximum +60°C
- Protection Class: IP41 (dust and splash resistant)
- Case Material: Stainless Steel (AISI 304)
- Movement: Brass
- Bezel: Stainless Steel (AISI 304)
- Window: Polycarbonate
- Pressure Element: Copper Alloy
- Dial: Aluminum
- Connection Method: Brazed
- Compliance: Complies with EN 837-1 standard
