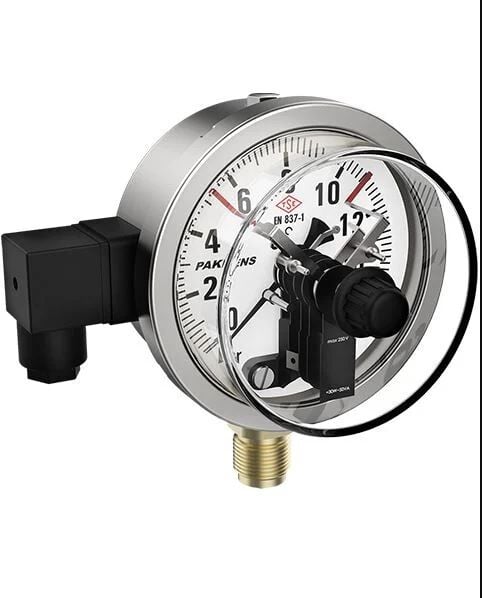

Pakkens Alttan Bağlantılı Kuru Tip Tek Kontaklı CL1 Normalde Kapalı Manometre Q100 160BAR

The Pakkens Q100 Bottom Connection Dry Type Single Contact CL1 Pressure Gauge provides precise and reliable pressure measurement with a capacity of 160 BAR. Featuring a normally closed contact, it is an ideal and durable pressure indicator for industrial applications.

Pressure Gauge Product Specifications:

• Model: Pakkens Q100

• Connection Type: Bottom Connection (G1/2 inch)

• Dial Diameter: 100 mm

• Pressure Range: 0 – 160 bar

• Accuracy Class: CL 1.0 (±1%)

• Filling Type: Dry Type (suitable for use in vibrating environments)

• Contact Type: Single Contact

• Contact Status: Normally Closed

• Fluid Temperature: Maximum +60°C

• Protection Class: IP41 (dust and splash resistant)

• Case Material: Stainless Steel (AISI 304)

• Movement: Brass

• Bezel: Stainless Steel (AISI 304)

• Window: Polycarbonate

• Pressure Element: Copper Alloy

• Dial: Aluminum

• Connection Method: Brazed

• Compliance: Complies with EN 837-1 standard
