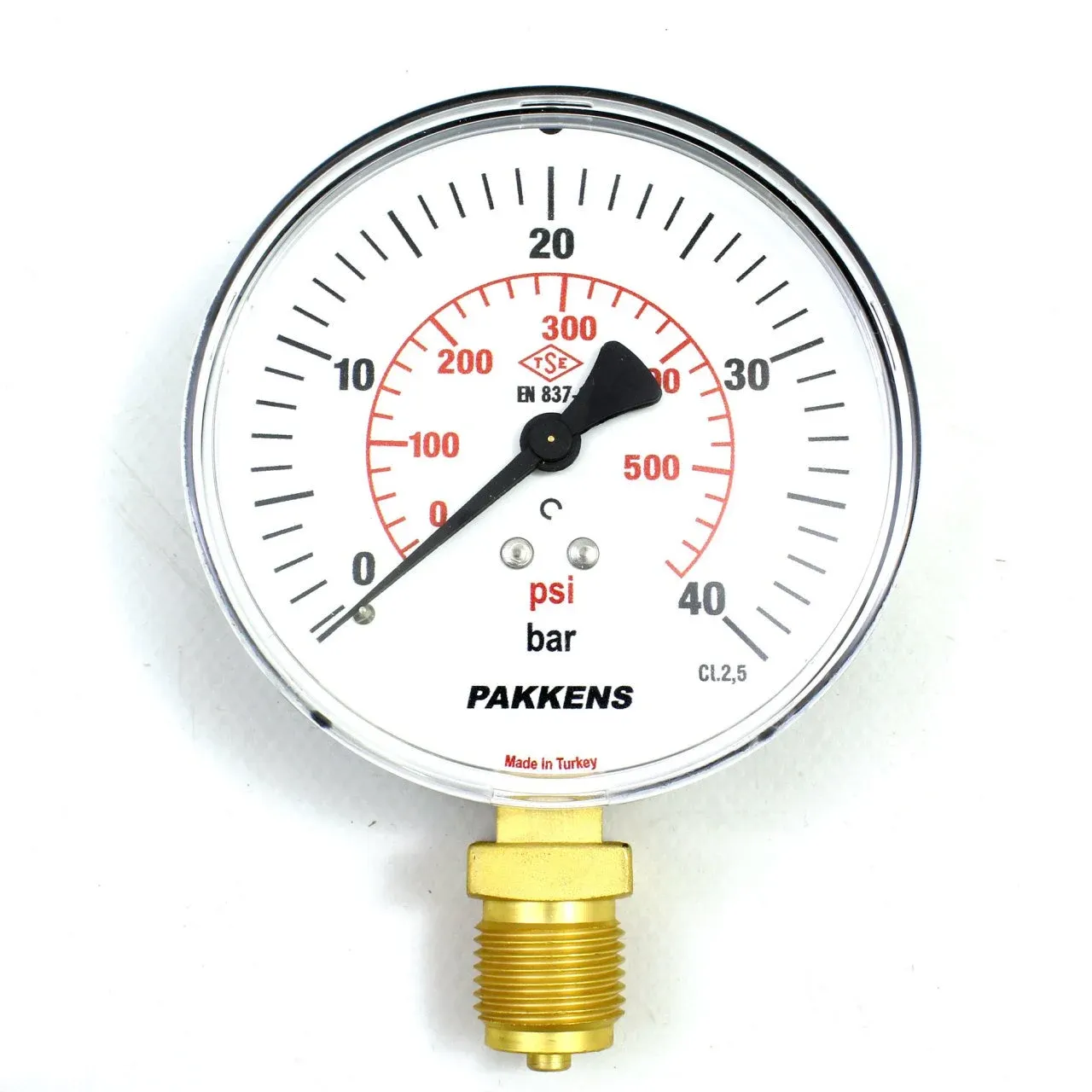

Pakkens Alttan Bağlantılı Kuru Tip CL1 Manometre Q160 40 Bar

Pakkens Q160 Bottom Connection Dry Type CL1 Pressure Gauge offers precise and reliable pressure measurement with a capacity of 40 Bar. Its robust construction and high-quality materials ensure long-lasting performance in industrial applications.

Pressure Gauge Product Features

• Brand / Series: Pakkens Q-160

• Type: Dry Type (non-liquid filled)

• Connection Type: Bottom connection

• Measurement Range: 0 → 40 Bar

• Case Diameter: Ø160 mm

• Accuracy Class: CL 1 (≈ ±1%)

• Pressure Element: Copper alloy Bourdon tube mechanism

• Dial: Metal or aluminum

• Pointer: Metal, finely processed for precise reading

• Connection: Typically G1/2" threaded (bottom outlet)

• Case Material: Metal; stainless steel option available

• Protection / Durability: IP41 rated for protection against dust and light splashes

• Standards Compliance: EN 837-1 (general pressure gauge standard)

• Fluid & Ambient Temperature: Suitable up to approximately +60 °C, depending on ambient conditions

Usage & Advantages

• Suitable for medium to high-pressure systems (up to 40 Bar), such as hydraulic lines, compressed air systems, water pumps, etc.

• Dry type design is preferred in non-vibrating or non-pulsating applications; lighter and requires less maintenance compared to liquid-filled versions

• CL1 accuracy class offers low reading error for better precision

• Large case diameter (160 mm) facilitates easy readability from a distance
