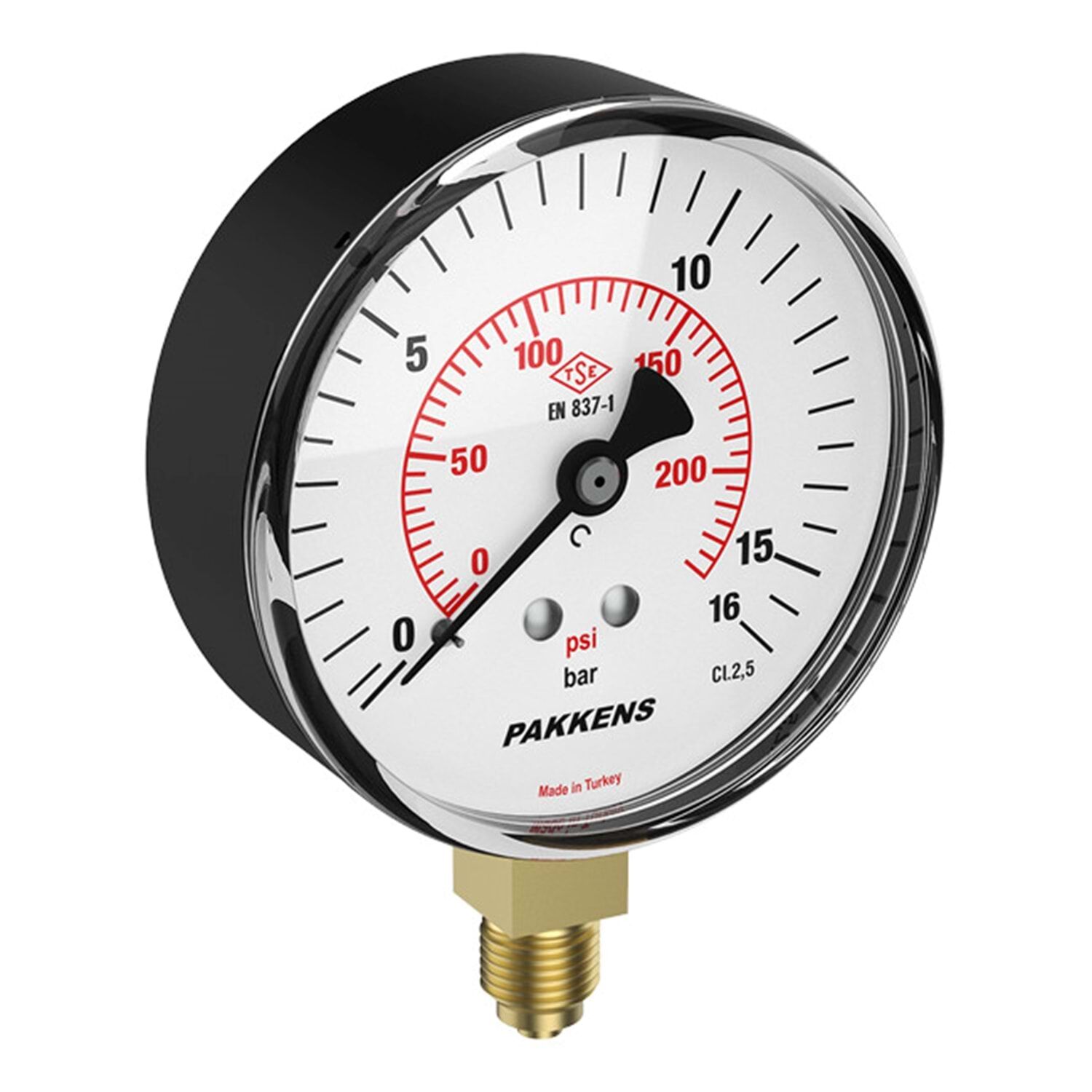

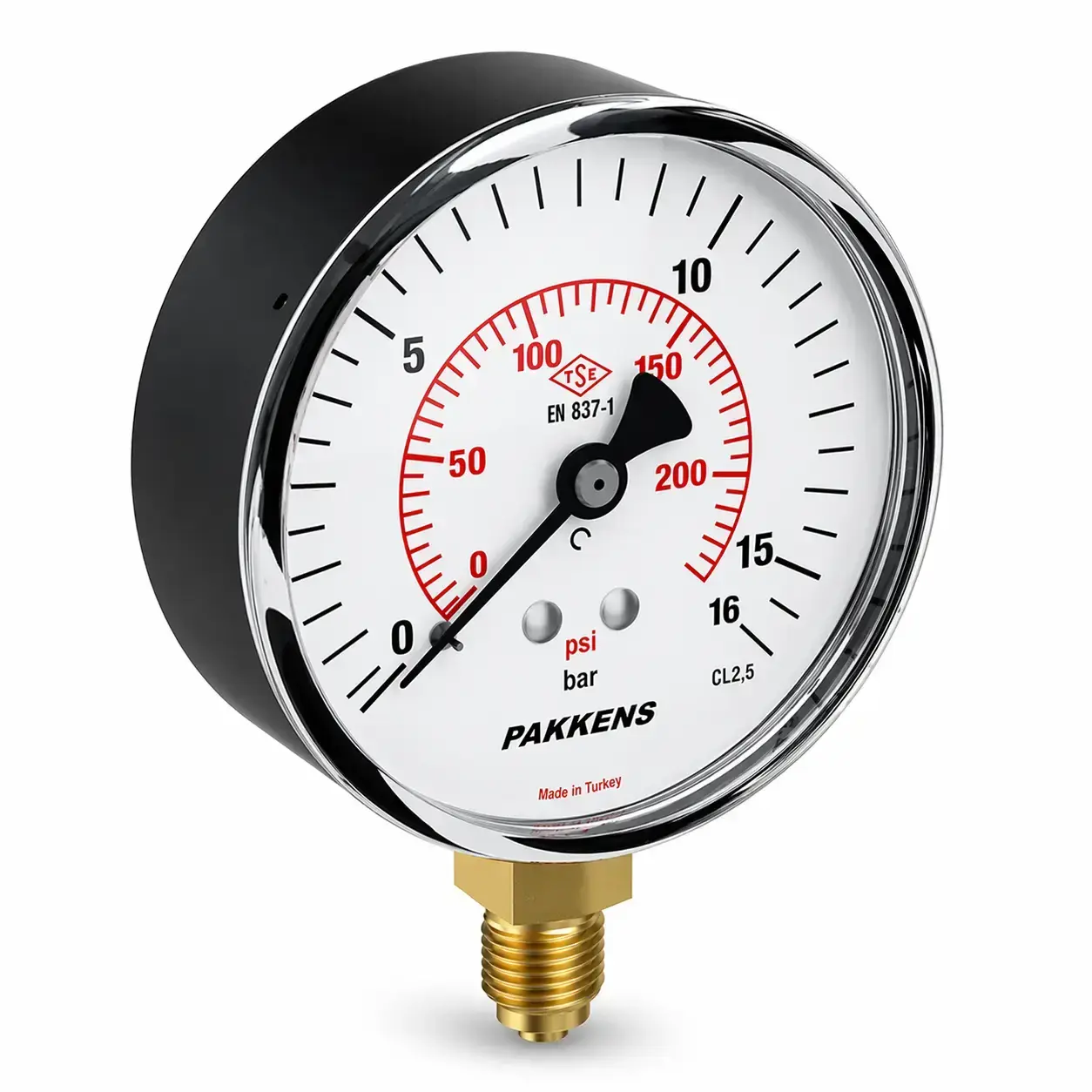

Pakkens Bottom Connection Dry Type All-Stainless CL1 Manometer Q100 16 BAR
Pakkens Q100 Series Dry Type Manometer
The Pakkens Q100 series dry type manometer is designed to meet the need for precise and reliable measurement in medium pressure applications. With a pressure range of 0 to 16 BAR, this model offers high accuracy for systems requiring process safety, featuring CL1 accuracy class (±1%).
Its dry type design is ideal for applications where glycerin-filled models are not preferred and vibrations are minimal. The fully stainless steel body and internal components ensure long service life and maximum corrosion resistance.
The bottom connection feature provides easy installation on panels and equipment. The 100 mm large dial ensures clear readability even from a distance.
Technical Specifications
| Feature | Value |
|---|---|
| Model | Pakkens Q100 |
| Pressure Range | 0 – 16 BAR |
| Accuracy Class | CL1 (±1% accuracy) |
| Display Type | Dry (glycerin-free) |
| Dial Diameter | 100 mm |
| Connection Type | Bottom connection |
| Connection Size | G 1/2” BSP (custom thread options available) |
| Material | All stainless steel (body and internal parts) |
| Operating Temperature | -20°C to +60°C |
| Protection Class | IP65 (dust and splash resistant) |
| Standard | EN 837-1 |
Advantages
✅ Accurate measurement up to 16 BAR pressure
✅ Reliable performance with CL1 accuracy class (±1%)
✅ Simple dry type design requiring less maintenance
✅ High durability with all stainless steel construction
✅ Large 100 mm dial for easy readability
✅ Easy installation with bottom connection
Applications
- Water systems, pumps, and hydrophores
- Industrial air and gas installations
- HVAC systems
- Process control panels
- Food, pharmaceutical, chemical, and petrochemical plants
- Laboratory and testing systems
