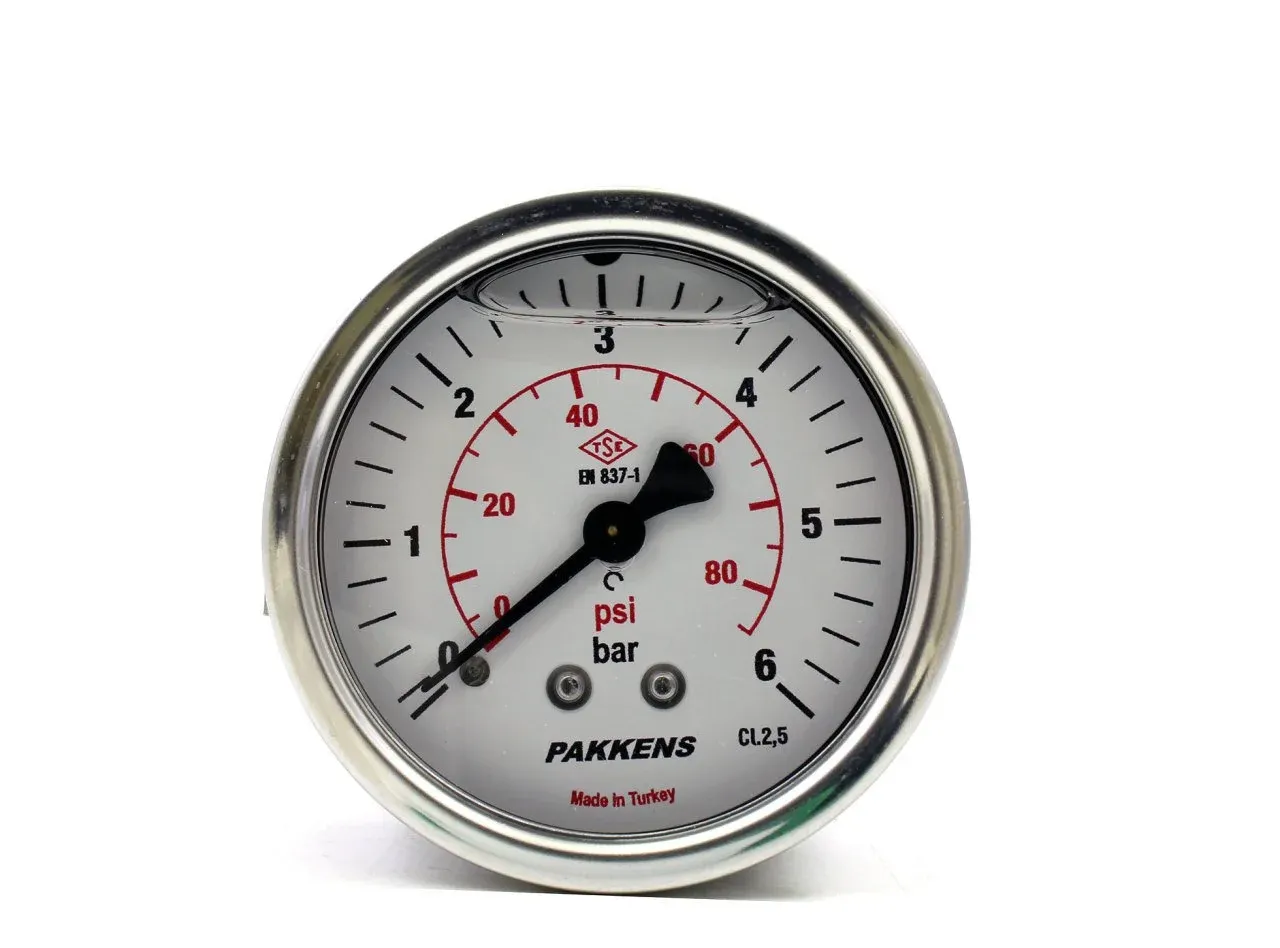

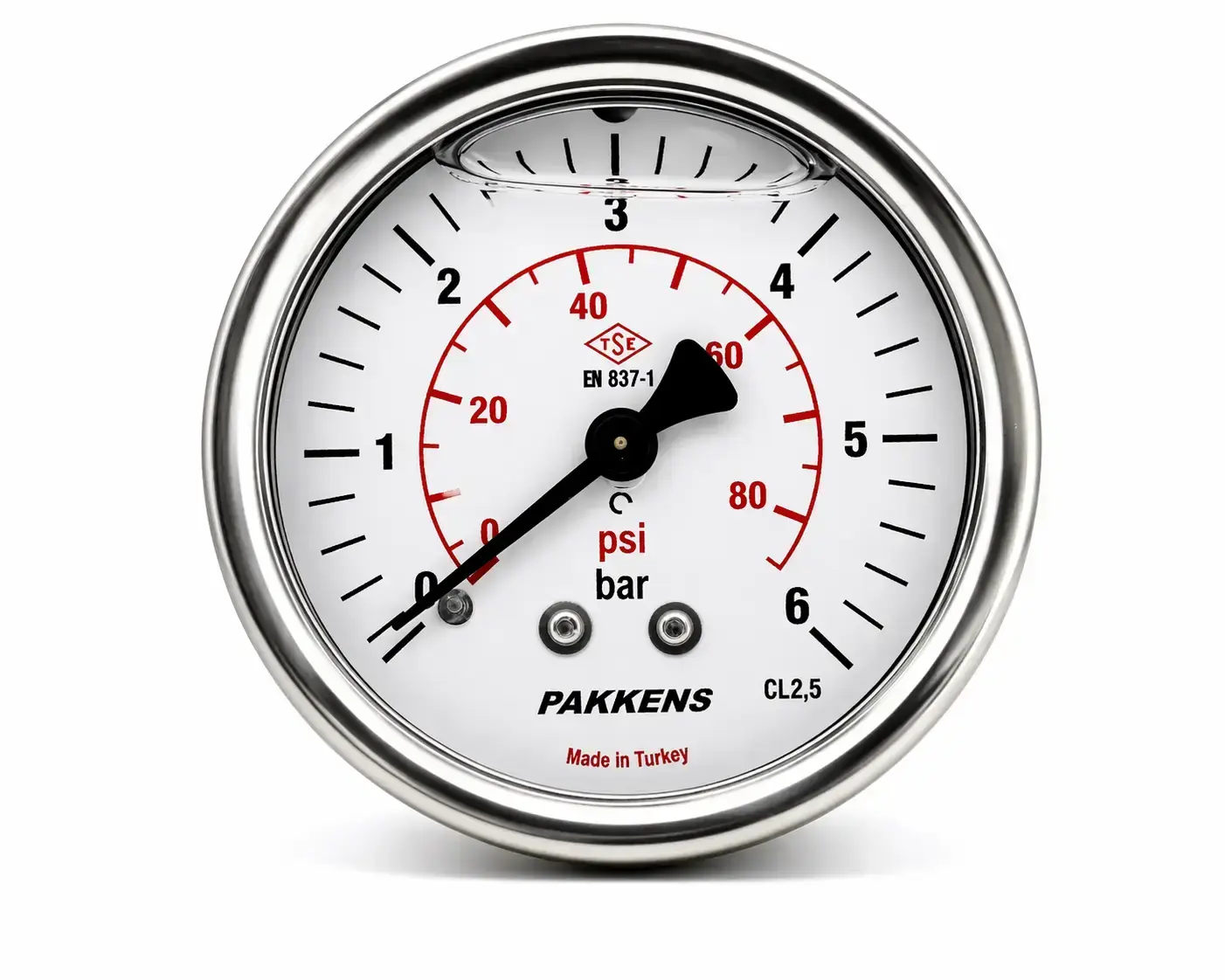

Pakkens Q100 Back Connection Panel Type Glycerin-Filled CL 1.6 Pressure Gauge
(0) Comment - 0 Score
Category
Stock Code
CLMDIZ1635
Price
3.740,63 TL + VAT
*Installments starting from 484,30 TL!
4.488,76 TL
Pakkens Q100 Back Connection Panel Type Glycerin-Filled CL1.6 Pressure Gauge
The Pakkens Q100 back connection panel type glycerin-filled CL1.6 pressure gauge provides precise and reliable pressure measurement. Its glycerin-filled design offers resistance to vibrations, making it ideal for use in industrial panels.
Pressure Gauge Product Features
- Model: Pakkens Q100
- Connection Type: Back connection (G1/4 inch thread)
- Mounting Type: Panel type
- Case Diameter: 100 mm
- Pressure Range: 0 – 16 bar (optional 10 bar or 25 bar versions available)
- Accuracy Class: CL 1.6 (±1.6%)
- Liquid Fill: Glycerin (for vibration damping and extended durability)
- Fluid Temperature: Maximum +60°C
- Protection Class: IP65 (dust and water resistant)
- Case Material: Stainless steel (AISI 304)
- Mechanism: Brass
- Cover: Stainless steel (AISI 304)
- Window: Polycarbonate
- Pressure Element: Copper alloy
- Dial: Aluminum
- Pointer: Plastic
- Joint: Soldered
- Standard Compliance: EN 837-1
