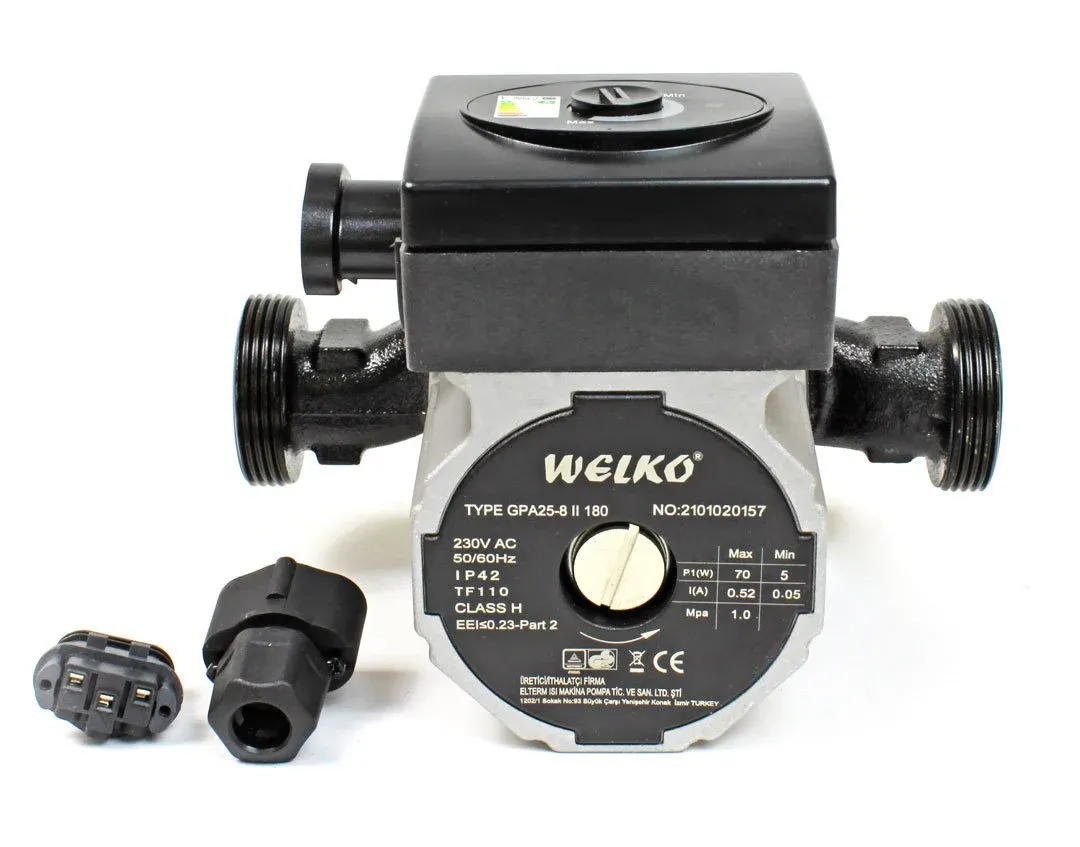

GPA25-8 II 180MM WELKO 1'' Circulation Pump, Frequency Controlled (Equivalent to PVO-26)
(0) Comment - 0 Score
Category
Stock Code
84ZEN12A6Y
Price
3.116,67 TL + VAT
*Installments starting from 403,51 TL!
3.740,00 TL
GPA Series Circulation Pumps
The GPA series circulators have an A energy class rating and feature high-tech design. Thanks to their permanent magnet motor and frequency converter, GPA series pumps come with digital displays that detect system changes and automatically provide cost-effective energy savings. They operate with high efficiency.
Applications of Circulation Pumps
-
Constant or variable flow hot water radiators
-
Variable temperature hot water radiators
-
Night setback hot water radiators
-
HVAC (Heating, Ventilation, and Air Conditioning) systems
-
Industrial circulation systems
-
Domestic hot water and drinking water systems
Circulation Pump Specifications
| Feature | Specification |
|---|---|
| Boiler Capacity | 25,000 – 40,000 kcal/h |
| Max. Head | 8 m |
| Max. Water Flow | 4.2 m³/h |
| Connection Length | 180 mm |
| Connection Type | Compression Fitting (1½") |
| Liquid Temperature | +2 °C to +110 °C |
| Voltage | 230V 50-60 Hz |
| Protection Class | IP42 |
| Model | GPA 25-8 180 mm |
| Boiler Capacity | 25,000 – 40,000 kcal/h |
| Voltage | 220V (Single Phase) |
| Pump Flange Distance | 180 mm |
| Connection Type | Compression Fitting |
| Connection Diameter | 1½" |
| Max. Pressure | 8 m |
| Max. Flow Rate | 4–6 m³/h |
