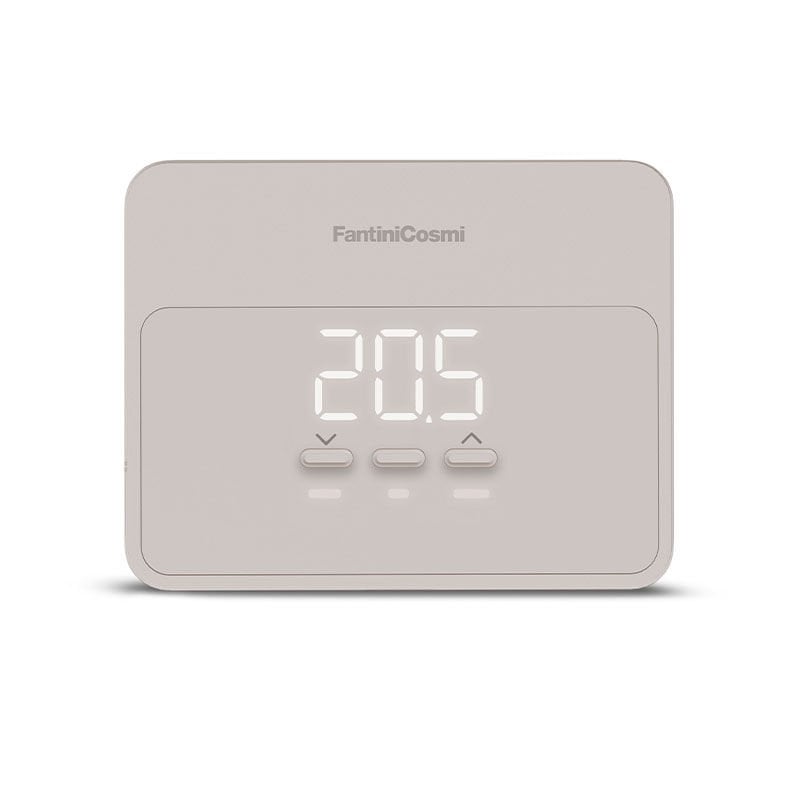

Fantini Cosmi WiFi Akıllı Programlanabilir Termostat

Suitable for controlling heating and/or cooling systems

• Remote control via smartphone app

• SMART features for an innovative approach to home comfort

• Also ideal for managing hydraulic systems by adjusting according to the detected temperature

General Thermostat Features

• Temperature setting range: 2 ÷ 40 °C, with 0.1°C increments

• Room temperature measurement/display range: –50 ÷ +50 °C

• Adjustable temperature differential: STD, 0.3 ÷ 5 K

• Reference thermal gradient: 4 K/h

• Maximum ambient temperature: 45°C

• Ambient relative humidity display range: 0 ÷ 99%, with 1% increments

• WiFi connection: 2.4 GHz (802.11 b/g/n)

• Maximum transmitted radio frequency power: <10mW

• Storage temperature range: -10°C ÷ +60°C

• Protection rating: IP32

• Pollution degree: 2

Electrical Specifications

• Power Supply: 2 x AA 1.5V alkaline batteries or 230 V – 50 Hz (via C800AL power adapter)

• Maximum Power Consumption: 5 W

• Contact Rating: 5(3)A 250 VAC

• Operation Type: 1 BU (Micro Disconnection)

• Output Type: 1 relay dedicated to heating/cooling control (3 screw terminals: normally open + normally closed)

• Software Class: A

• Electrical Insulation: Double insulation

• Impulse Voltage: 4000V

Models and Codes
