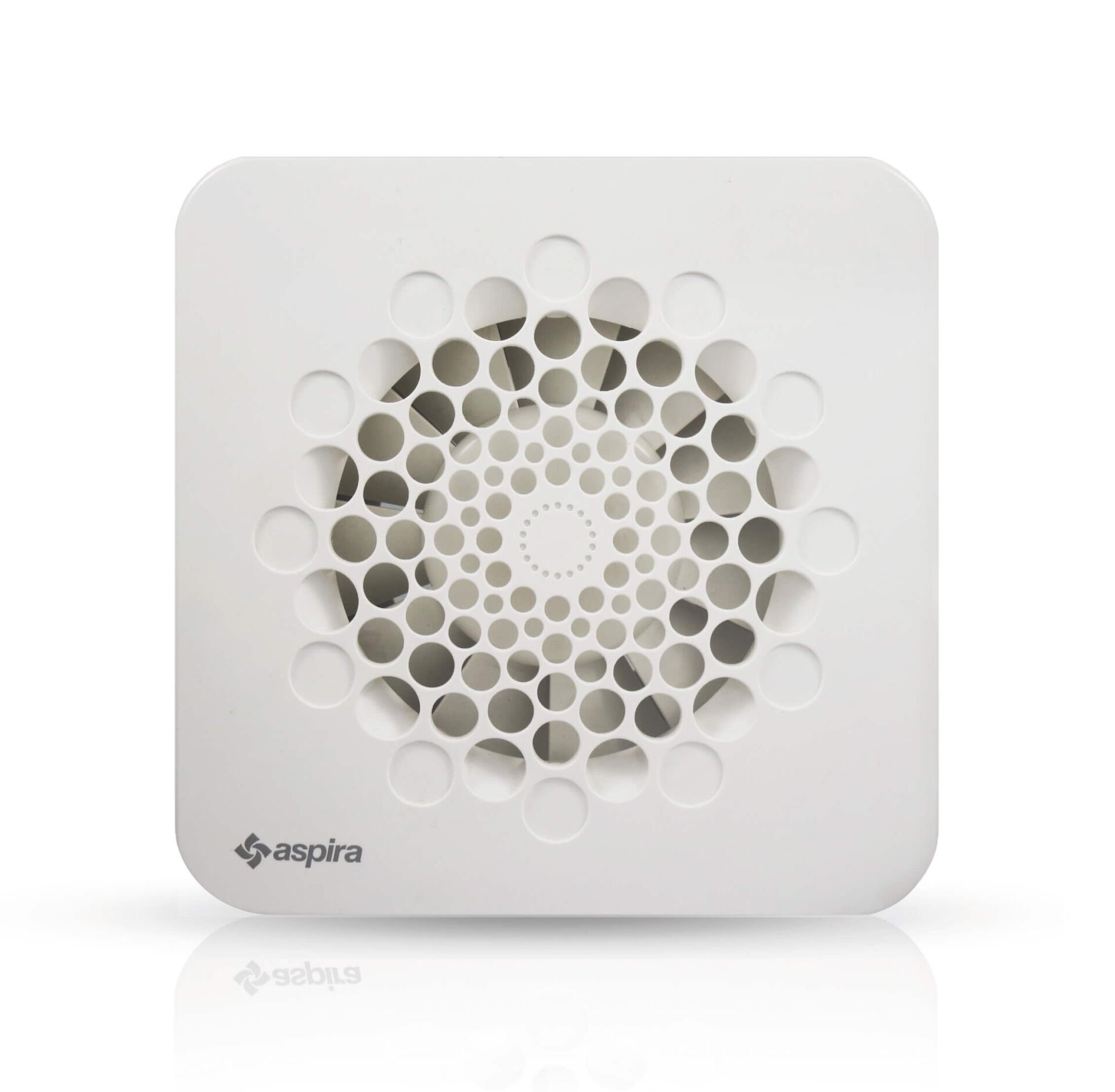

Fantini Cosmi Wall-Mounted Fan / Fan
Fantini Cosmi Wall-Mounted Fan / Fan
One product fits 4 duct diameters: 80 – 90 – 100 – 120 mm
The modern and unique design of the Aspirante adapts to any environment.
Fan / Exhaust Fan Applications
Suitable for intermittent or continuous ventilation of bathrooms, kitchens, or utility rooms in both residential and commercial buildings.
The Aspirante is designed to extract air directly to the outside or into ducts.
With a special kit (Aspirkit Vetro), it can also be installed on windows, making the Aspirante suitable for a wider range of applications.
Reduced bend in the duct close to the fan outlet allows for wall mounting in almost any situation.
General Features
-
Thanks to the KIT included in the box, this model fits 4 duct sizes: Ø80, 90, 100, and 120 mm.
-
Made of impact-resistant and UV-resistant ABS plastic.
-
Thermal cut-off induction motor – insulation class F.
-
Maximum ambient temperature: 45 °C.
-
Timer version: adjustable overrun timer from 45 seconds to 20 minutes.
-
HT version: humidity sensor adjustable between 40% and 80%.
-
Suitable for extracting air directly outside or into ducts.
-
Suitable for wall, ceiling, and window mounting.
Electrical Specifications
-
Power supply: 230 V ~ 50 Hz
Technical Data
| Code | Model | Diameter | Airflow (m³/h) | Pressure (mmH₂O) | Width (B mm) | Noise Level dB(A) at 3m |
|---|---|---|---|---|---|---|
| AP3100 | ASPIRANT | 80 mm / 3” | 55 | 8.8 | 23 | 41.5 |
| 100 mm / 4” | 100 | 8.8 | 23 | 43 | ||
| 120 mm / 5” | 130 | 9 | 24 | 43 | ||
| AP3102 | ASPIRANTE T | 80 mm / 3” | 55 | 8.8 | 23 | 41.5 |
| 100 mm / 4” | 100 | 8.8 | 23 | 43 | ||
| 120 mm / 5” | 130 | 9 | 24 | 43 | ||
| AP3104 | ASPIRANTE HT | 80 mm / 3” | 55 | 8.8 | 23 | 41.5 |
| 100 mm / 4” | 100 | 8.8 | 23 | 43 | ||
| 120 mm / 5” | 130 | 9 | 24 | 43 | ||
| AP0902 | BOCCAGLIO | 90 mm / 3.5” | 90 | 8.5 | 23 | 41.5 |
Optional Kits and Accessories
| Code | Description |
|---|---|
| AP0900 | ASPIRKIT VETRO N (Window mounting kit) |
| AP0904 | ASPIRTIMER N (Timer) |
| AP0906 | ASPIRHYGRO TIMER (Hygrostat timer) |
| AP2568 | ASPIRCONTROL RDV 1.5-MF (Speed controller, only for AP3100) |
