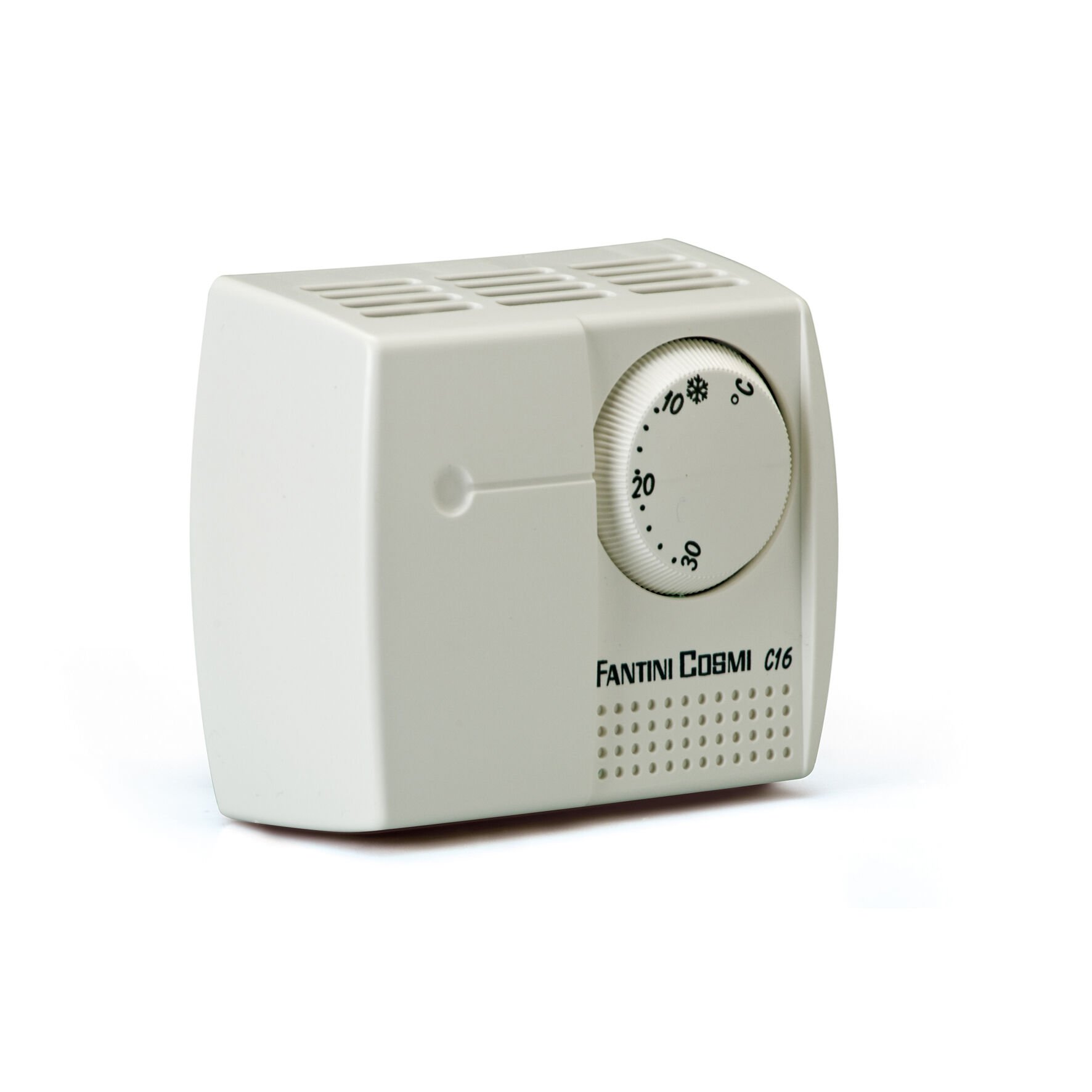

Fantini Cosmi C16I Thermostat 10–30°C On-Off Accuracy 1°C IP20
General Description of the Thermostat:
The Fantini Cosmi C16I is a precision electromechanical room thermostat with liquid-vapor expansion technology. It provides temperature control for heating and cooling systems.
It features “On-Off” switching contacts and is suitable for both domestic and industrial applications.
With an IP20 protection rating, it is designed for indoor wall-mounted installation.
Technical Specifications:
| Feature | Value |
|---|---|
| Setting Range (Temperature Scale) | 10 … 30 °C |
| Accuracy / Differential | ≈ 0.8K (about 1 °C) |
| Housing / Ambient Temperature | -10 … +50 °C |
| Electrical Characteristics | AgNi contact micro-switch, 10(2.5)A @ 250 Vac |
| Protection Rating | IP20 |
| Dimensions & Weight | Height ~ 76 mm, Width ~ 92 mm, Depth ~ 37 mm; Weight ~ 0.14 kg |
| Construction & Material | Thermoplastic cover/knob, vapor-filled stainless steel capsule; 2-wire connection |
| Compliance Standards | Conforms to EN 60730-2-9 standards |
Operating Principle:
The thermostat operates with an “On-Off” contact switching system: when the temperature rises, one contact opens (terminals 1-2) and another closes (terminals 1-4).
Plastic “limit clips” prevent accidental adjustments and allow users to restrict the temperature setting range.
Applications:
-
Domestic heating systems (boiler control, radiator circuits)
-
Air conditioning and cooling systems
-
Offices, homes, and other indoor spaces to maintain thermal comfort
-
Energy-saving temperature control
Advantages:
-
Simple and reliable On-Off control reduces system complexity
-
Sensitive capsule ensures stable temperature regulation
-
Safe for indoor use with IP20 protection rating
-
Cost-effective and easy to install
Installation Information:
-
Mounting type: Wall-mounted
-
Mounting box compatibility: Standard 60 mm round wall box (screw mounting); also suitable for models with 75 mm round box spacing fixed with clips.
