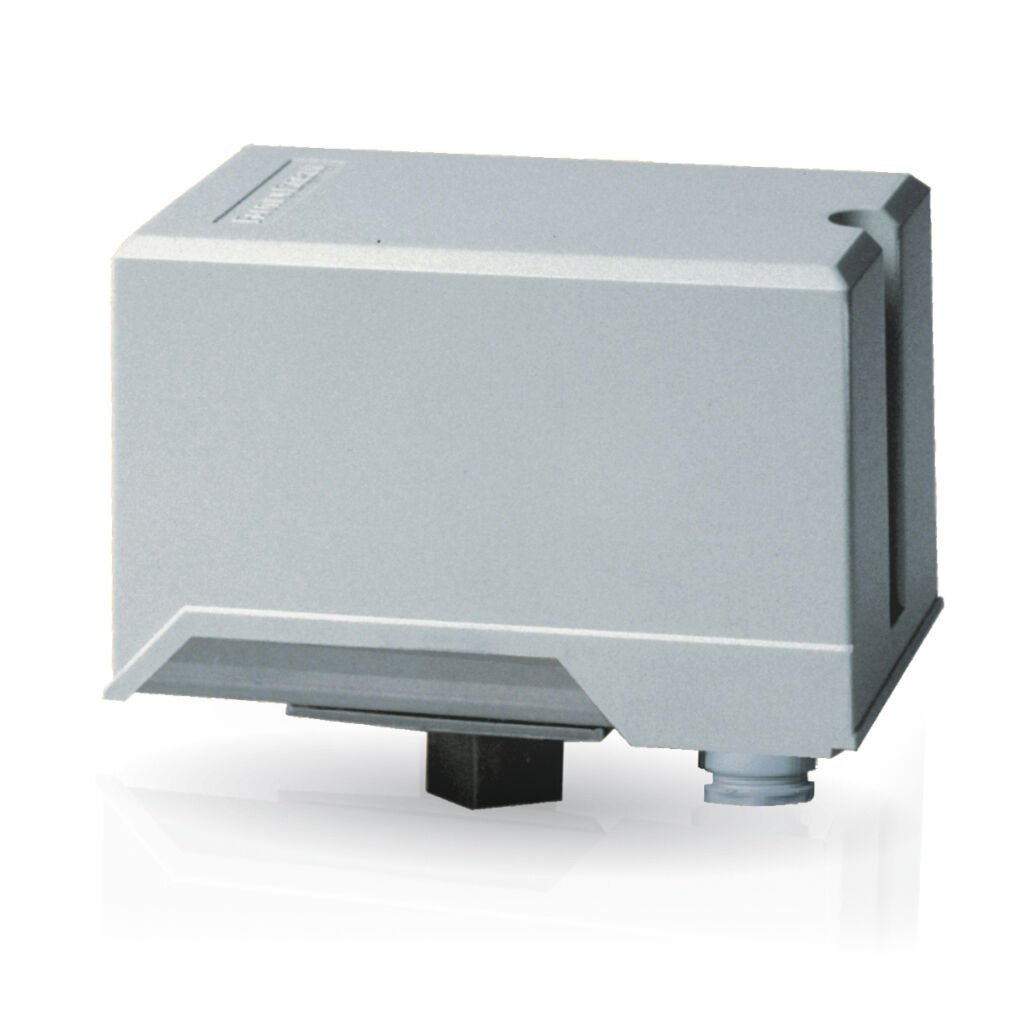

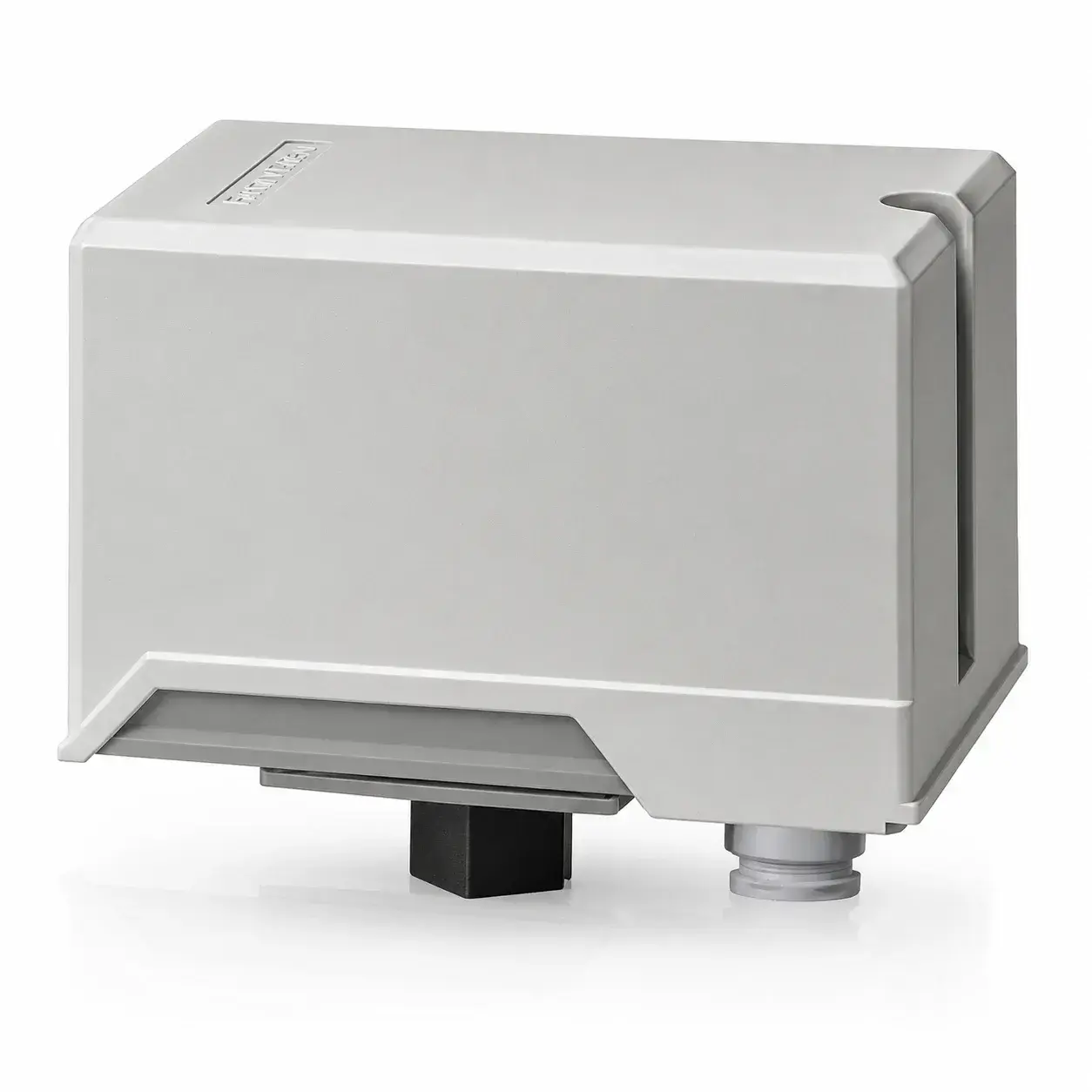

Fantini Cosmi B70A Druck Şalter 0,5-70Bar

What is a Druck Switch?
A Druck switch is a pressure measuring device. Pressure measuring devices are used to measure the pressure of air, gas, or liquid inside a vessel. A Druck switch is activated when a certain pressure level is reached and can be used as a signal. For example, in an air compressor, it can be used to monitor the air pressure while the compressor is running. When the pressure reaches a specific value, the compressor stops operating. This helps save energy and reduces the risk of overpressure.

General Features:

• Precision element with friction diaphragm

• Adjustable differential

• Female connection G 1/4

• Covered with impact-resistant thermoplastic material

• Metallic parts made of steel

• Grounding clamp

• Two cable gland outlet connections

• Maximum temperature of the controlled fluid: 90 °C

• Permitted temperature for the pressure switch body: -15 ÷ 60 °C

• Storage and transport temperature: -35 ÷ 60 °C

• Unit weight: 0.39 kg

Electrical Features:

• Rated insulation voltage: Ui 415 V~

• Continuous operating nominal current: Ith 25 A
