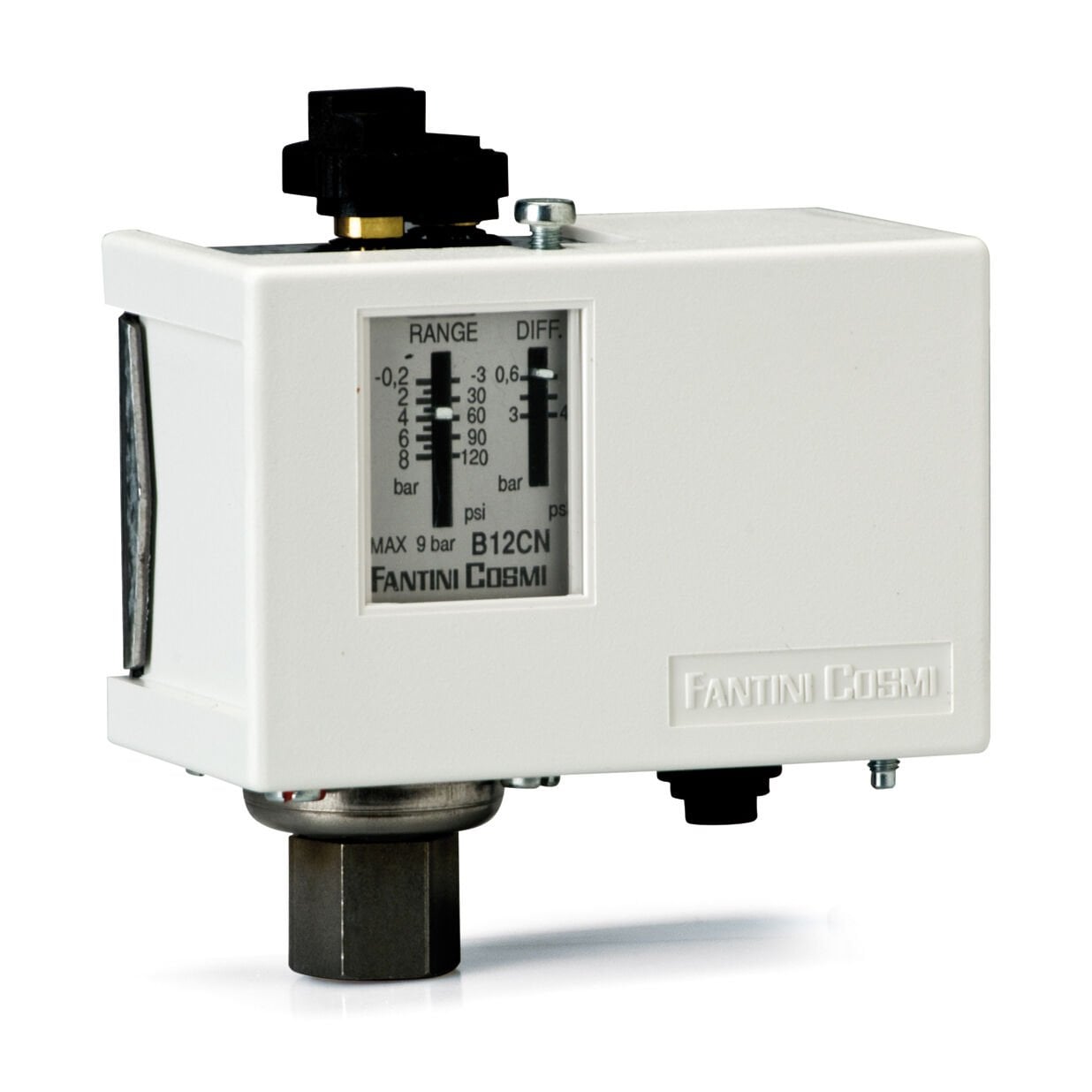

Fantini Cosmi B12CN Prosestat 0,20-8Bar

What is a Prosestat?
Prosestats are pressure switches used for fluids and inert gases. They are suitable for controlling compressors, autoclaves, lubrication circuits, steam boilers, irrigation systems, and similar applications.

General Features:

• Precision element with stainless steel diaphragm, laser welded

• Metallic frame

• Covered with impact-resistant thermoplastic material

• PVC cable gland output connections

• Female connection G 1/4 (17 mm wrench)

• Maximum controlled fluid temperature: 120 °C

• Acceptable temperature for pressure switch body: -35 to 60 °C

• Storage and transport temperature: -35 to 60 °C

• Unit weight: 0.44 kg

Electrical Specifications:

• Nominal insulation voltage Ui: 415 V ~

• Continuous operating current Ith: 16 A

Accessories:

• V0 self-extinguishing, impact-resistant thermoplastic cable gland G1/2, code: 303298LA

• IP44 protection case, code: 2593367

Prosestat
