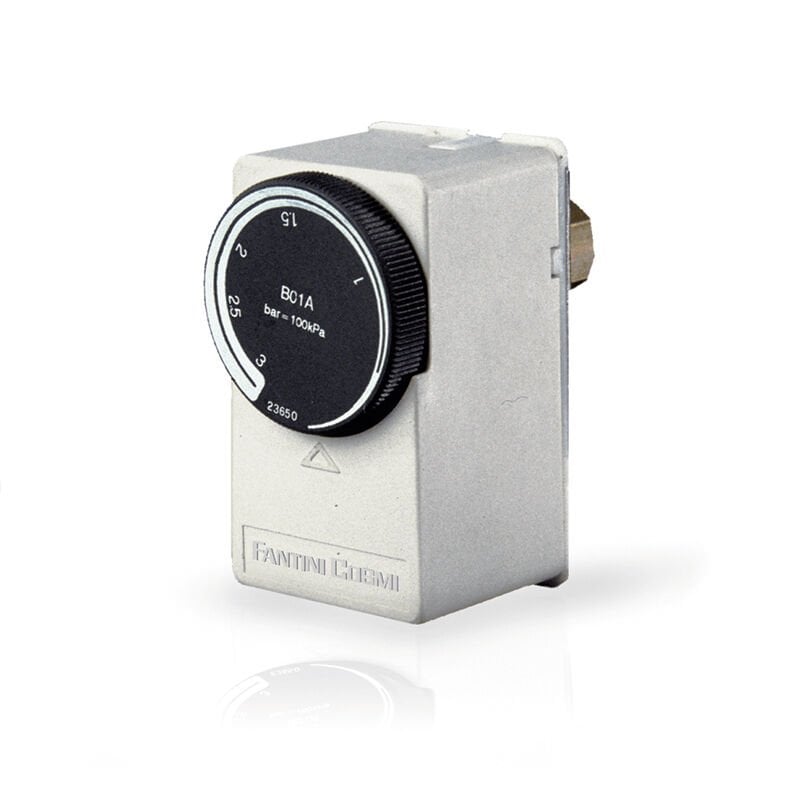

Fantini Cosmi B01A Prosestat 0,7-3Bar

What is a Prosestat?
Prosestats are pressure switches used for fluids and inert gases. They are suitable for controlling compressors, autoclaves, lubrication circuits, steam boilers, irrigation systems, and similar applications.

General Features:

• Elements in contact with the fluid are made of laser-welded stainless steel

• Base, cover, and knob made of V0 self-extinguishing, impact-resistant thermoplastic material

• PVC cable gland outlet connections

• Maximum temperature of the controlled fluid: 120 °C

• Permitted ambient temperature for the pressure switch body: -35 ÷ 80 °C

• Storage and transport temperature: -35 ÷ 80 °C

• Unit weight: 0.15 kg

Electrical Features:

• Rated insulation voltage: Ui 380 V~

• Continuous operating nominal current: Ith 15 A

Accessories:

• G1/2 cable gland, V0 self-extinguishing, code: 303298L
