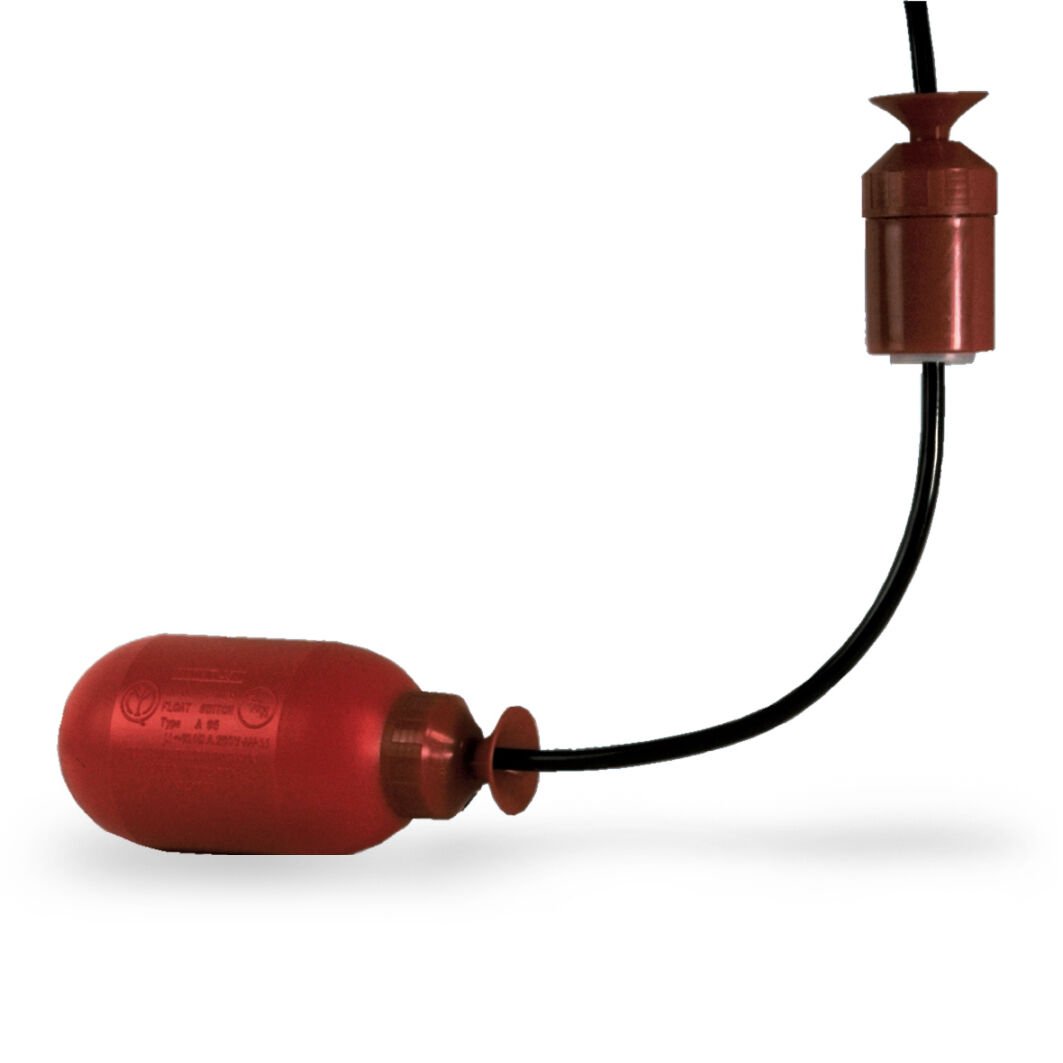

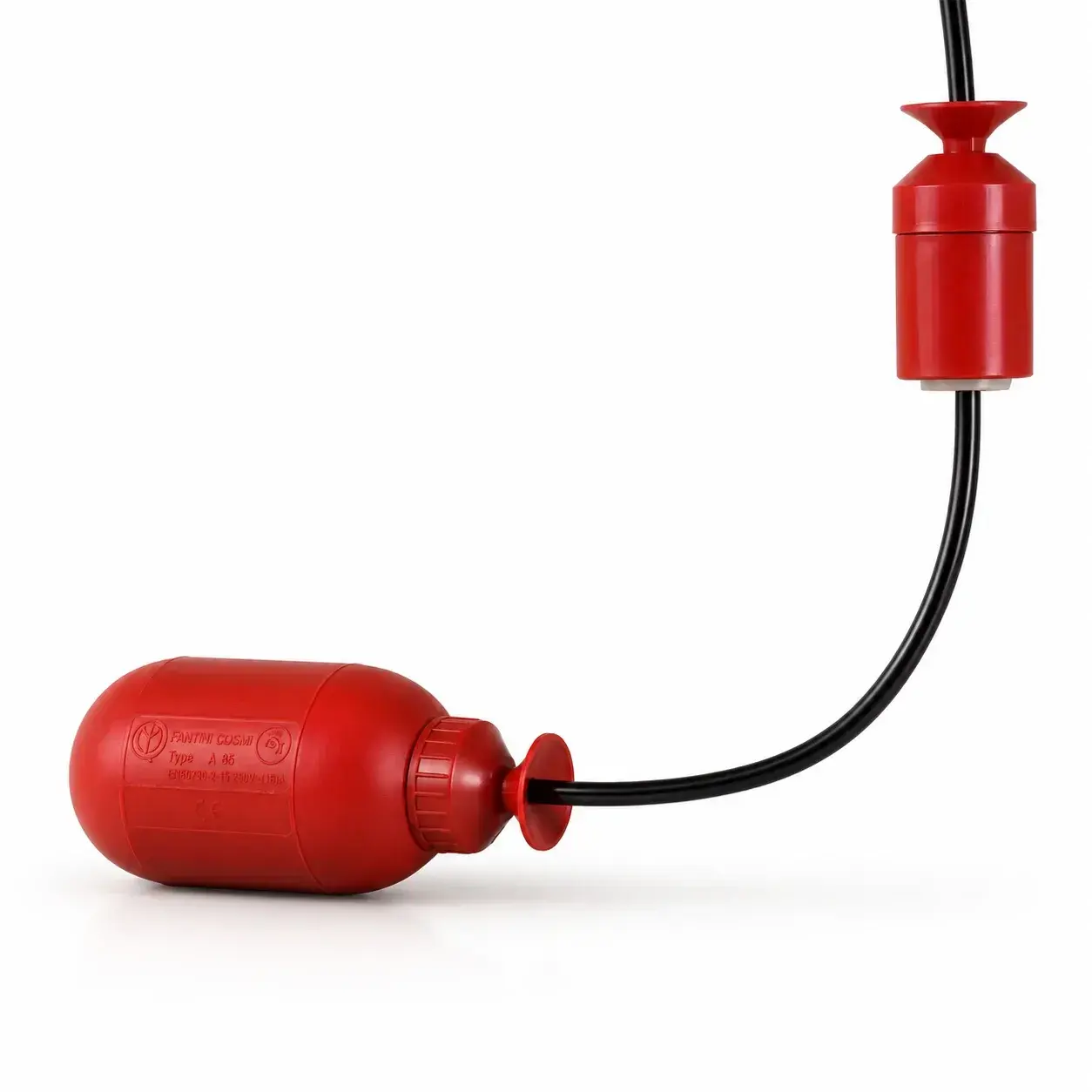

Fantini Cosmi A95A (3-meter Cable) Level Switch

Level Switch – General Features

• Blow-molded Moplen outer body, chemically resistant and impact-resistant.

• Intermediate body filled with polyurethane foam.

• Inside, a two-position, two-channel electrical device is located.

• The operating area of the electrical device is made of lead to prevent clogging and oxidation.

• Adjustable counterweight position to select the level difference.

• Blow-molded Moplen cable gland on the electrical cable.

• Double insulation.

• Test class: II.

• Storage and transport temperature: -25 ÷ 60 °C.

• A95A unit weight: 0.7 kg.

• A95B unit weight: 1.3 kg.

Electrical Specifications

• Single-direction, two-position SPDT electrical switch.

• Electrical cable type: AØ5VV-F 3 × 1 RF60 CEI-UNEL 35746.

• Double insulation: 4 kW.
