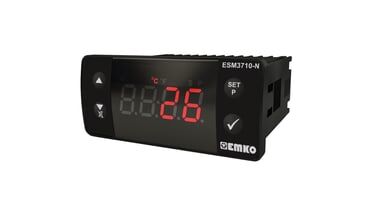

Temperature Controller
Display and Front Panel
Buttons: Set, Reset, direction, and enter keys
LED Indicators: SV (Set Value), Op (Control Output) LEDs
Actual Value Display: 13.2 mm red 6-digit LED
Set Value Display: 8 mm green 6-digit LED
Enclosure
Physical Dimensions: 96 mm × 48 mm × 86.5 mm
Protection Class: NEMA 4X (front IP65, rear IP20)
Weight: Approximately 0.21 kg
Mounting Type: Fixed panel mounting
Electrical Specifications
Supply Voltage and Power:
-
230 V~ (−15%, +10%) 50/60 Hz, 2.3 VA
-
115 V~ (−15%, +10%) 50/60 Hz, 2.3 VA
-
24 V~ (−15%, +10%) 50/60 Hz, 2.3 VA
Digital Inputs:
-
Nominal voltage: 16 VDC @ 5 mA
-
Maximum continuous voltage: 30 VDC
-
Logic 1 minimum level: 3 VDC
-
Logic 0 maximum level: 2 VDC
Sensor Supply Voltage: 12 V ±40%, max 50 mA
Maximum Input Frequency:
-
P.Input = 0, 1, 2, 3, 4 → 20,000 Hz
-
P.Input = 5, 6 → 12,000 Hz
-
P.Input = 7 → 10,000 Hz
Outputs
Relay Output: 5A @ 250 V~ (resistive load)
Quality Standards
Compliance Certificates: GOST-R, CE
✅ Temperature Controller
Provides reliable temperature control for industrial automation systems, with a durable design, multiple sensor compatibility, and precise LED display for real-time monitoring and adjustment.
