Elimko Timer – E74-B1-220V

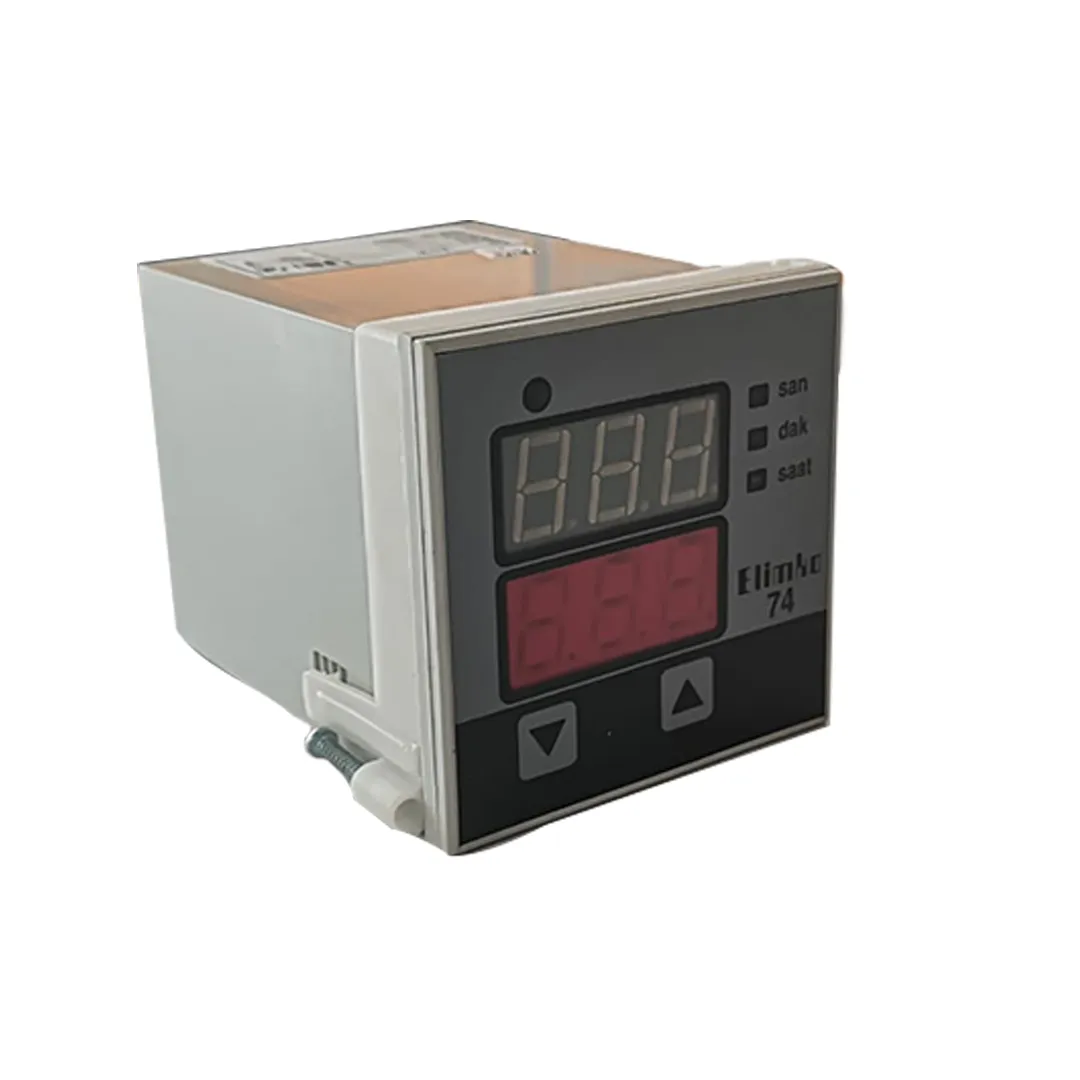

Designed with a microcontroller, this industrial device has a 72×72 mm (E‑74) panel size and is programmable for various time intervals. It features a 2×3 digit LED display, with time set via two buttons, showing both elapsed time and the set value numerically. The relay provides output signaling. It supports scales from 0–99.9 or 1–999 and can measure seconds, minutes, or hours with precision options of 0.1/99.9 or 1/999.

Technical Specifications

• Model: Elimko Timer / Digital Time Relay E74‑B1‑220V

• Panel Dimensions: 72×72 mm, panel-mounted

• Supply Voltage: 220 VAC, 50 Hz

• Time Adjustment Buttons: Two buttons for setting

• Display:

  • 2 × 3 digit LED displays

  • Upper display shows elapsed time, lower display shows the set value

• Time Scales / Units: Seconds (s), minutes (min), hours (h); adjustable precision: 0.1/99.9 or 1/999

• Operating Temperature: 0 … +50 °C

• Power Consumption: ~6 VA

• Relay Output Capacity: 5 A, 240 V

• Service Life: ~10 years

Usage & Functions

• Ideal for systems requiring time control: process automation, ovens, drying systems, or any equipment needing timed ON/OFF control.

• Users can set the time using the buttons; elapsed time is visible on the LED display.

• When the set time is reached, the relay output activates, which can be used for alarms or controlling other devices.

• The rear panel includes a reset input; applying 220 V to designated terminals resets the timer.

Advantages

• Easy to use: simple LED display and button interface.

• Flexible: programmable in seconds, minutes, or hours to suit different applications.

• Compact: 72×72 mm size fits panel installation without occupying much space.

• Strong relay output (5 A / 240 V) for direct control of many loads.

• Durable: approximately 10-year service life.
