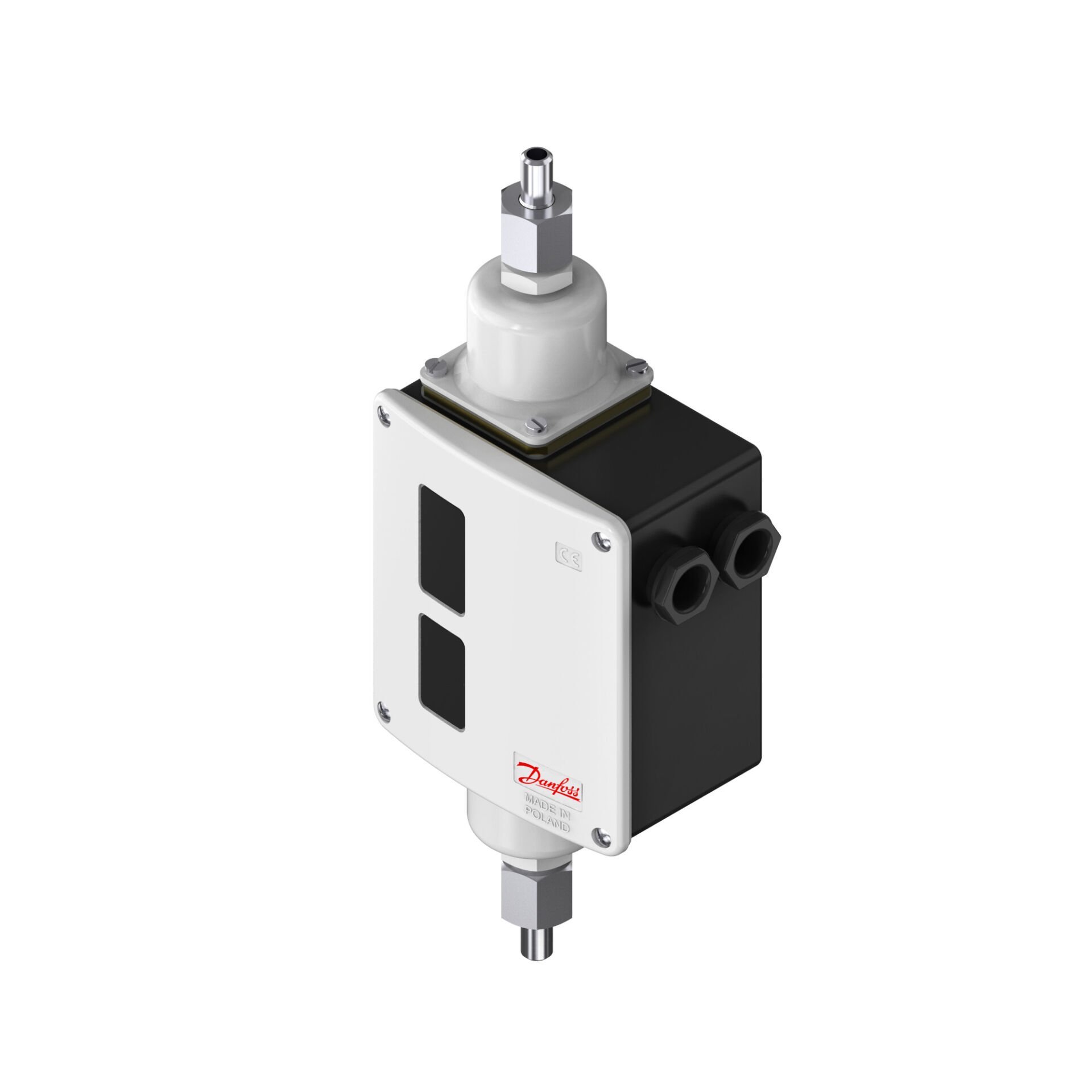

Danfoss RT262A Differential Pressure Switch 1.5–11 bar
Danfoss RT262A Differential Pressure Switch 1.5–11 bar
Weight:
-
Gross Weight: 1.364 kg
-
Net Weight: 1.351 kg
Volume: 4.458 L
EAN: 5702428042802
Packaging: Multi-pack
Serviceable: Contact systems
Pressure Switch Specifications:
-
Max Pressure Range [bar]: 9 bar
-
Min Pressure Range [bar]: -1 bar
-
Pressure Connection Size: 3/8
-
Pressure Connection Notes: Weld nipple d6.5/D10 mm
-
Pressure Connection Standard: ISO 228-1
-
Pressure Connection Type: G
-
Pressure Male/Female: Male
-
China RoHS Compliance: Yes
Differential Pressure Adjustment Range:
-
Max [bar]: 1.5 bar
-
Min [bar]: 0.1 bar
-
Max [MPa]: 0.15 MPa
-
Min [MPa]: 0.01 MPa
-
Max [psi]: 21.8 psi
-
Min [psi]: 1.5 psi
Electrical Connection:
-
Type: Screw cable entry
-
Size: 2x Pg 13.5
-
Male/Female: Female
-
Standard: DIN 40430
-
Electrical Standard: EN 60947-4/-5
-
Insulation: 400 V
-
Pollution Degree: 3
-
Nominal Impulse Voltage: 4 kV
-
Short Circuit Protection, Fuse: 10 A
-
Cable Size: 0.2–2.5 mm²
Contact Ratings:
-
AC15: 3 A, 400 V
-
AC1: 10 A, 400 V
-
AC3: 4 A, 400 V
-
DC13: 12 W, 220 V
-
LR: 28 A, 400 V
Differential Pressure Switch:
-
Contact Differential: 0.1 bar
-
Contact Function: SPDT
-
Protection Class: IP66
-
Max Test Pressure [bar]: 13 bar
-
Max Test Pressure [psig]: 188 psig
-
Max Operating Pressure [bar]: 11 bar
-
Max Operating Pressure [psig]: 160 psig
-
Approvals: CCC, CE, CMIM, EAC, KR, LLC CDC EURO-TYSK, LVD, PZH, RINA, RMRS, RoHS, China RoHS, TYSK, UKCA
-
Ambient Temperature Range: -50 °C to 70 °C (-58 °F to 158 °F)
-
RoHS Documentation: Saudi Arabia RoHS
-
Product Type: RT262A
-
Reset Function: Automatic
-
Relay Release Time: 0 s
Compatible Refrigerants: R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C, R717
Operating Range (DB side):
-
Max [bar]: 9 bar
-
Min [bar]: -1 bar
-
Max [psig]: 131 psig
-
Min [psig]: -15 psig
Accessories: General accessories, switch accessories
Product Description: Differential pressure switch
Product Group: Switches and thermostats
