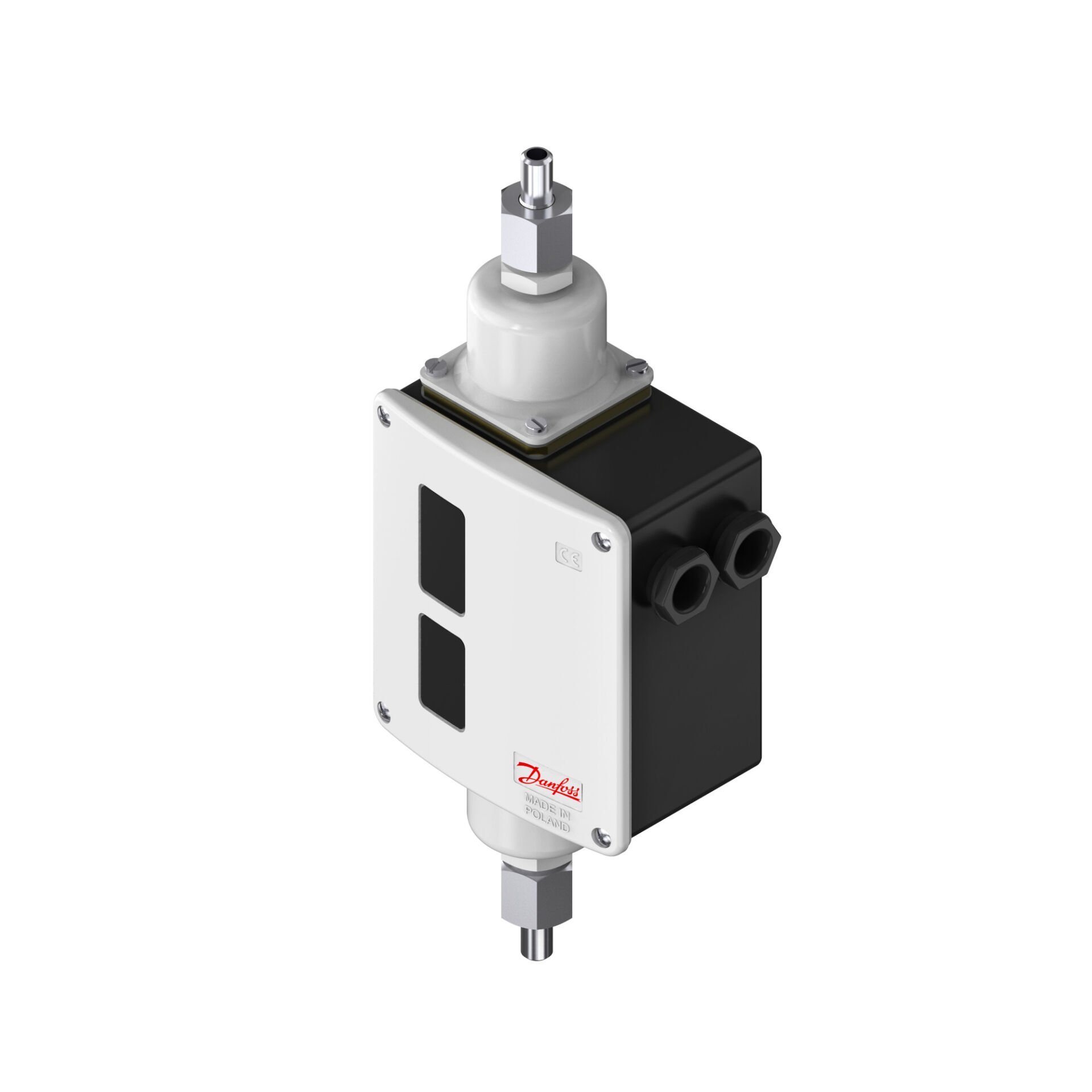

Danfoss RT262A Differential Pressure Switch 0.1–1.5 bar

Danfoss RT262A Differential Pressure Switch 0.1–1.5 bar

Gross Weight: 1.352 Kg
Net Weight: 1.155 Kg

Pressure Switch

Volume: 4.557 Liters
EAN: 5702428042796

Pressure Switch Specifications:

• Maximum Pressure Range [bar] Pe: 10 bar

• Minimum Pressure Range [bar] Pe: -1 bar

• Pressure Connection Size: 3/8"

• Pressure Connection Notes: Weld nipple d6.5/D10 mm

• Pressure Connection Standard: ISO 228-1

• Pressure Connection Type: G

• Pressure Male/Female: Male

• China RoHS Compliance: Yes

• Differential Pressure Setting Range [bar] Max: 0.3 bar

• Differential Pressure Setting Range [bar] Min: 0 bar

• Differential Pressure Setting Range [MPa] Max: 0.03 MPa

• Differential Pressure Setting Range [MPa] Min: 0 MPa

• Differential Pressure Setting Range [psi] Max: 4 psi

• Differential Pressure Setting Range [psi] Min: 0 psi

EEE Category: 5 Small Equipment (any external dimension <50 cm)
Electrical Connection: Screw cable entry
Electrical Connection Size: 2xPg 13.5
Electrical Connection Male/Female: Female
Electrical Connection Standard: DIN 40430
Electrical Characteristic Standard: EN 60947-4/-5

• Insulation: 400 V

• Pollution Degree: 3

• Nominal Impulse Voltage: 4 kV

• Short-Circuit Protection, Fuse: 10 A

• EN 60947 Cable Specifications:

  • Cord with ferrule: 0.2–1.5 mm²

  • Cord without ferrule: 0.2–2.5 mm²

  • Solid/Stranded: 0.2–2.5 mm²
    EU RoHS Compliance: Yes
    EU RoHS Exemption Clause: No
    In Scope of WEEE: Yes
    In Scope of WEEE and Contain Batteries: No

Pressure Switch Electrical Ratings:

• Contact Rating: 25 VA, 24 V AC/DC

• Contact Differential [bar]: 0.03 bar

• Contact Function: SPDT (no snap action)

• Protection Class: IP66

• Maximum Test Pressure [bar] Pe: 13 bar

• Maximum Test Pressure [psig]: 188 psig

• Maximum Operating Pressure [bar]: 11 bar

• Maximum Operating Pressure [psig]: 160 psig

Approvals: CCC, CE, CMIM, EAC, KR, LLC CDC EURO-TYSK, LVD, PZH, RINA, RMRS, RoHS, RoHS China, TYSK, UKCA

Ambient Temperature Range:

• Max: 70 °C / 158 °F

• Min: -50 °C / -58 °F

Product Name/Description: Differential Pressure Switch
REACH Candidate List Substances: Lead (CAS no. 7439-92-1)
Reset Function: Automatic
Relay Release Time [s]: 0 s

Compatible Refrigerants:
R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C, R717

Type: RT262A
UK RoHS Compliance: Yes

UL Approved Refrigerants: R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C

Operating Range – DB Side:

• Max Pressure [bar] Pe: 10 bar

• Min Pressure [bar] Pe: -1 bar

• Max Pressure [psig] Pe: 145 psig

• Min Pressure [psig] Pe: -15 psig

Product Accessories: General Accessories, Switch Accessories
Product Description: Differential Pressure Switch
Product Group: Switches and Thermostats
