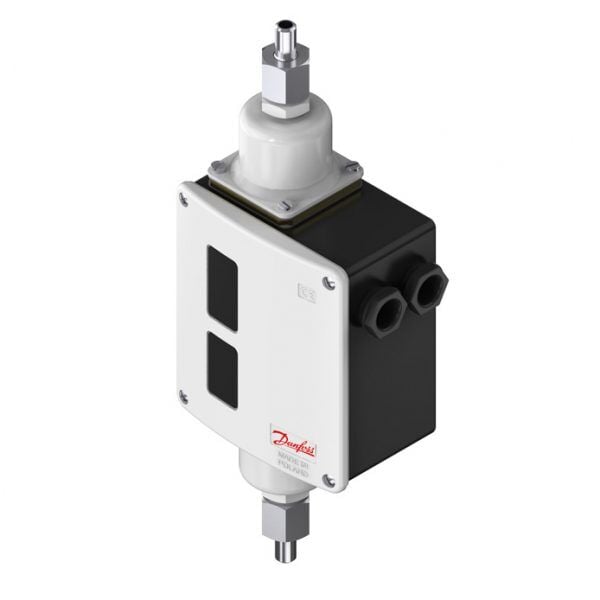

Danfoss RT260A Differential Pressure Switch 0.5–6 bar
Danfoss RT260A Differential Pressure Switch 0.5–6 bar
Gross Weight: 1.168 kg
Net Weight: 0.882 kg
Pressure Switch
Volume: 4.581 Liters
EAN: 5702428042871
Pressure Range [bar] Pe [Max]: 36 bar
Pressure Range [bar] Pe [Min]: -1 bar
Pressure Connection Size: 12 x 1.5
Pressure Connection Notes: 6 mm cutting ring tube
Pressure Connection Standard: ISO 8434-1
Pressure Connection Type: Male
China RoHS Compliance: Yes
Differential Pressure Setting Range [bar] [Max]: 6 bar
Differential Pressure Setting Range [bar] [Min]: 0.5 bar
Differential Pressure Setting Range [MPa] [Max]: 0.6 MPa
Differential Pressure Setting Range [MPa] [Min]: 0.05 MPa
Differential Pressure Setting Range [psi] [Max]: 87 psi
Differential Pressure Setting Range [psi] [Min]: 7 psi
EEE Category: 5 small equipment (any external dimension <50 cm)
Electrical Connection: Screw cable entry
Electrical Connection Size: 2x Pg 13.5
Electrical Connection Gender: Female
Electrical Connection Standard: DIN 40430
Electrical Feature Standard: EN 60947-4/-5
EN 60947 Electrical Features:
-
Insulation: 400 V
-
Pollution Degree: 3
-
Rated Impulse Voltage: 4 kV
-
Short Circuit Protection, Fuse: 10 A
EN 60947 Cable Features: -
Cord with ferrule: 0.2–1.5 mm²
-
Cord without ferrule: 0.2–2.5 mm²
-
Solid/Stranded: 0.2–2.5 mm²
EU RoHS Compliance: Yes
EU RoHS Exemption Clause: No
In Scope of WEEE: Yes
In Scope of WEEE and Contain Batteries: No
Pressure Switch Specifications
Contact Ratings:
-
AC15 = 3 A, 400 V
-
AC1 = 10 A, 400 V
-
AC3 = 4 A, 400 V
-
DC13 = 12 W, 220 V
-
LR = 28 A, 400 V
Contact Differential [bar]: 0.5 bar
Contact Function: SPDT
Protection Class IP: IP66
Max Test Pressure [bar] Pe: 47 bar
Max Test Pressure [psig]: 681 psig
Max Operating Pressure [bar]: 42 bar
Max Operating Pressure [psig]: 609 psig
Certifications: CCC, CE, CMIM, EAC, KR, LLC CDC EURO-TYSK, LVD, PZH, RINA, RMRS, RoHS, RoHS China, TYSK, UKCA
Ambient Temperature Range [°C] Max: 70 °C
Ambient Temperature Range [°C] Min: -40 °C
Ambient Temperature Range [°F] Max: 158 °F
Ambient Temperature Range [°F] Min: -40 °F
Product Name Description: Differential Pressure Switch
REACH Candidate List Substance: Lead (CAS no. 7439-92-1)
Reset Function: Automatic
Relay Separation Time [s]: 0 s
SCIP File No.: 54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Compatible Refrigerants: R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C, R717
Type: RT260A
UK RoHS Compliance: Yes
UL Approved Refrigerants: R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C
Operating Range DB Side [bar] Pe [Max]: 36 bar
Operating Range DB Side [bar] Pe [Min]: -1 bar
Operating Range DB Side [psig] Pe [Max]: 522 psig
Operating Range DB Side [psig] Pe [Min]: -15 psig
Product Accessories: General accessories, Switch accessories
Product Description: Differential Pressure Switch
Product Group: Switches and Thermostats
