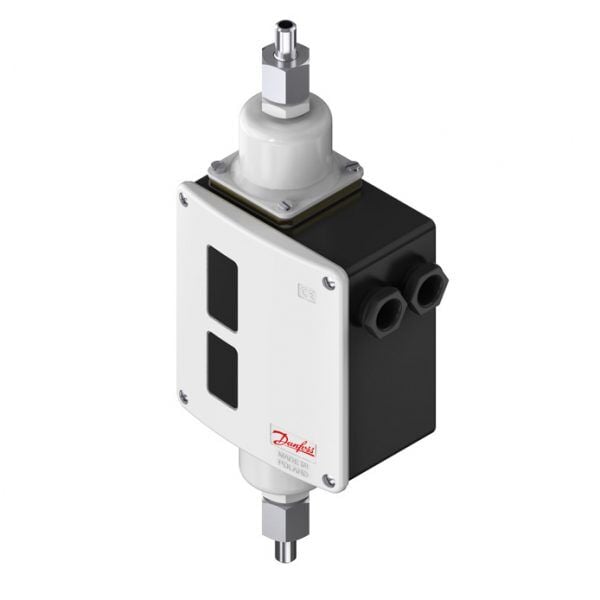

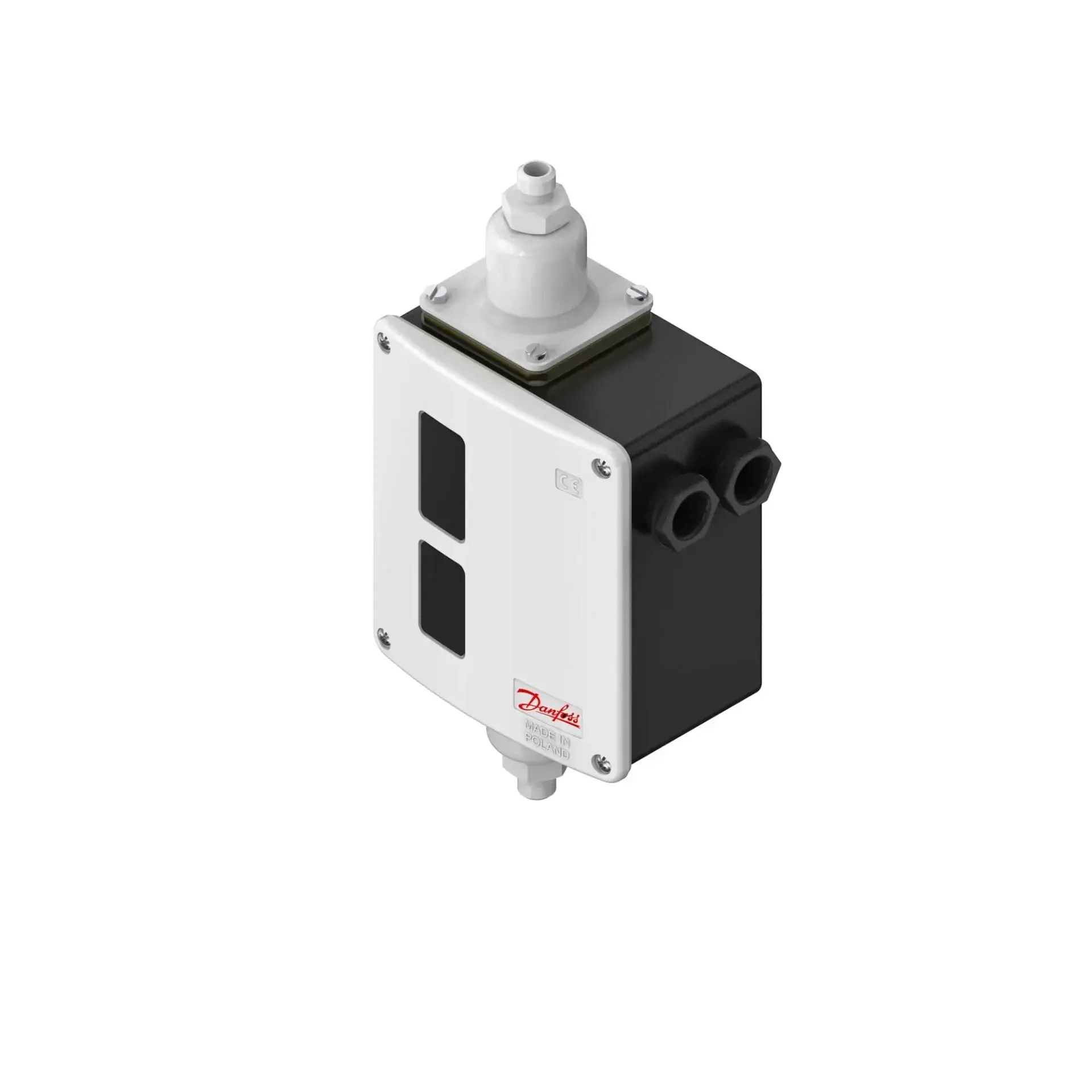

Danfoss RT260A Differential Pressure Switch 0.5–4 bar
Danfoss RT260A Differential Pressure Switch 0.5–4 bar
Gross Weight: 1.182 Kg
Net Weight: 0.882 Kg
Volume: 4.484 Liters
EAN: 5702428042888
Pressure Switch Specifications:
-
Pressure Range [bar] Pe [Max]: 18 bar
-
Pressure Range [bar] Pe [Min]: -1 bar
-
Pressure Connection Size: 12 x 1.5
-
Pressure Connection Notes: Cutting ring 6 mm tube
-
Pressure Connection Standard: ISO 8434-1
-
Pressure Connection Type: M
-
Pressure Male/Female: Male
-
China RoHS Compliance: Yes
Differential Pressure Adjustment Range:
-
[bar] Max: 4 bar
-
[bar] Min: 0.5 bar
-
[MPa] Max: 0.4 MPa
-
[MPa] Min: 0.05 MPa
-
[psi] Max: 58 psi
-
[psi] Min: 7 psi
Electrical Connection:
-
Type: Screw cable entry
-
Size: 2 x Pg 13.5
-
Male/Female: Female
-
Standard: DIN 40430
-
Electrical Standard: EN 60947-4/-5
-
EN 60947 Electrical Characteristics: Insulation 400 V, Pollution degree 3, Nominal impulse voltage 4 kV, Short-circuit protection fuse 10 A
-
EN 60947 Cable Specifications:
-
With ferrule: 0.2–1.5 mm²
-
Without ferrule: 0.2–2.5 mm²
-
Solid/Stranded: 0.2–2.5 mm²
-
EU RoHS Compliance: Yes
In Scope of WEEE: Yes
Contact Rating:
-
AC15=3 A, 400 V
-
AC1=10 A, 400 V
-
AC3=4 A, 400 V
-
DC13=12 W, 220 V
-
LR=28 A, 400 V
Switch Characteristics:
-
Contact Differential: 0.3 bar
-
Contact Function: SPDT
-
Protection Class: IP66
-
Max. Test Pressure [bar] Pe: 25 bar
-
Max. Operating Pressure [bar]: 22 bar
-
Approvals: CCC, CE, CMIM, EAC, KR, LLC CDC EURO-TYSK, LVD, PZH, RINA, RMRS, RoHS, UKCA
Operating Temperature Range:
-
Max: 70 °C / 158 °F
-
Min: -40 °C / -40 °F
Other Features:
-
Automatic Reset Function
-
Relay Separation Time: 0 s
-
SCIP File No.: 54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Compatible Refrigerants: R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C, R717
RT260A Type Differential Pressure Switch
-
Working Range DB Side [bar] Pe [Max]: 18 bar
-
Working Range DB Side [bar] Pe [Min]: -1 bar
-
Working Range DB Side [psig] Pe [Max]: 261 psig
-
Working Range DB Side [psig] Pe [Min]: -15 psig
Accessories: General Accessories, Switch Accessories
Product Description: Differential Pressure Switch
Product Group: Switches and Thermostats
