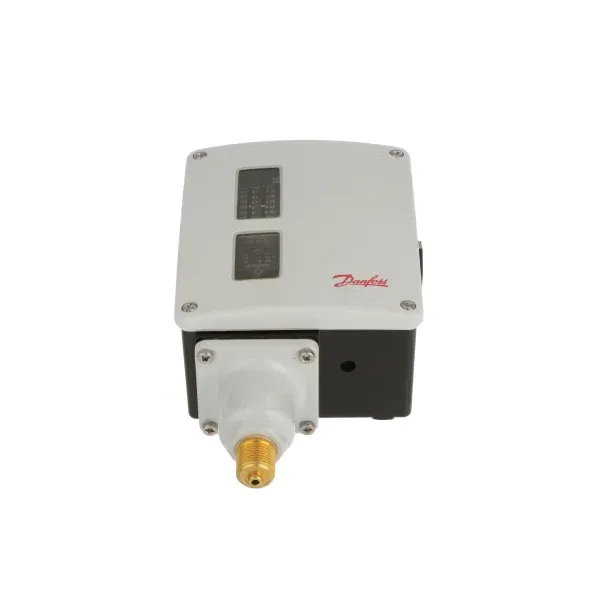

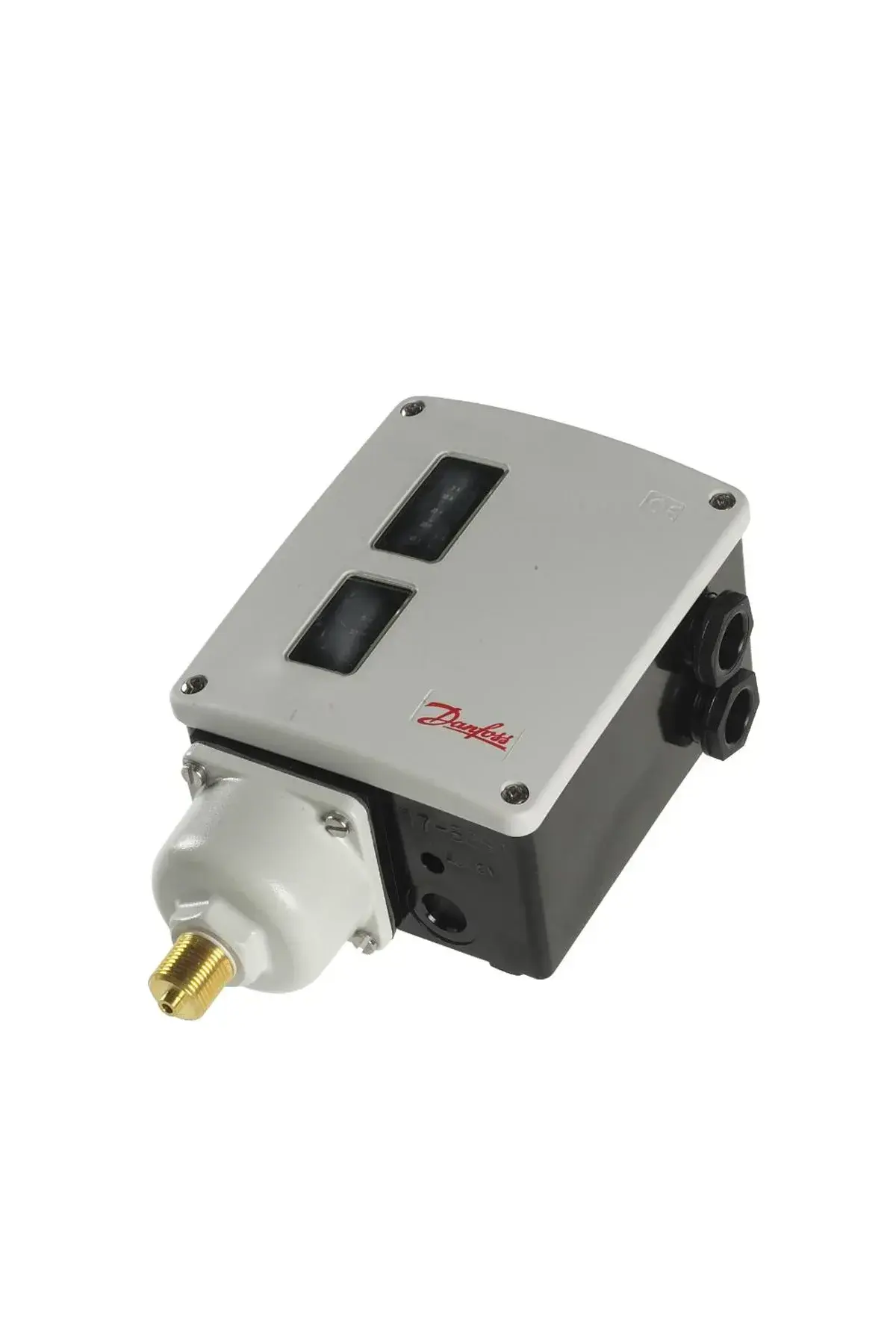

Danfoss RT200 0.2–6 Bar Pressure Switch

Danfoss RT200 0.2–6 Bar Pressure Switch

Gross weight: 0.984 kg
Net weight: 0.879 kg

Pressure Switch

Volume: 2.661 liters
EAN: 5702423120918

Pressure Switch Specifications:

• Pressure sensing element: Bellows

• Pressure connection size: 3/8"

• Pressure connection standard: ISO 228-1

• Pressure connection type: G

• Pressure connection gender: Male

• China RoHS compliance: Yes

• EEE category: 5 small equipment (any external dimension <50 cm)

• Electrical connection: Screw cable entry

• Electrical connection size: 2xPg 13.5

• Electrical connection gender: Female

• Electrical connection standard: DIN 40430

• Electrical standard: EN 60947-4/-5

• EN 60947 electrical features: Insulation 400 V, Pollution degree 3, Rated impulse voltage 4 kV, Short circuit protection fuse 10 A

• Cable specifications: Cord with ring: 0.2–1.5 mm², Cord without ring: 0.2–2.5 mm², Solid/stranded: 0.2–2.5 mm²

• EU RoHS compliance: Yes

• Differential [bar]: Max 1.2 bar, Min 0.25 bar

• Differential [psi]: Max 17.4 psi, Min 3.6 psi

• WEEE compliance: Yes (does not contain batteries)

• Contact ratings: AC15 = 3 A, 400 V; AC1 = 10 A, 400 V; AC3 = 4 A, 400 V; DC13 = 12 W, 220 V; LR = 28 A, 400 V

Pressure Switch Functionality:

• Contact function: SPDT

• Protection class: IP66

• Max test pressure [bar]: 25 bar

• Max test pressure [psig]: 363 psig

• Max operating pressure [bar]: 22 bar

• Max operating pressure [psig]: 320 psig

• Approvals: BV, CCC, CE, DNV, EAC, GL, KR, LLC CDC EURO-TYSK, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TYSK, UKCA

• Ambient temperature range: -50 °C to 70 °C (-58 °F to 158 °F)

• Product description: Pressure switch

• REACH candidate substances: Lead (CAS no. 7439-92-1)

• Regulation range [bar]: Min 0.2 bar, Max 6 bar

• Regulation range [psi]: Min 2.9 psig, Max 87 psig

• Reset function: Automatic

• Refrigerants: R11, R113, R12, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C

• Type: RT200

• UK RoHS compliance: Yes

• UL approved refrigerants: R11, R113, R12, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C

• Accessories: Switch accessories

• Product group: Switches and thermostats

This is the full English translation of the Danfoss RT200 0.2–6 Bar Pressure Switch specifications.
