Pressure Switch
Volume: 2.819 liters
EAN: 5702423120598
Pressure Switch Details
Pressure sensing element: Diaphragm
Pressure connection size: 3/8
Pressure connection standard: ISO 228-1
Pressure connection type: G
Pressure Male/Female: Male
China RoHS compliance: Yes
EEE category: 5 small equipment (any external dimension 50 cm)
Electrical Connection
Connection type: Screw cable entry
Connection size: 2xPg 13.5
Connection Male/Female: Female
Connection standard: DIN 40430
Electrical standard: EN 60947-4/-5
EN 60947 Electrical characteristics:
-
Insulation: 400 V
-
Pollution degree: 3
-
Rated impulse voltage: 4 kV
-
Short-circuit protection, fuse: 10 A
EN 60947 cable characteristics: -
Cord, with ferrule: 0.2–1.5 mm²
-
Cord, without ferrule: 0.2–2.5 mm²
-
Solid/Stranded: 0.2–2.5 mm²
EU RoHS compliance: Yes
EU RoHS exemption clause: No
Differential Pressure
Max differential: 1.3 bar
Min differential: 0.33 bar
Max differential: 18.9 psi
Min differential: 4.8 psi
In scope of WEEE: Yes
In scope of WEEE and contains batteries: No
Contact Ratings
-
AC15 = 3 A, 400 V
-
AC1 = 10 A, 400 V
-
AC3 = 4 A, 400 V
-
DC13 = 12 W, 220 V
-
LR = 28 A, 400 V
Pressure Switch Features
Contact function: SPDT
Protection class: IP66
Max test pressure [bar] Pe: 25 bar
Max test pressure [psig]: 363 psig
Max operating pressure [bar]: 22 bar
Max operating pressure [psig]: 320 psig
Approvals
BV, CCC, CE, CMIM, DNV, EAC, GL, KR, LLC CDC EURO-TYSK, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TYSK, UKCA
Ambient Temperature Range
Max: 70 °C / 158 °F
Min: -50 °C / -58 °F
Other RoHS documentation: Saudi Arabia RoHS
Product description: Pressure switch
REACH Candidate List substances: Lead (CAS no. 7439-92-1)
Regulation Range
Max pressure: 10 bar / 145 psig
Min pressure: 1 bar / 14.5 psig
Reset function: Automatic
SCIP file no.: 54f3e4b2-77e8-4825-a1c1-c3d5ba584171

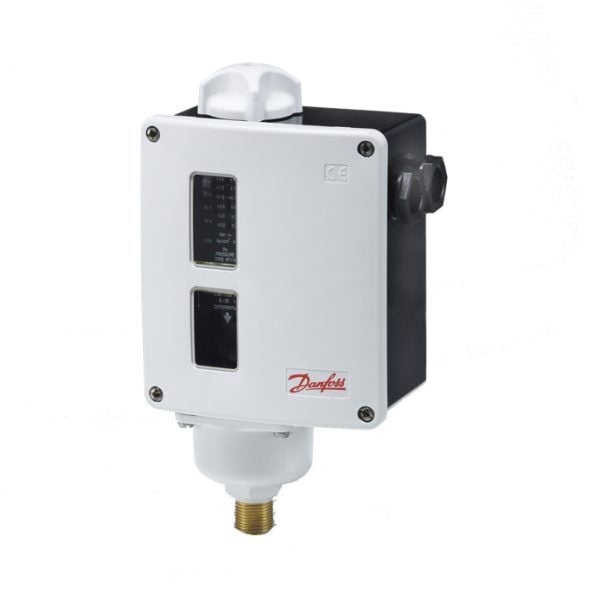

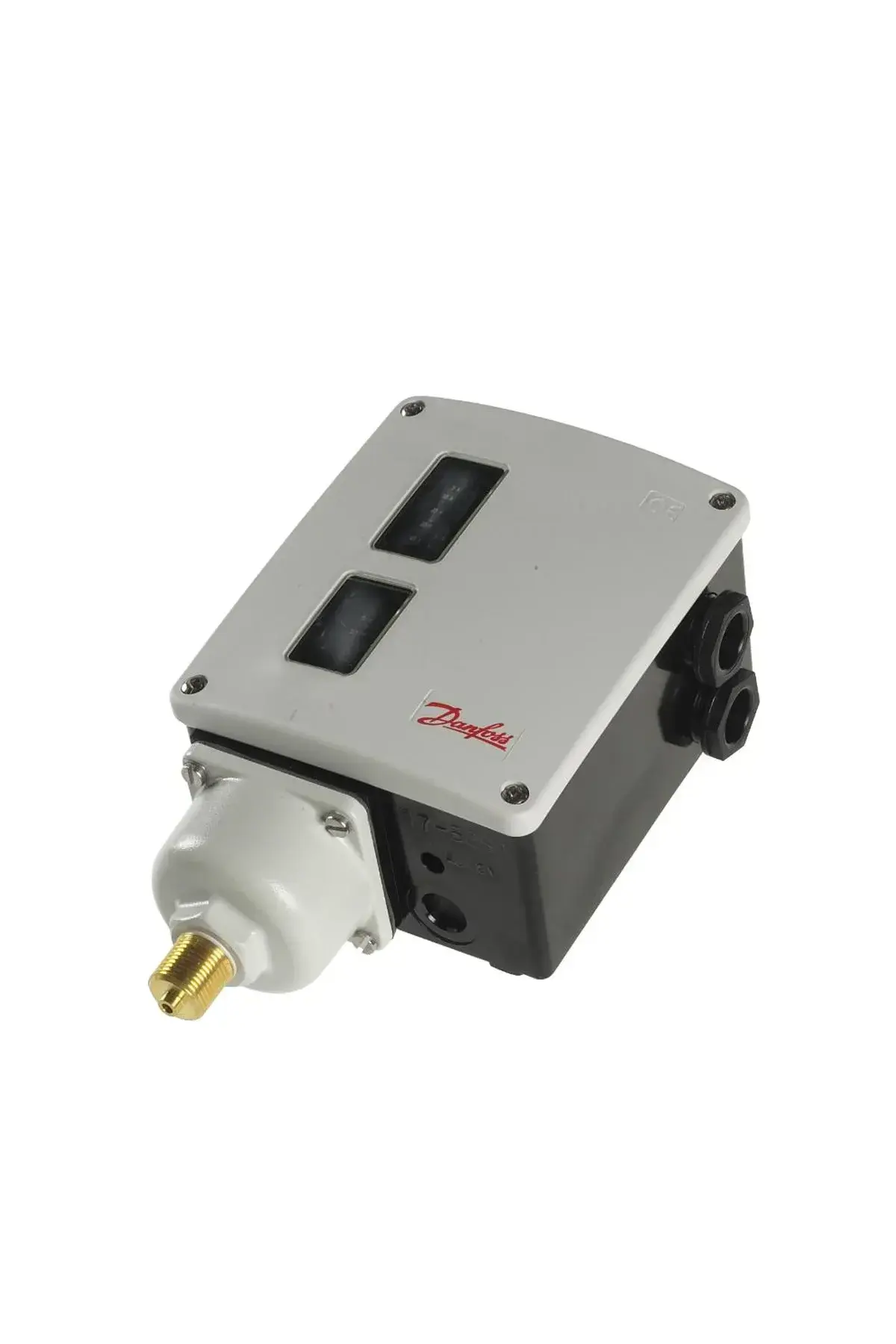

Type: RT116 Pressure Switch
UK RoHS compliance: Yes
Product accessories: Switch accessories
Product description: Pressure switch
Product group: Switches and thermostats
