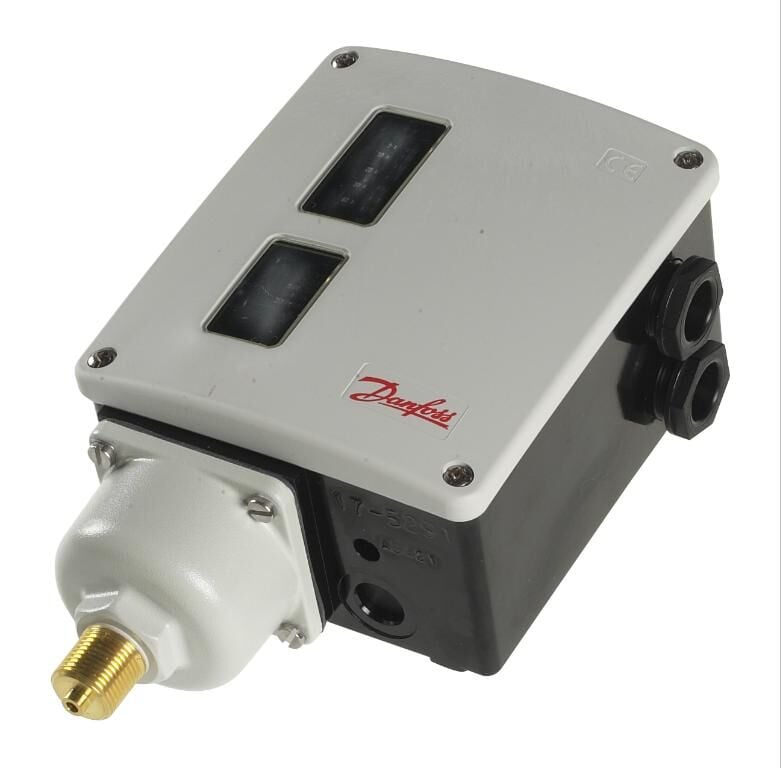

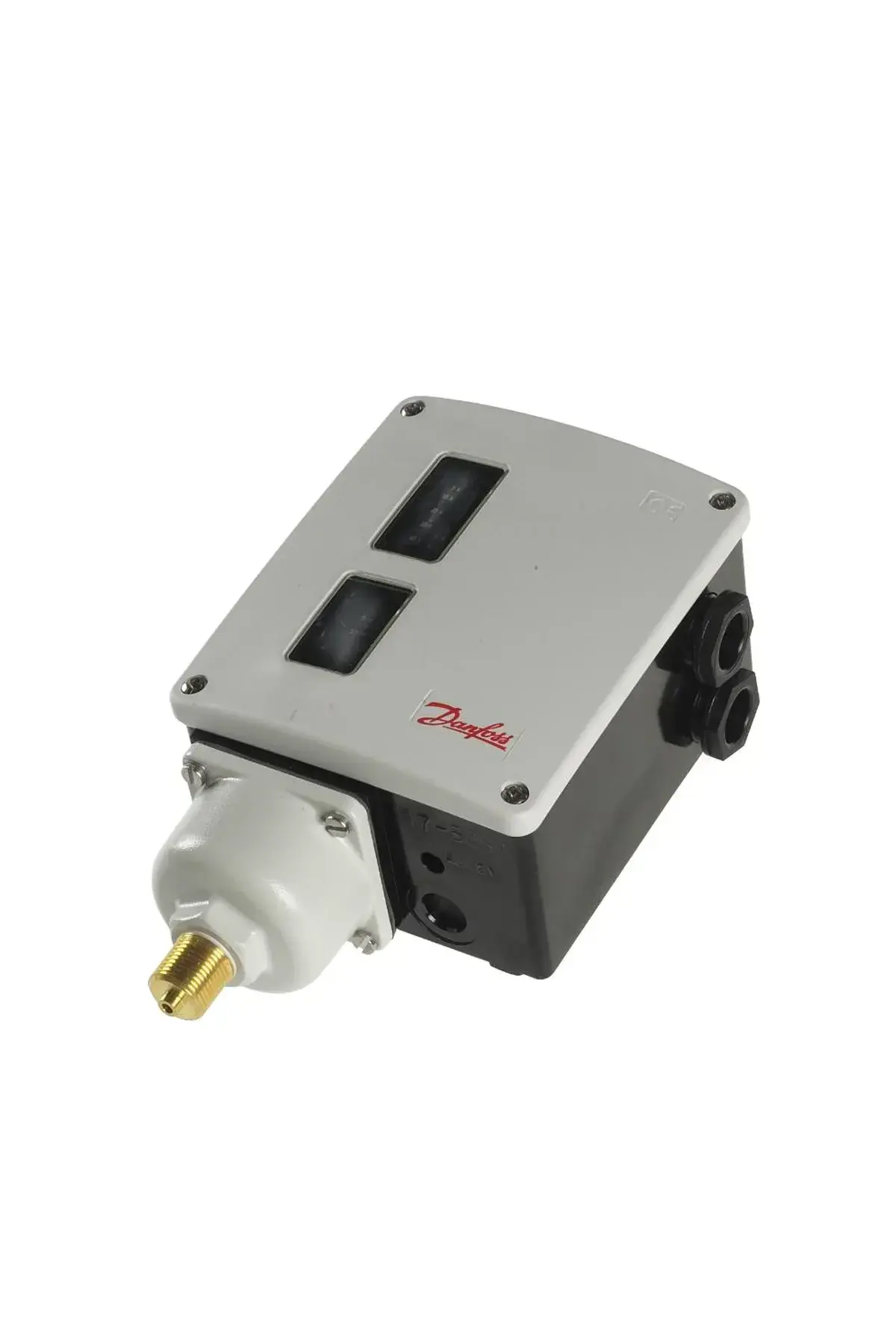

Danfoss RT112 Pressure Switch 0.1–1.1 Bar

anfoss RT112 0.1–1.1 Bar Pressure Switch

Gross weight: 0.984 kg
Net weight: 0.874 kg

Pressure Switch

Volume: 3.748 Liters
EAN: 5702423118854

Pressure Switch Specifications:

• Pressure sensing element: Bellows

• Pressure connection size: 3/8

• Pressure connection standard: ISO 228-1

• Pressure connection type: G

• Pressure Male/Female: Male

• China RoHS compliance: Yes

• EEE category: 5 small equipment (any external dimension ≤50 cm)

Electrical connection:

• Type: Screw cable entry

• Size: 2×Pg 13.5

• Male/Female: Female

• Standard: DIN 40430

• Electrical characteristics standard: EN 60947-4/-5

• EN 60947 Electrical properties:

  • Insulation: 400 V

  • Pollution degree: 3

  • Rated impulse voltage: 4 kV

  • Short-circuit protection, fuse: 10 A

• Cable specifications:

  • Cord with ferrule: 0.2–1.5 mm²

  • Cord without ferrule: 0.2–2.5 mm²

  • Solid/stranded: 0.2–2.5 mm²

• EU RoHS compliance: Yes

• EU RoHS exemption clause: No

Differential (ΔP):

• Max: 0.16 bar (2.3 psi)

• Min: 0.07 bar (1 psi)

• WEEE scope: Yes

• WEEE with batteries: No

Contact ratings:

• AC15: 3 A, 400 V

• AC1: 10 A, 400 V

• AC3: 4 A, 400 V

• DC13: 12 W, 220 V

• LR: 28 A, 400 V

Pressure Switch Features:

• Contact function: SPDT

• Protection class: IP66

• Max test pressure: 8 bar (116 psig)

• Max operating pressure: 7 bar (100 psig)

Certifications: BV, CCC, CE, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, China RoHS, TYSK, UKCA

Ambient temperature range:

• Max: 70 °C (158 °F)

• Min: -50 °C (-58 °F)

Product description: Pressure switch

• REACH candidate substances: Lead (CAS no. 7439-92-1)

• Regulation range: 0.1–1.1 bar (1.5–16 psig)

• Reset function: Automatic

• Type: RT112

• UK RoHS compliance: Yes

• Identical product: 017-519166

• Accessories: Switch accessories

• Product group: Switches and thermostats
