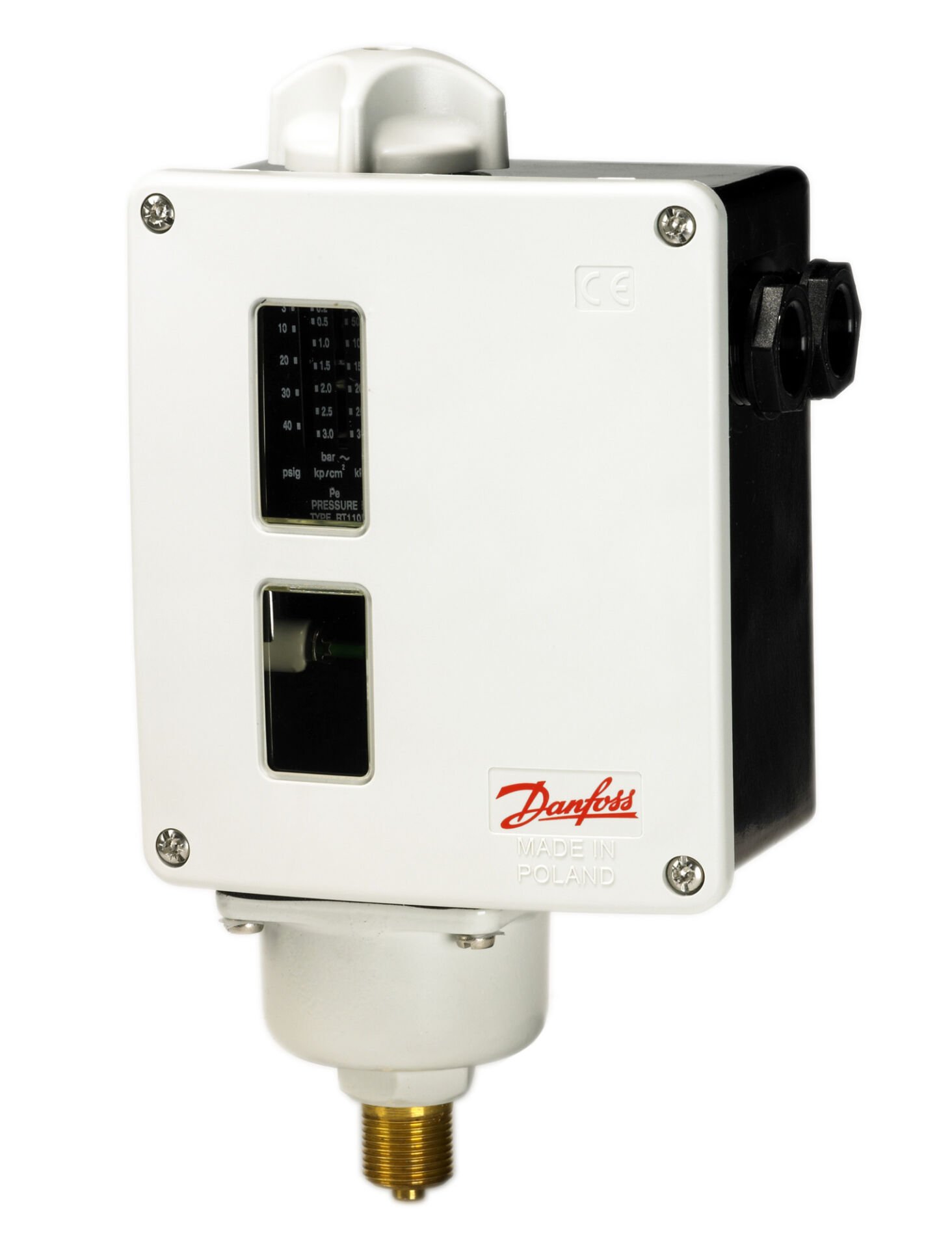

Danfoss RT110 0.2–3 Bar Pressure Switch
Danfoss RT110 0.2–3 Bar Pressure Switch
Gross Weight: 0.982 kg
Net Weight: 0.896 kg
Pressure Switch
Volume: 2.773 L
EAN: 5702423121328
Pressure Switch
Pressure Sensing Element: Bellows
Pressure Connection Size: 3/8
Pressure Connection Standard: ISO 228-1
Pressure Connection Type: G
Pressure Gender: Male
China RoHS Compliance: Yes
Contact Rating @ 250K cycles:
-
AC15 = 1 A, 400 V
-
AC1 = 10 A, 400 V
-
AC3 = 2 A, 400 V
-
DC13 = 12 W, 220 V
-
LR = 14 A, 400 V
EEE Category: 5 small equipment (any external dimension ≤50 cm)
Electrical Connection: Screw cable entry
Electrical Connection Size: 2×Pg 13.5
Electrical Connection Gender: Female
Electrical Connection Standard: DIN 40430
Electrical Characteristics Standard: EN 60947-4/-5
EN 60947 Electrical Features:
-
Insulation: 400 V
-
Pollution Degree: 3
-
Nominal Impulse Voltage: 4 kV
-
Short-Circuit Protection (Fuse): 10 A
EN 60947 Cable Specifications:
-
Stranded with ferrules: 0.2–1.5 mm²
-
Stranded without ferrules: 0.2–2.5 mm²
-
Solid: 0.2–2.5 mm²
EU RoHS Compliance: Yes
EU RoHS Exemption Clause: No
Differential Pressure:
-
Max: 0.25 bar (3.6 psi)
-
Min: 0.08 bar (1.2 psi)
In Scope of WEEE: Yes
In Scope of WEEE (contains batteries): No
Pressure Switch
Category: IV
Contact Rating:
-
AC15 = 3 A, 400 V
-
AC1 = 10 A, 400 V
-
AC3 = 4 A, 400 V
-
DC13 = 12 W, 220 V
-
LR = 28 A, 400 V
Contact Function: SPDT
Protection Class: IP66
Maximum Test Pressure: 8 bar (116 psig)
Maximum Operating Pressure: 7 bar (100 psig)
Approvals: BV, CCC, CE, DNV, EAC, GL, KR, LLC CDC EURO-TYSK, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, China RoHS, TYSK, UKCA
Ambient Temperature Range:
-
Max: 70 °C (158 °F)
-
Min: -50 °C (-58 °F)
Product Description: Pressure Switch
REACH Candidate Substance: Lead (CAS no. 7439-92-1)
Regulation Range:
-
Max: 3 bar (43.5 psig)
-
Min: 0.2 bar (2.9 psig)
Reset Function: Automatic
SCIP File No.: 54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Type: RT110
UK RoHS Compliance: Yes
Product Accessories: Switch accessories
Product Group: Switches and Thermostats
