Danfoss RT108 017-506066 PRESOSTAT

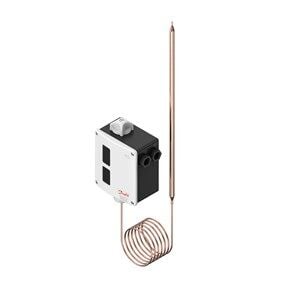

Danfoss RT108 017-506066 Pressure Switch

The Danfoss RT108 017-506066 pressure switch provides reliable temperature control in systems operating between +30 °C and +140 °C. Equipped with an automatic reset function, a remote-sensing capillary tube system, and an SPDT contact configuration, it ensures protection against unwanted overheating and enables circuit opening or closing at specific temperature thresholds.

With its IP66 protection class, the device is resistant to moisture, dust, and splashes, making it suitable for harsh environmental conditions. The 2-meter capillary length offers installation flexibility, allowing temperature measurement from remote locations.

This model is ideal for industrial plants, marine systems, and other critical applications that require high precision, durability, and long service life.

Technical Specifications:

• Gross weight: 1.215 kg

• Net weight: 1.1 kg

• Volume: 6.555 L

• EAN: 5702423119561

• Electrical connection: Screw cable entry, 2×Pg13.5 (female, DIN 40430)

• Contact type: SPDT

• Contact rating: AC15=3 A 400 V; AC1=10 A 400 V; DC13=12 W 220 V; LR=28 A 400 V

• Reset function: Automatic

• Capillary tube length: 2000 mm

• Sensor type: Remote thermometer, Ø 9.5 mm × 410 mm

• Adjustable differential: 4–20 °C (depending on setting range)

• Protection class: IP66

• Maximum sensor temperature: 220 °C

• Operating ambient temperature: −50 °C to +70 °C

• Temperature range: +30 °C to +140 °C

• Approvals: CE, UKCA, EAC, CCC, RoHS, RMRS, PZH, LVD, NKK, TYSK, etc.

Product Group: Switches and Thermostats
Product Description: Thermostat
