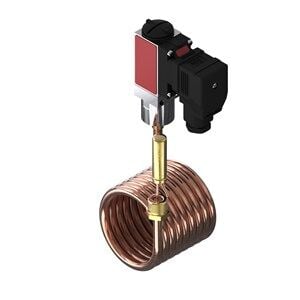

Danfoss MBC8100 061B814866 Thermostat
THERMOSTAT
Gross Weight: 0.774 kg
Net Weight: 0.5 kg
Volume: 3.342 Liter
EAN: 5702423228737
THERMOSTAT SPECIFICATIONS
-
Serviceable: Yes
-
China RoHS Compliance: Yes
-
Equipment: Armored capillary tube
-
Electrical Connection: DIN plug
-
Electrical Connection Size: Pg 13.5
-
Electrical Connection Gender: Female
-
Electrical Connection Standard: EN 175301-803-A
-
Electrical Feature Standard: EN 60947-5
-
EU RoHS Compliance: Out of scope
-
Differential (FS) [K]: 6 K
-
Differential Type: Fixed (max. value)
-
In scope of WEEE and contains batteries: No
-
Capillary Tube Length [mm]: 2000 mm
-
Capillary Tube Length Ratio: 78 3/4 in
-
Contact Rating: AC15=0.5 A, 250 V / DC13=12 W, 125 V
-
Contact Function: SPDT
-
Protection: Yes
-
Protection Class IP: IP65
-
Max. Sensor Temperature [°C]: 250 °C
-
Max. Sensor Temperature [°F]: 482 °F
Approvals:
ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, China RoHS, TYSK, UKCA
Ambient Temperature Range:
-
Max [°C]: 70 °C
-
Min [°C]: -40 °C
-
Max [°F]: 158 °F
-
Min [°F]: -40 °F
Other RoHS Documentation: Saudi Arabia RoHS
Product Name Description: Thermostat
REACH Candidate List Substances: Lead (CAS no. 7439-92-1)
Reset Function: Automatic
SCIP File No.: 78250f8e-5849-44ad-ae3b-a65731351f9b
Sensor Dimensions (Ø x L): 1/2 x 2 in / 13 x 50 mm
Sensor Type: Remote thermometer
Min. Sensor Pocket Length: 2 9/16 in / 65 mm
Temperature Range:
-
Max [°C]: 150 °C
-
Min [°C]: 60 °C
-
Max [°F]: 302 °F
-
Min [°F]: 140 °F
Type: MBC 8100
UK RoHS Compliance: Out of scope
Socket or Tube Connection: M 18 x 1.5
Load Type: Adsorption
Feature Description: 2631-2A02000
Product Accessories: Switch accessories
Product Description: Thermostat
Product Group: Switches and thermostats
